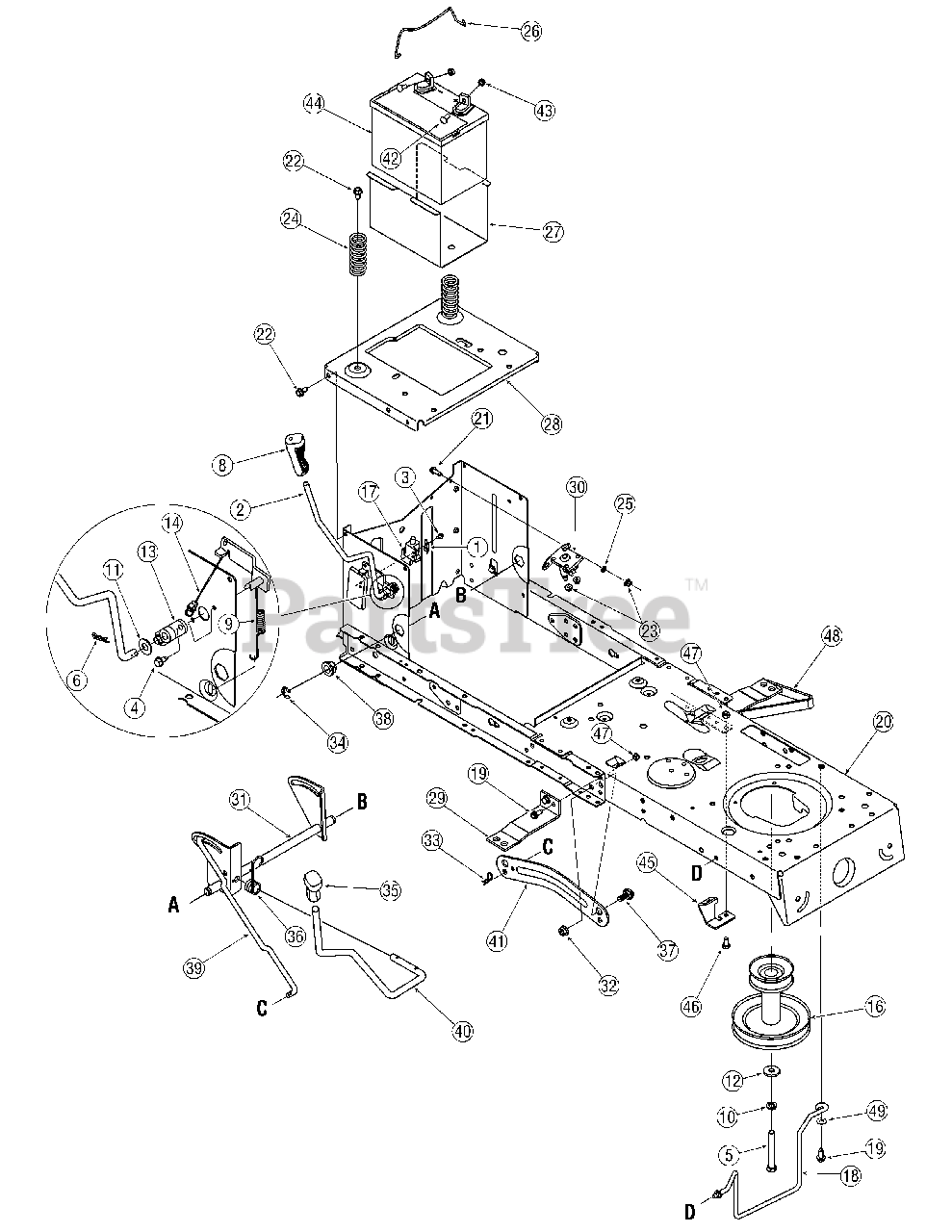

LT-542 H (13A2791G790) - White Outdoor 42" Lawn Tractor (2006) PTO and Controls Parts Diagram

42" Lawn Tractor

PTO and Controls Parts Diagram

  • Title

1

White Outdoor 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

2

White Outdoor 647-04040

Handle Asswmbly, PTO
(Superseded to 647-04096A)

Variations

White Outdoor 647-04040-0637

PTO Handle Assembly, LT - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 647-04040-0638

PTO Handle Assembly, LT - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 647-04040-0650

PTO Handle Assembly, LT - RED METALLIC (0650)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 647-04040-0665

PTO Handle Assembly, LT - YARDMAN GREEN (0665)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 647-04040-0709

PTO Handle Assembly, LT - MASTERCRAFT GREEN (0709)

$41.99

$

In Stock, only 1 left!

0

$41.99

$

In Stock, only 1 left!

0

3

White Outdoor 710-0224

Screw, #10-16, 0.500
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

4

White Outdoor 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-3157

Screw, 7/16-20, 3.25, Gr5
(Superseded to 710-3157A)

$10.99

$

In Stock, only 1 left!

0

6

White Outdoor 714-0104

Pin, Cotter, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 714-0145

Pin, Click, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 720-04049

Grip, Handle, 3/8
(Superseded to 720-04049A)

$16.99

$

Usually ships in 3-6 days

0

9

White Outdoor 732-04276

Spring, Extension
(Superseded to 732-04276A)

$9.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

11

White Outdoor 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

13

White Outdoor 741-04119

Bearing, PTO
(Superseded to 741-04119A)

$4.99

$

In Stock, Qty 18

0

14

White Outdoor 746-04173A

Cable, Deck Engagement
(Superseded to 946-04173E)

$59.99

$

In Stock, only 4 left!

0

16

White Outdoor 756-04195

Engine Pulley, 3.56 x 6.12 Dia. Hydro
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

17

White Outdoor 725-04039

Switch, Interlock
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

18

White Outdoor 747-04332

Rod, Belt Keeper (38-inch Deck)
(Superseded to 747-04332A)

$48.99

$

In Stock, Qty 8

0

18

White Outdoor 747-04307

Rod, Belt Keeper (42-inch Deck)
(Superseded to 747-04857)

$22.99

$

In Stock, Qty 14

0

19

White Outdoor 710-1260A

Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 683-04163A

Frame Assembly
(Superseded to 683-04649)

Variations

White Outdoor 683-04163A-0637

USE 683-04163B-0637 FRAME ASM - POWDER BLACK (0637)

$159.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04163A-0638

FRAME ASSY:RIDER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-04163A-0650

FRAME ASSY:RIDER - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-04163A-0665

USE 683-04163B-0665 FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-04163A-0709

USE 683-04163B-0709 FRAME ASM - MASTERCRAFT GREEN (0709)

$

$

Not available

$159.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 732-04035

Spring, Compression, 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

25

White Outdoor 736-0222

Washer, Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

26

White Outdoor 747-04385

Hold Down Rod, Battery
(Superseded to 747-04385-0637)

Variations

White Outdoor 747-04385-0637

ROD:HOLD DOWN BATT - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-04869

Battery Bracket

Variations

White Outdoor 783-04869-0637

Battery Bracket, LH - POWDER BLACK (0637)

$9.49

$

In Stock, Qty 20+

0

White Outdoor 783-04869-4008

Battery Bracket, LH - WINE RED (4008)

$9.49

$

In Stock, Qty 20+

0

$9.49

$

In Stock, Qty 20+

0

28

White Outdoor 783-04548A

Seat Bracket, Frame
(Superseded to 783-04548D-0637)

Variations

White Outdoor 783-04548A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

29

White Outdoor 783-04637

RH Bracket, Runing Board

Variations

White Outdoor 783-04637-0637

BRACKET-RUNNING BOARD - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0606

BRACKET-RUNNING BOARD - MAJESTIC ORANGE (0606)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0638

BRACKET-RUNNING BOARD - MTD/TROY-BILT RED (0638)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0691

BRACKET-RUNNING BOARD - BLACK JACK (0691)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04637-0709

BRACKET-RUNNING BOARD - MASTERCRAFT GREEN (0709)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

30

White Outdoor 725-1426A

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

31

White Outdoor 683-04155

Shaft Assembly, Lift
(Superseded to 683-04155A-0637)

Variations

White Outdoor 683-04155-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

32

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 714-04043

Bow Tie Cotter Pin

$4.99

$

In Stock, Qty 20+

0

34

White Outdoor 716-0106A

Ring, E-Type, .625 Dia.

$5.49

$

In Stock, only 2 left!

0

35

White Outdoor 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 2 left!

0

36

White Outdoor 732-04225

Spring, Torsion

$12.99

$

Usually ships in 3-6 days

0

37

White Outdoor 738-04130

Screw, Shoulder, .625 x .175, 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

38

White Outdoor 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

39

White Outdoor 747-04393

Rod, Lift

$23.99

$

In Stock, Qty 7

0

40

White Outdoor 747-04282

Deck Handle, Lift

$35.99

$

Usually ships in 3-6 days

0

41

White Outdoor 783-04494

RH Lift Arm, Deck
(Superseded to 783-04494C)

Variations

White Outdoor 783-04494-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

White Outdoor 783-04494-4008

ARM-DECK LIFT RH - WINE RED (4008)

$21.99

$

In Stock, only 1 left!

0

$20.99

$

Usually ships in 3-6 days

0

41

White Outdoor 783-04711

LH Lift Arm, Deck

Variations

White Outdoor 783-04711-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04711-4008

ARM-DECK LIFT LH - WINE RED (4008)

$24.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-0703

Screw, Carriage, 1/4-20, .75, Gr5

$4.49

$

In Stock, Qty 15

0

43

White Outdoor 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

44

White Outdoor 725-1737A

Battery, 190 CCA (Single Cylinder Engine)
(Superseded to 925-1707D)

$

$

Not available

44

White Outdoor 725-1706A

Battery, 270 CCA (Twin Cylinder Engine)
(Superseded to 925-1707D)

$

$

Not available

45

White Outdoor 783-04753

Support Bracket, Frame

Variations

White Outdoor 783-04753-0637

BRACKET:SUPPORT:FR - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0606

BRACKET:SUPPORT:FR - MAJESTIC ORANGE (0606)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0638

BRACKET:SUPPORT:FR - MTD/TROY-BILT RED (0638)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0709

BRACKET:SUPPORT:FR - MASTERCRAFT GREEN (0709)

$69.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04753-0691

BRACKET:SUPPORT:FR - BLACK JACK (0691)

$

$

Not available

$69.99

$

Usually ships in 3-6 days

0

46

White Outdoor 710-3025

Screw, 5/16-18, 0.625, Gr5

$3.99

$

In Stock, Qty 8

0

47

White Outdoor 712-0429

Nut, Hex Lock, 5/16-18, Nylon

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 683-04195

LH Bracket, Runing Board

Variations

White Outdoor 683-04195-0606

BRACKET, RUNNING BOARD - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0637

BRACKET, RUNNING BOARD - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0638

BRACKET, RUNNING BOARD - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0691

BRACKET, RUNNING BOARD - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04195-0709

BRACKET, RUNNING BOARD - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0
