LT-542 H (13A2791G790) - White Outdoor 42" Lawn Tractor (2006) Fender and Seat Assembly Parts Diagram

42" Lawn Tractor

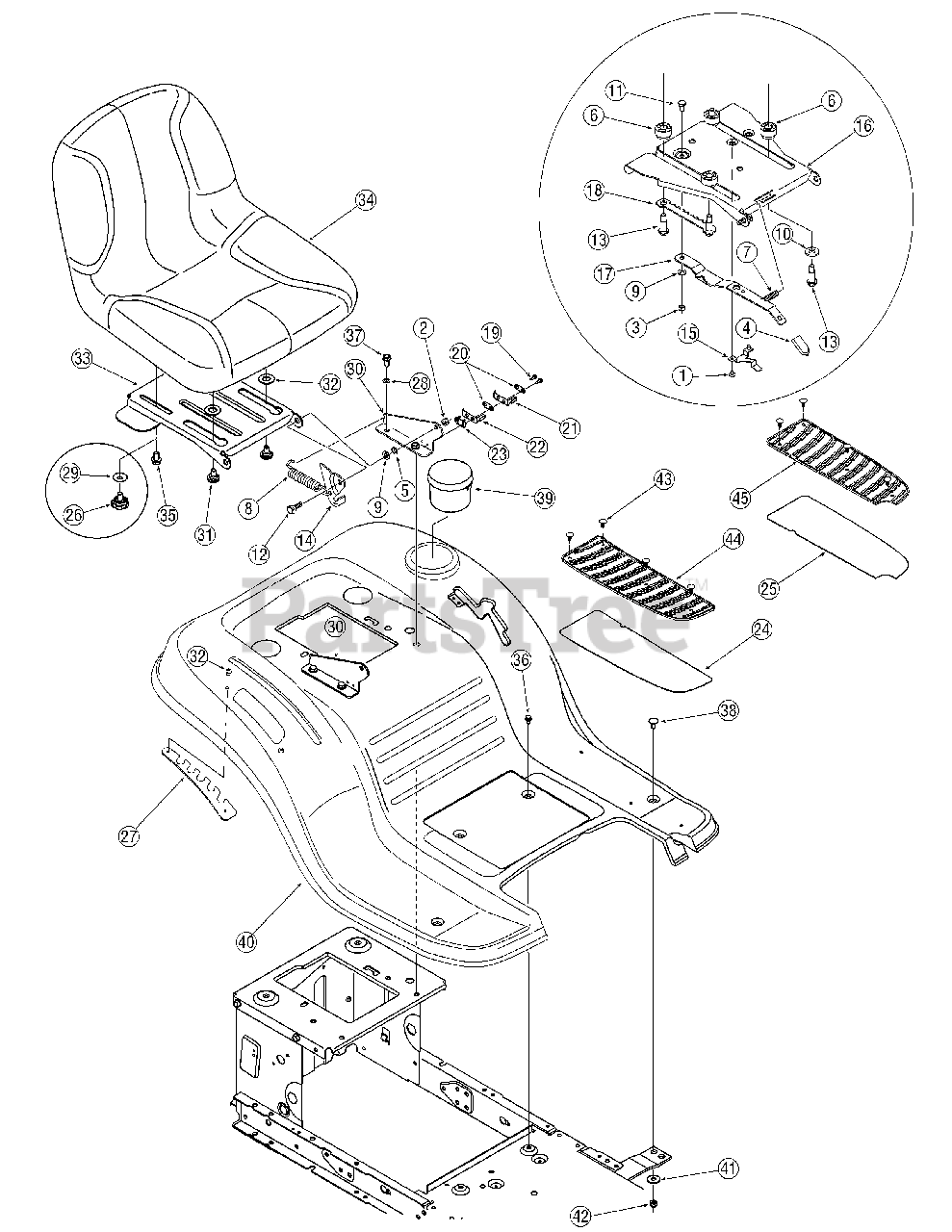

Fender and Seat Assembly Parts Diagram

  • Title

1

White Outdoor 710-1268

Screw, #10-16, .375

$4.49

$

In Stock, only 2 left!

0

2

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

5

White Outdoor 726-0201

Nut, Speed, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

7

White Outdoor 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

8

White Outdoor 732-1184

Spring, Extension, .84 Dia. x 4.6

$11.99

$

In Stock, only 1 left!

0

9

White Outdoor 736-0275

Wash, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-3019

Wash, Flat, .531x 1.062 x.134

$5.99

$

In Stock, Qty 11

0

11

White Outdoor 738-0137A

Screw, Shoulder, .340 x .285,1/4-20

$10.99

$

In Stock, Qty 10

0

12

White Outdoor 738-0296

Screw, Shoulder, .437 x .268, 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 738-0966

Screw, Shoulder, .50 x .925, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

14

683-0209D

Seat Bracket, Lift

$

$

Not available

15

White Outdoor 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

16

White Outdoor 783-0738B

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

White Outdoor 783-0738B-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0738B-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0738B-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0738B-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0738B-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

17

White Outdoor 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

White Outdoor 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

White Outdoor 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

19

White Outdoor 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 15

0

20

White Outdoor 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

21

White Outdoor 725-1303

Spring Switch, Inner
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

22

White Outdoor 725-1439

Spring Switch, Outer

$8.49

$

In Stock, Qty 8

0

23

White Outdoor 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

24

White Outdoor 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

25

White Outdoor 723-04026

Foot Pad, Abrasive, LH

$33.99

$

In Stock, only 1 left!

0

26

White Outdoor 720-04009

Knob, 3/8-16, .625
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

27

White Outdoor 783-04843

Lift Adjustment Bracket

Variations

White Outdoor 783-04843-0637

Lift Adjust Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0606

BRACKET:LIFT:ADJ - MAJESTIC ORANGE (0606)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0638

BRACKET:LIFT:ADJ - MTD/TROY-BILT RED (0638)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0691

BRACKET:LIFT:ADJ - BLACK JACK (0691)

$32.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0709

BRACKET:LIFT:ADJ - MASTERCRAFT GREEN (0709)

$29.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-4044

BRACKET:LIFT:ADJ - CRAFTSMAN RED (4044)

$37.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

28

White Outdoor 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 736-0101

Washer, Flat, .406 x 1.00 x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

30

White Outdoor 783-1489B

Mounting Bracket, Seat
(Superseded to 783-1489C)

Variations

White Outdoor 783-1489B-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489B-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489B-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489B-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489B-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

31

White Outdoor 738-04012A

Screw, Shoulder, .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

32

White Outdoor 710-04483

Screw 1/4-20, 0.500

$6.99

$

Usually ships in 3-6 days

0

33

White Outdoor 783-04081A

Pivot Bracket, Seat

Variations

White Outdoor 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081A-4008

BRACKET-SEAT PIVOT - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

34

White Outdoor 757-04021A

Seat, Low Back
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

34

White Outdoor 757-04020A

Seat, Medium Back
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

35

White Outdoor 710-0870

Screw, 3/8-16, .625

$6.49

$

In Stock, only 1 left!

0

36

White Outdoor 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-04482

Screw, Carriage, 3/8-16, .875 Gr5 STD

$4.49

$

In Stock, Qty 16

0

39

White Outdoor 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

40

White Outdoor 783-04593B

Fender, Hydro
(Superseded to 783-04593F)

Variations

White Outdoor 783-04593B-0606

FENDER-HYDRO - MAJESTIC ORANGE (0606)

$325.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593B-0638

FENDER-HYDRO - MTD/TROY-BILT RED (0638)

$402.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593B-0650

FENDER-HYDRO - RED METALLIC (0650)

$325.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593B-0665

FENDER-HYDRO - YARDMAN GREEN (0665)

$325.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593B-0691

FENDER-HYDRO - BLACK JACK (0691)

$402.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593B-0483

FENDER-HYDRO - CHARCOAL GRAY (0483)

$

$

Not available

$325.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, only 4 left!

0

42

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

44

White Outdoor 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

45

White Outdoor 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0
