LT-542 H (13A2791G790) - White Outdoor 42" Lawn Tractor (2006) Deck Assembly 42 inch Parts Diagram

42" Lawn Tractor

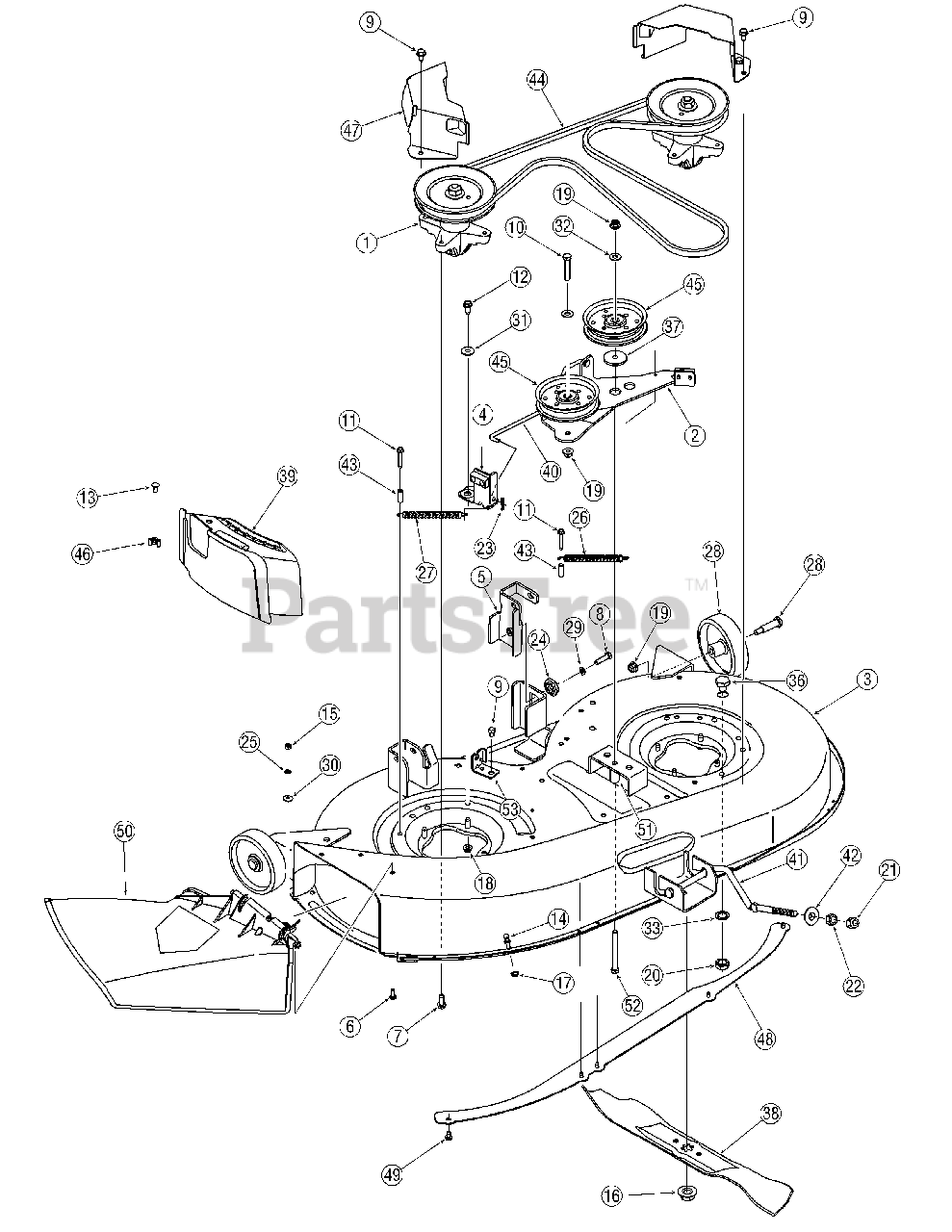

Deck Assembly 42 inch Parts Diagram

  • Title

1

White Outdoor 918-0624

Spindle Assembly, Pul, 6.23" Dia
(Superseded to 918-0624B)

$149.99

$

In Stock, Qty 6

0

1

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

White Outdoor 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

1

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

White Outdoor 748-0433

Spacer:.820 x 1.150 x .730

Note: Not shown

$5.99

$

In Stock, Qty 5

0

1

White Outdoor 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

White Outdoor 956-1227

Deck Pulley:6.3 Dia

Note: Not shown

$26.99

$

In Stock, only 4 left!

0

2

White Outdoor 683-04138

Brake Assembly, Deck
(Superseded to 683P04138C)

Variations

White Outdoor 683-04138-0637

Brake Assembly, 42 - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04138-0665

USE 683-04138B-0665 BRAKE ASM - YARDMAN GREEN (0665)

$117.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

3

White Outdoor 683-04162

Deck Shell, 42" (w/ Wheel Brackets)
(Superseded to 983-04162A)

Variations

White Outdoor 683-04162-0637

DECK SHELL 42" POWDER BLACK - POWDER BLACK (0637)

$724.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0638

DECK ASSEMBLY 42" RED - MTD/TROY-BILT RED (0638)

$724.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0650

DECK SHELL 42" RED - RED METALLIC (0650)

$586.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0709

DECK ASSEMBLY 42" GREEN - MASTERCRAFT GREEN (0709)

$627.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0665

DECK ASSY SD 42" W/WHEEL BRKT - YARDMAN GREEN (0665)

$

$

Not available

$586.99

$

Usually ships in 3-6 days

0

3

White Outdoor 683-04165

Deck Shell, 42" (w/o Wheel Brackets)
(Superseded to 983-04165A)

Variations

White Outdoor 683-04165-0637

DECK SHELL 42" W/OWHEELS BLACK - POWDER BLACK (0637)

$677.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04165-0665

DECK ASSEMBLY 42" GREEN - YARDMAN GREEN (0665)

$677.99

$

Usually ships in 3-6 days

0

$630.99

$

Usually ships in 3-6 days

0

4

White Outdoor 683-04167

Brake Assembly, Deck
(Superseded to 983-04167)

Variations

White Outdoor 683-04167-0637

Deck Brake Assembly 42" - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

White Outdoor 683-04167-0665

Deck Brake Assembly 42" - YARDMAN GREEN (0665)

$47.99

$

In Stock, only 2 left!

0

$47.99

$

In Stock, only 2 left!

0

5

White Outdoor 683-0254B

Bracket Assembly, Deck, Hanger LH

Variations

White Outdoor 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254B-4008

BRACKET ASSY-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-0709

BRACKET ASSY-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254B-4028

BRACKET ASSY-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-3015

Screw, 1/4-20, .750, Gr5

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0650

Screw, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0817

Screw, 5/16-18, 1.250

$6.99

$

In Stock, Qty 15

0

9

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3144

Screw, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0778

Screw, 1/4-20, 1.500

$4.49

$

In Stock, only 1 left!

0

12

White Outdoor 710-3008

Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0134

Carriage Screw, , 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 711-04069

Pin, Grasscatcher, 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

16

White Outdoor 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, GrF, Nylon

$3.99

$

In Stock, Qty 5

0

19

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

21

White Outdoor 712-3083

Nut, Hex Lock, 1/2-13, Gr8, Nylon

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0206

Nut, Hex, 1/2-13, Gr5

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 714-0104

Pin, Cot, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 717-04074

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

25

White Outdoor 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 732-0308A

Spring, Extension, .50 Dia. x 6.37

$11.99

$

In Stock, only 2 left!

0

27

White Outdoor 732-04287

Spring, Extension, .50 Dia. x 6.375

$15.99

$

In Stock, only 1 left!

0

28

White Outdoor 734-0973

Wheel, Deck 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

29

White Outdoor 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0270

Washer, Bell, .265 x.75 x .062

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0289

Bushing, Shoulder, .320 ID x .135
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

32

White Outdoor 736-0267

Washer, Flat, .385 x .87 x .06

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0225

Washer, Lock, 5/8, Internal Tooth

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor 736-0187

Washer, Flat, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 738-0373

Screw, Shoulder, .498 x 1.53, 3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

36

White Outdoor 738-04146

Plug, Screw, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

37

White Outdoor 738-04162A

Spacer, Shoulder, .8540 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

38

White Outdoor 742-0616A

Blade, 21.23", Star 3-in-1
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

39

White Outdoor 731-2363

Mulch Plug

$29.99

$

In Stock, only 4 left!

0

40

White Outdoor 747-04379

Control Rod, Brake
(Superseded to 747-04379A)

$21.99

$

In Stock, only 3 left!

0

41

White Outdoor 747-04269A

Deck Rod, Front Adjustable

$27.99

$

In Stock, only 4 left!

0

42

White Outdoor 748-04069

Pivot Cup, Deck Lift
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

43

White Outdoor 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

44

White Outdoor 754-04060B

Belt, V-Type
(Superseded to 954-04060C)

$50.99

$

In Stock, Qty 10

0

45

White Outdoor 756-04129

Idler Pulley, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

46

White Outdoor 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 783-04327

Cover, Belt, 6.00 Dia.
(Superseded to 783-04327B)

Variations

White Outdoor 783-04327-0637

Belt Cover, Black 6.00 Dia - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0638

Belt Cover, 6.00 Dia - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0650

Belt Cover, 6.00 Dia - RED METALLIC (0650)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0665

COVER-BELT:6.00 DI - YARDMAN GREEN (0665)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04327-0709

COVER-BELT:6.00 DI - MASTERCRAFT GREEN (0709)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327-0716

Belt Cover, 6.00 Dia - CUB YELLOW-99 (0716)

$24.99

$

In Stock, Qty 20+

0

$23.99

$

Usually ships in 3-6 days

0

48

White Outdoor 783-1146A

Deck Skirt
(Superseded to 753-0884)

Variations

White Outdoor 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

49

White Outdoor 710-0599

Screw, 1/4-20, .500

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 731-1032B

Chute Assembly, Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

51

White Outdoor 750-04446

Spacer, 1.46"

$6.99

$

In Stock, Qty 6

0

52

White Outdoor 710-3085

Screw, 3/8-16, 3.50, Gr5

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 783-04740

BRACKET,CABLE, DECK

Variations

White Outdoor 783-04740-0637

Deck Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 2 left!

0

White Outdoor 783-04740-0606

Deck Cable Bracket - MAJESTIC ORANGE (0606)

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-0638

BRACKET:CABLE:DECK - MTD/TROY-BILT RED (0638)

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-0665

BRACKET:CABLE:DECK - YARDMAN GREEN (0665)

$9.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-4008

BRACKET:CABLE:DECK - WINE RED (4008)

$9.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0
