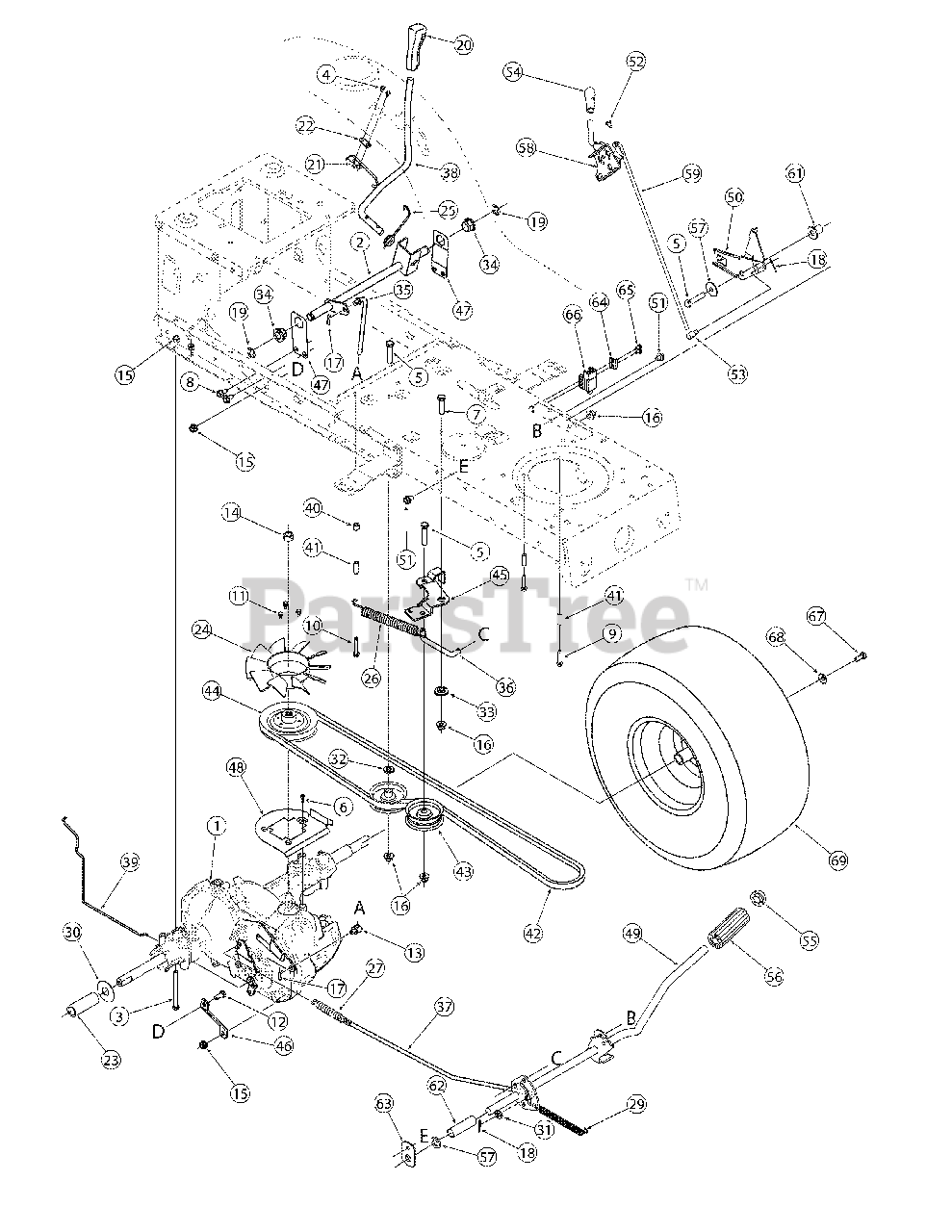

LT-542 H (13A2791G790) - White Outdoor 42" Lawn Tractor (2005) Drive Parts Diagram

42" Lawn Tractor

Drive Parts Diagram

  • Title

1

White Outdoor 918-04198

Transmission Assembly, Hydrostatic

$1109.99

$

Usually ships in 3-6 days

0

2

White Outdoor 647-04038A

Control Assembly, Hydrostatic

$

$

Not available

3

White Outdoor 710-0176

Hex Screw, 5/16-18, 2.75, Gr5,

$4.49

$

In Stock, only 2 left!

0

4

White Outdoor 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 15

0

5

White Outdoor 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0351

Screw, B, #10-16, 0.500

$4.49

$

In Stock, only 2 left!

0

7

White Outdoor 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0809

Screw, 1/4-20, 1.250

$6.99

$

In Stock, Qty 19

0

10

White Outdoor 710-1325

Screw, 1/4-20, 1.625

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 710-3007

Screw, #12-24, 0.375

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-3008

Hex Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 911-0677

Ferrule, 5/16-18 x .312 Dia.

$17.99

$

In Stock, only 4 left!

0

14

White Outdoor 912-0239

Nut, Hex Lock, 1/2-20, Gra
(Superseded to 712-0239)

$

$

Not available

15

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 914-0104

Pin, Cotter, .072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

19

White Outdoor 716-0106A

Ring, E-Type, .625 Dia.

$5.49

$

In Stock, only 2 left!

0

20

White Outdoor 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 2 left!

0

21

White Outdoor 725-04249

Spring Switch, Hydro

$10.99

$

Usually ships in 3-6 days

0

22

White Outdoor 926-0320

Plate, Insulator Nut

$6.99

$

In Stock, Qty 9

0

23

White Outdoor 731-04682

Sleeve, .758 x .821 x 1.50

$

$

Not available

24

White Outdoor 931-1449A

Fan, 10"

$35.99

$

In Stock, Qty 9

0

25

White Outdoor 732-04225

Spring, Torsion

$12.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-04229

Spring, Extension, .75 OD x 6.02

$20.99

$

Usually ships in 3-6 days

0

27

White Outdoor 732-0716D

Spring, Extension, .59 OD x 4.00

$13.99

$

In Stock, only 2 left!

0

28

White Outdoor 732-0729

Ring, Wire

Note: Not Shown

$4.99

$

In Stock, Qty 5

0

29

White Outdoor 732-0963

Spring, Extension, .50 Dia x 6.37

$9.99

$

In Stock, only 4 left!

0

30

White Outdoor 736-0866

Washer, Flat, .755 x 1.92 x .060

$4.49

$

In Stock, Qty 6

0

31

White Outdoor 936-3008

Washer, Flat, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-3010

Washer, Flat, .407x.812x.135

$4.99

$

In Stock, only 2 left!

0

33

White Outdoor 938-0347

Spacer, Shoulder, .625 ID x .169

$10.99

$

Usually ships in 3-6 days

0

34

White Outdoor 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

35

White Outdoor 747-04052

Control Rod, Hydrostatic

$

$

Not available

36

White Outdoor 747-04283A

Declutching Rod
(Superseded to 747-04283B)

$

$

Not available

37

White Outdoor 747-04286

Brake Rod, Hydrostatic

$

$

Not available

38

White Outdoor 747-04296

Control Handle, Hydrostatic
(Superseded to 747-04296A)

$41.99

$

Usually ships in 3-6 days

0

39

White Outdoor 747-04316

Bypass Rod, Hydrostatic

$

$

Not available

40

White Outdoor 750-0555

Spacer, .254 x .50 x .390

$

$

Not available

41

White Outdoor 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

42

White Outdoor 954-04074A

Belt, V-Type

$55.99

$

In Stock, only 1 left!

0

43

White Outdoor 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

44

White Outdoor 756-1166

Pulley, Input, 5.0 OD

$

$

Not available

45

White Outdoor 783-04570-0637

Idler Arm
(Superseded to 783-04570B-0637)

$19.99

$

In Stock, Qty 5

0

46

White Outdoor 783-04579-0637

Bracket, Torque
(Superseded to 783-04579A-0637)

$

$

Not available

47

White Outdoor 783-04585A

Mounting Bracket, Handle

$5.99

$

Usually ships in 3-6 days

0

48

White Outdoor 783-04600A-0637

Bracket, Support

$

$

Not available

49

White Outdoor 647-04034B-0650

Pedal Assembly, Drive
(Superseded to 647-04034E-0650)

$80.99

$

Usually ships in 3-6 days

0

50

White Outdoor 783-04762

Latch Assembly, Engagement
(Superseded to 683-04766-0637)

$12.99

$

Usually ships in 3-6 days

0

51

White Outdoor 710-0607

Screw, 5/16-18, 0.50,

$6.99

$

In Stock, Qty 11

0

52

White Outdoor 710-1017

Screw, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

53

White Outdoor 711-0736

Ferrule 1/4-20

$13.99

$

In Stock, only 2 left!

0

54

White Outdoor 720-04050

Knob

$

$

Not available

55

White Outdoor 726-0214

Push Cap, 5/8

$10.99

$

Usually ships in 3-6 days

0

56

White Outdoor 735-0239

Foot Pad, 4.0
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

57

White Outdoor 736-0162

Washer, Flat, .640 x 1.00 x .120

$4.49

$

In Stock, Qty 14

0

58

White Outdoor 946-04176A

Lever, Parking Brake

$

$

Not available

59

White Outdoor 747-04289

Control Rod

$

$

Not available

60

White Outdoor 750-04294

Spacer, Shldr, .38 x.50 x .15

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

61

White Outdoor 750-04381

Spacer, Flange, .390 x .671 x .95

$

$

Not available

62

White Outdoor 750-0802

Spacer, .640 x .76 x 2.63

$6.99

$

Usually ships in 3-6 days

0

63

White Outdoor 783-04536B-0637

Support Bracket, Pedal

$6.49

$

Usually ships in 3-6 days

0

64

White Outdoor 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

65

White Outdoor 910-0224

Screw, #10-16, 0.500

$3.99

$

In Stock, only 2 left!

0

66

White Outdoor 925-04039

Switch, Interlock

$24.99

$

In Stock, Qty 9

0

67

White Outdoor 710-0627

Screw, 5/16-24, .750, Gr5

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 736-0242

Bell Washer, .34 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 634-0104-0911

Wheel Assembly

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1730-0901

Tire Only, 20 x 8 x 8

$99.99

$

In Stock, only 1 left!

0

White Outdoor 634-0070-0662

Rim Assembly (Inc. bearings, valve stem)
(Superseded to 934-0070-0662)

$165.99

$

Usually ships in 3-6 days

0
