LT-542 G (13A2771G790) - White Outdoor 42" Lawn Tractor (2006) Deck Assembly 42 inch Parts Diagram

42" Lawn Tractor

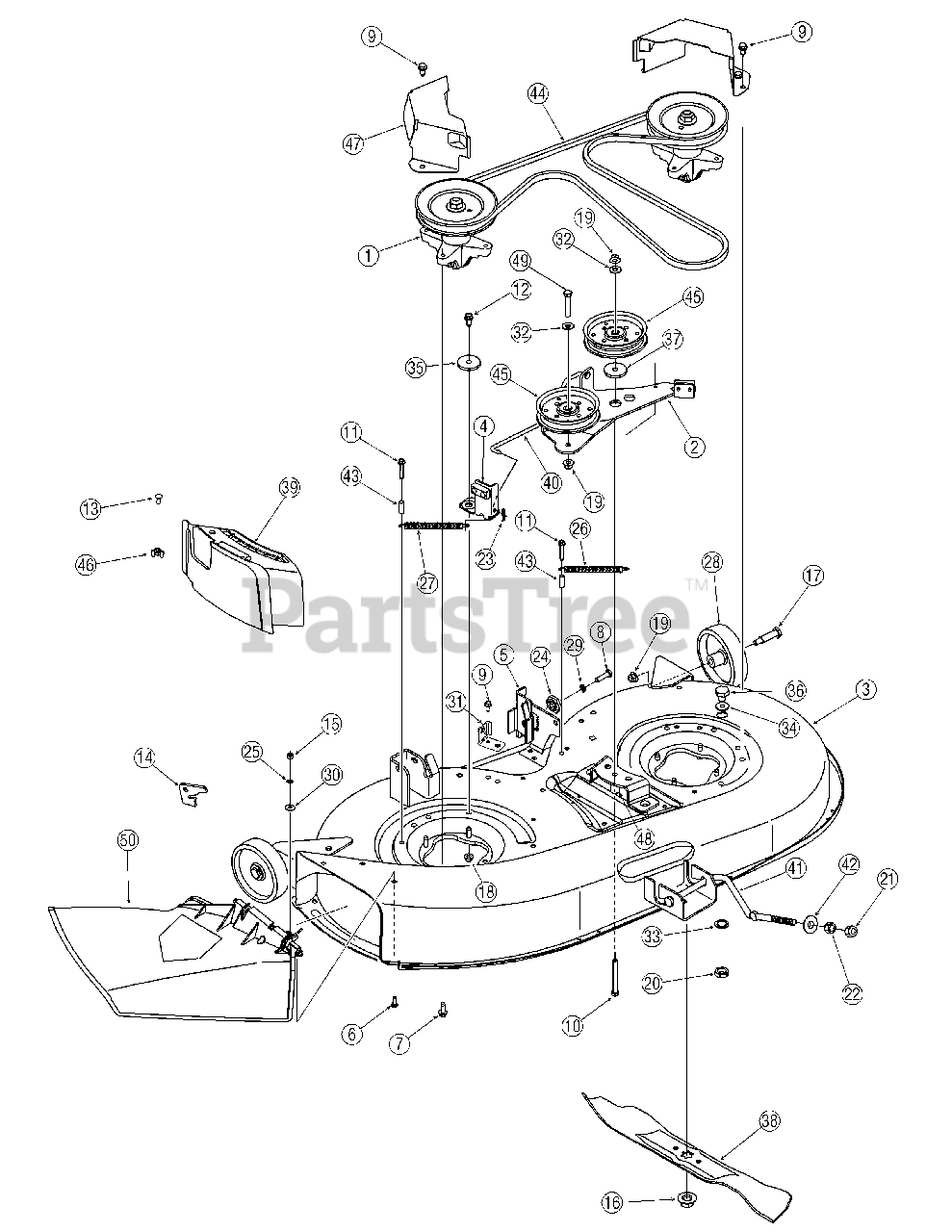

Deck Assembly 42 inch Parts Diagram

  • Title
1

White Outdoor 918-0624

Spindle Assembly, Pul, 6.23"
(Superseded to 918-0624B)

$149.99

$

In Stock, Qty 6

0

1

White Outdoor 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

White Outdoor 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

1

White Outdoor 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

White Outdoor 748-0433

Spacer:.820 x 1.150 x .730

Note: Not shown

$5.99

$

In Stock, Qty 5

0

1

White Outdoor 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

White Outdoor 956-1227

Deck Pulley:6.3 Dia

Note: Not shown

$26.99

$

In Stock, only 4 left!

0

2

White Outdoor 683-04138

Brake Assembly, Deck
(Superseded to 683P04138C)

Variations

White Outdoor 683-04138-0637

Brake Assembly, 42 - POWDER BLACK (0637)

$117.99

$

In Stock, only 1 left!

0

White Outdoor 683-04138-0665

USE 683-04138B-0665 BRAKE ASM - YARDMAN GREEN (0665)

$117.99

$

In Stock, only 1 left!

0

$117.99

$

In Stock, only 1 left!

0

3

White Outdoor 683-04165A

Deck Shell, 42" (w/o Wheel Bracket)
(Superseded to 983-04165A)

$630.99

$

Usually ships in 3-6 days

0

3

White Outdoor 683-04162

Deck Shell, 42" (w/ Wheel Bracket)
(Superseded to 983-04162A)

Variations

White Outdoor 683-04162-0637

DECK SHELL 42" POWDER BLACK - POWDER BLACK (0637)

$724.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0638

DECK ASSEMBLY 42" RED - MTD/TROY-BILT RED (0638)

$724.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0650

DECK SHELL 42" RED - RED METALLIC (0650)

$586.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0709

DECK ASSEMBLY 42" GREEN - MASTERCRAFT GREEN (0709)

$627.99

$

Usually ships in 3-6 days

0

White Outdoor 683-04162-0665

DECK ASSY SD 42" W/WHEEL BRKT - YARDMAN GREEN (0665)

$

$

Not available

$586.99

$

Usually ships in 3-6 days

0

4

White Outdoor 683-04167

Brake Assembly, Deck
(Superseded to 983-04167)

Variations

White Outdoor 683-04167-0637

Deck Brake Assembly 42" - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

White Outdoor 683-04167-0665

Deck Brake Assembly 42" - YARDMAN GREEN (0665)

$47.99

$

In Stock, only 2 left!

0

$47.99

$

In Stock, only 2 left!

0

5

White Outdoor 683-04228

Brkt. Ass’y, Deck, Hanger LH

Variations

White Outdoor 683-04228-0637

Deck Hanger Bracket Assembly - POWDER BLACK (0637)

$104.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-3015

Screw, 1/4-20, .75, Gr5

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0650

Screw, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0528

Screw, 5/16-18, 1.250

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3085

Screw, 3/8-16, 3.50, Gr5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0778

Screw, 1/4-20, 1.500

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-3008

Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0134

Carriage Screw, , 1/4-20 x .62 (if equipped)

$4.49

$

In Stock, Qty 20+

0

14

N/A

Chute Stop

$

$

Not available

15

White Outdoor 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

16

White Outdoor 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

White Outdoor 738-0373

Screw, Shldr, .498 x 1.53, 3/8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

21

White Outdoor 712-3083

Nut, Hex Lock, 1/2-13, Gr8

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0206

Nut, Hex, 1/2-13, Gr5

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 714-0104

Pin, Cot, .072 Dia. x 1.13 LG

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 717-04074

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

25

White Outdoor 726-0233

Nut, Push, .25 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 732-04280A

Spring, Exten. , .75 Dia. X 6.375
(Superseded to 732-04280B)

$8.49

$

In Stock, only 4 left!

0

27

White Outdoor 732-04287

Spring, Exten. , .50 Dia. X 6.375

$15.99

$

In Stock, only 1 left!

0

28

White Outdoor 734-0973

Wheel, Deck 5.0 x 1.38 (if equipped)

$12.99

$

In Stock, Qty 20+

0

29

White Outdoor 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0270

Washer, Bell, .265 x.75 x .062

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 783-04740

Deck Engagement Cable Bracket

Variations

White Outdoor 783-04740-0637

Deck Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 2 left!

0

White Outdoor 783-04740-0606

Deck Cable Bracket - MAJESTIC ORANGE (0606)

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-0638

BRACKET:CABLE:DECK - MTD/TROY-BILT RED (0638)

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-0665

BRACKET:CABLE:DECK - YARDMAN GREEN (0665)

$9.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04740-4008

BRACKET:CABLE:DECK - WINE RED (4008)

$9.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0267

Washer, Flat, .385 x .87 x .06

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0225

Washer, Lock, 5/8, Internal

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor 736-0187

Washer, Flat, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 738-04166

Spacer, Shoulder, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

36

White Outdoor 738-04146

Plug, Screw, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

37

White Outdoor 738-04162A

Spacer, Shoulder, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

38

White Outdoor 742-0616A

Blade, 21.23", Star 3-in-1
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

39

White Outdoor 731-2363

Mulch Plug (if equipped)

$29.99

$

In Stock, only 4 left!

0

40

White Outdoor 747-04379A

Control Rod, Brake

$21.99

$

In Stock, only 3 left!

0

41

White Outdoor 747-04269A

Deck Rod, Front Adjustable

$27.99

$

In Stock, only 4 left!

0

42

White Outdoor 748-04069

Pivot Cup, Deck Lift
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

43

White Outdoor 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

44

White Outdoor 754-04060B

Belt, V-Type
(Superseded to 954-04060C)

$50.99

$

In Stock, Qty 9

0

45

White Outdoor 756-04129

Idler Pulley, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

46

White Outdoor 712-3087

Wing Nut, 1/4-20 (if equipped)

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 783-04327A

Cover, Belt, 6.00 Dia.
(Superseded to 783-04327B)

Variations

White Outdoor 783-04327A-0637

Belt Cover, Black 6.00 Dia - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327A-0638

Belt Cover, 6.00 Dia - MTD/TROY-BILT RED (0638)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327A-0650

Belt Cover, 6.00 Dia - RED METALLIC (0650)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327A-0665

COVER-BELT:6.00 DI - YARDMAN GREEN (0665)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04327A-0709

COVER-BELT:6.00 DI - MASTERCRAFT GREEN (0709)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327A-0716

Belt Cover, 6.00 Dia - CUB YELLOW-99 (0716)

$24.99

$

In Stock, Qty 20+

0

White Outdoor 783-04327A-4008

Belt Cover, 6.00 Dia - WINE RED (4008)

$24.99

$

In Stock, Qty 20+

0

$23.99

$

Usually ships in 3-6 days

0

48

White Outdoor 750-04446

Spacr, 3/8 ID x .68 OD x 1.46 Lg

$6.99

$

In Stock, Qty 6

0

49

White Outdoor 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

50

White Outdoor 731-1032B

Chute Assembly, Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0
