LT-542 G (13A2771G790) - White Outdoor 42" Lawn Tractor (2005) Fuel and Air Assembly Parts Diagram

42" Lawn Tractor

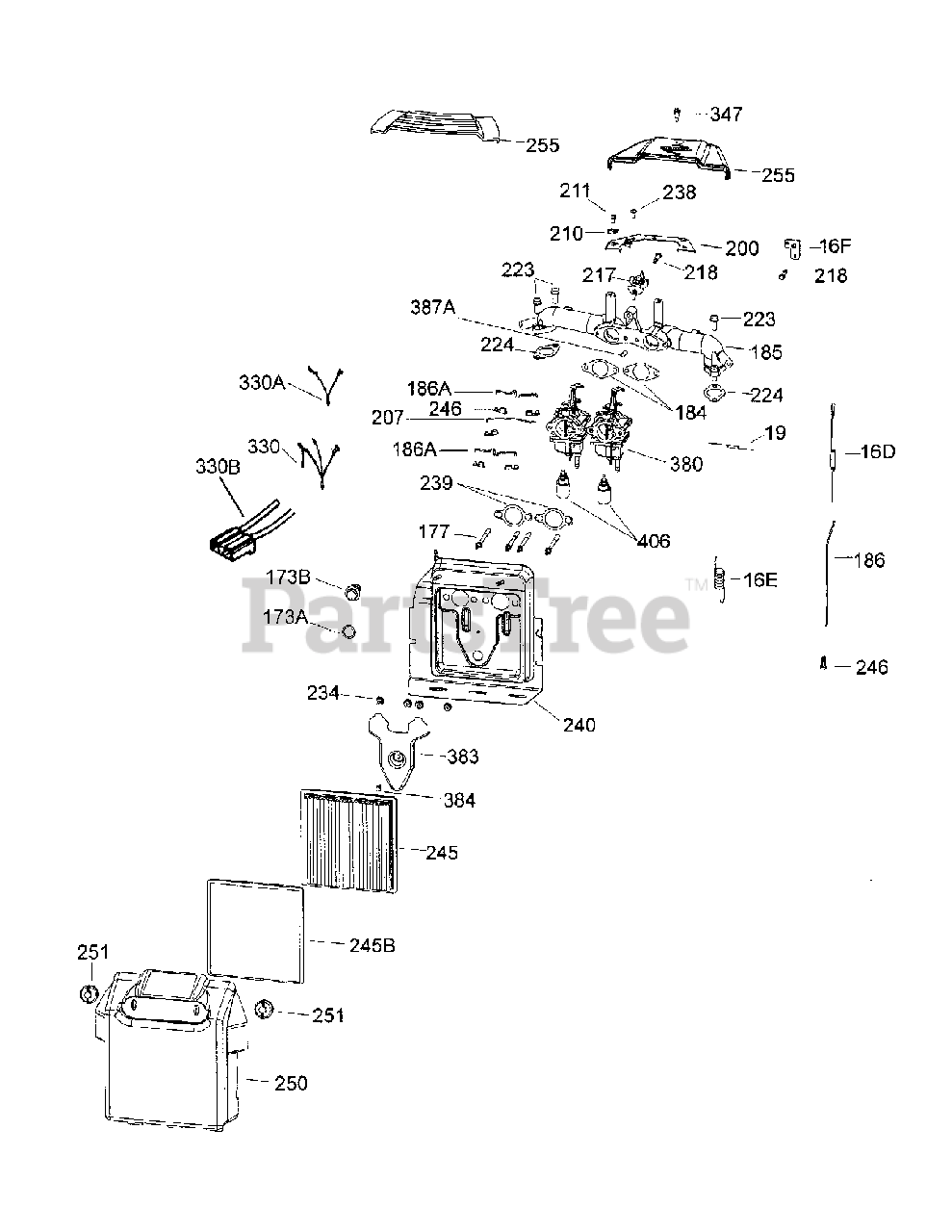

Fuel and Air Assembly Parts Diagram

  • Title

2

White Outdoor TC-27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

11

White Outdoor TC-36302

Check Valve

$1.99

$

In Stock, only 2 left!

0

11A

White Outdoor TC-36303

Breather Plate

$4.49

$

Usually ships in 3-12 days

0

11B

White Outdoor TC-650902

Screw, 10-32 x 7/16"

$1.99

$

Usually ships in 3-12 days

0

14

White Outdoor TC-37363

Washer

$

$

Not available

15

White Outdoor TC-37364

Governor Rod

$12.99

$

Usually ships in 3-12 days

0

15B

White Outdoor TC-650738

Screw, 1/4-20 x 5/8"

$3.99

$

In Stock, only 1 left!

0

16

White Outdoor TC-37413

Governor Lever

$

$

Not available

16A

White Outdoor TC-37414

Governor Spring Bracket

$

$

Not available

16D

White Outdoor TC-37415

Governor Spring, Hi-speed

$5.49

$

Usually ships in 3-12 days

0

16E

White Outdoor TC-37417

Governor Idle Spring

$7.49

$

Usually ships in 3-12 days

0

16F

White Outdoor TC-37418

Bell Crank Lever

$3.49

$

Usually ships in 3-12 days

0

17C

White Outdoor TC-37429

Breather Tube Clamp

$1.99

$

Usually ships in 3-12 days

0

19

White Outdoor TC-37416

Throttle Spring

$7.49

$

In Stock, only 1 left!

0

30

White Outdoor TC-37371

Crankshaft

$

$

Not available

35

White Outdoor TC-651069

Screw, Carriage 1/4-20 x 1-1/2"

$

$

Not available

37

White Outdoor TC-650456

Lock Nut, 1/4-20

$1.99

$

In Stock, only 1 left!

0

38

White Outdoor TC-37365

Retaining Ring

$

$

Not available

40

White Outdoor TC-40040

Piston, Pin & Ring Set (Std.)

$75.99

$

Usually ships in 3-12 days

0

40

White Outdoor TC-40041

Piston, Pin & Ring Set (.010"OS)

$

$

Not available

41

TC-40038

Piston & Pin Ass'y. (Std.) (Incl. 43)

$

$

Not available

41

TC-40039

Piston & Pin Ass'y.(.010"OS)(Incl.43)

$

$

Not available

42

White Outdoor TC-40013

Ring Set (Std.)

$28.99

$

In Stock, only 1 left!

0

42

White Outdoor TC-40014

Ring Set (.010"OS)

$43.99

$

Usually ships in 3-12 days

0

43

White Outdoor TC-27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

White Outdoor TC-37372

Connecting Rod Ass'y. (Incl. 46)

$94.99

$

Usually ships in 3-12 days

0

46

White Outdoor TC-651063

Connecting Rod Bolt

$1.99

$

In Stock, only 3 left!

0

48

White Outdoor TC-37373

Valve Lifter

$8.99

$

In Stock, only 2 left!

0

50

White Outdoor TC-37374

Camshaft (MCR)
(Superseded to TC-37826)

$

$

Not available

52

White Outdoor TC-37305

Oil Pump Ass'y.

$17.99

$

In Stock, only 1 left!

0

52A

White Outdoor TC-37382

Oil Pump Shaft

$10.99

$

Usually ships in 3-12 days

0

52B

White Outdoor TC-36333

O Ring

$3.99

$

Usually ships in 3-12 days

0

52C

White Outdoor TC-36334

Oil Pump Cover (Incl. 52B)

$3.99

$

Usually ships in 3-12 days

0

52D

White Outdoor TC-650888

Screw, T-30 1/4-20 x 43/64"

$1.99

$

In Stock, only 1 left!

0

52E

White Outdoor TC-37383

Oil Pump Gear

$8.99

$

Usually ships in 3-12 days

0

52F

White Outdoor TC-37384

Oil Pump Gear Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

60A

White Outdoor TC-650773

Screw, 1/4-20 x 1/2"

$

$

Not available

69

White Outdoor TC-37377

Mounting Flange Gasket

$9.49

$

In Stock, only 1 left!

0

70

White Outdoor TC-37378

Mounting Flange (Incl. 72,72A,75,80,381-387)

$199.99

$

Usually ships in 3-12 days

0

72

White Outdoor TC-31927

Oil Drain Plug, 3/18-18

$1.99

$

Usually ships in 3-12 days

0

72A

White Outdoor TC-28534

Oil Drain Plug, 3/8-18

$1.99

$

In Stock, only 4 left!

0

72C

White Outdoor TC-37651

Oil Drain Valve

$24.99

$

Usually ships in 3-12 days

0

75

White Outdoor TC-36301

Oil Seal (1 in Ref 1, 1 in Ref 70)

$9.49

$

In Stock, only 1 left!

0

75A

White Outdoor TC-37369

Oil Seal (Governor Shaft)

$5.49

$

Usually ships in 3-12 days

0

80

White Outdoor TC-37379

Governor Shaft

$

$

Not available

81

White Outdoor TC-37381

Washer (Governor Shaft)

$

$

Not available

82

White Outdoor TC-37380

Governor Gear Ass'y.

$

$

Not available

83

White Outdoor TC-35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

White Outdoor TC-29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

White Outdoor TC-651064

Screw, 5/16-18 x 1-15/32"

$

$

Not available

89

White Outdoor TC-650592

Flywheel Key

$1.99

$

In Stock, Qty 5

0

90

White Outdoor TC-611243

Flywheel (Incl. 91 & 91A)

$277.99

$

Usually ships in 3-12 days

0

91

White Outdoor TC-611241A

Flywheel Fan

$15.99

$

Usually ships in 3-12 days

0

91A

White Outdoor TC-611242

Flywheel Retainer

$5.49

$

Usually ships in 3-12 days

0

92

White Outdoor TC-651082

Lock Washer, Flywheel (Under Ref. 93)

$5.49

$

Usually ships in 3-12 days

0

93

White Outdoor TC-650594

Flywheel Nut

$3.99

$

In Stock, only 1 left!

0

100

White Outdoor TC-37395

Solid State Ignition (Incl. 101)

$50.99

$

In Stock, only 1 left!

0

101

White Outdoor TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

102

White Outdoor TC-651024

Solid State Mounting Stud

$3.99

$

In Stock, only 2 left!

0

103

White Outdoor TC-651007

Screw, T-15 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

119

White Outdoor TC-37388

Cylinder Head Gasket
(Superseded to TC-37830)

$12.99

$

Usually ships in 3-12 days

0

120

White Outdoor TC-37387

Cylinder Head, Opp. Breather Side

$145.99

$

Usually ships in 3-12 days

0

120A

White Outdoor TC-37389

Cylinder Head, Breather Side

$145.99

$

In Stock, only 1 left!

0

125

White Outdoor TC-36934

Exhaust Valve (Std.)

$39.99

$

In Stock, only 1 left!

0

126

White Outdoor TC-36935

Intake Valve (Std)

$22.99

$

Usually ships in 3-12 days

0

127

White Outdoor TC-650691

Flat Washer

$1.99

$

Usually ships in 3-12 days

0

128

White Outdoor TC-650690

Belleville Washer
(Superseded to TC-730324)

$9.99

$

In Stock, only 1 left!

0

130

MTD TC-650697A

Screw, 5/16-18 x 2-1/2"(Head Mount)

$1.99

$

In Stock, Qty 11

0

135

White Outdoor TC-34645

Spark Plug (RN4C)
(Superseded to RN4C)

$4.49

$

In Stock, Qty 20+

0

150

White Outdoor TC-33507

Valve Spring

$3.99

$

In Stock, only 1 left!

0

151

White Outdoor TC-33508

Valve Keeper Retainer & Cap Set

$9.49

$

In Stock, only 2 left!

0

151A

White Outdoor TC-35862

Valve Seal

$9.49

$

Usually ships in 3-12 days

0

153

White Outdoor TC-37390

Push Rod Guide

$

$

Not available

154

White Outdoor TC-650945

Rocker Arm Stud

$1.99

$

In Stock, only 2 left!

0

155

White Outdoor TC-35950

Rocker Arm

$7.49

$

Usually ships in 3-12 days

0

158

White Outdoor TC-37391

Push Rod

$9.99

$

In Stock, only 1 left!

0

159

White Outdoor TC-35952

Rocker Arm Cover Gasket

$6.49

$

In Stock, only 1 left!

0

160

White Outdoor TC-35953A

Rocker Arm Cover, Opp. Breather Side

$9.49

$

In Stock, only 1 left!

0

160A

White Outdoor TC-37392

Rocker Arm Cover, Breather Side

$

$

Not available

161

White Outdoor TC-30063

Screw, T-30 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

161A

White Outdoor TC-651034

Stud, Valve Cover Mounting

$4.49

$

Usually ships in 3-12 days

0

162

White Outdoor TC-650947

Rocker Arm Jam Nut, 5/16-24

$1.99

$

In Stock, only 1 left!

0

163

White Outdoor TC-650890

Internal Lock Washer, 5/16"

$1.99

$

In Stock, only 2 left!

0

169

White Outdoor TC-37367

Valve Cover Gasket

$

$

Not available

171

White Outdoor TC-37366

Breather Element

$3.99

$

Usually ships in 3-12 days

0

172

White Outdoor TC-37368

Valve Cover

$

$

Not available

173

White Outdoor TC-37393A

Breather Tube

$

$

Not available

173A

White Outdoor TC-37410

Breather Tube Grommet

$1.99

$

Usually ships in 3-12 days

0

173B

White Outdoor TC-37409

Breather Tube Fitting

$

$

Not available

177

White Outdoor TC-651067

Carbuertor Mounting Stud

$

$

Not available

184

White Outdoor TC-36352

Carburetor to Intake Pipe Gasket

$1.49

$

In Stock, Qty 9

0

185

White Outdoor TC-37396

Intake Pipe (Incl. 387A)

$90.99

$

Usually ships in 3-12 days

0

186

White Outdoor TC-37404

Governor Link

$9.49

$

Usually ships in 3-12 days

0

186A

White Outdoor TC-37405

Choke Link

$3.99

$

Usually ships in 3-12 days

0

200

White Outdoor TC-37400

Control Bracket

$15.99

$

Usually ships in 3-12 days

0

207

White Outdoor TC-37406

Throttle Link

$

$

Not available

210

White Outdoor TC-27793

Conduit Clip

$1.99

$

In Stock, only 2 left!

0

211

White Outdoor TC-28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 1 left!

0

212

White Outdoor TC-37370

Bushing

$1.99

$

In Stock, only 3 left!

0

217

White Outdoor TC-37419

Control Lever

$7.49

$

Usually ships in 3-12 days

0

218

White Outdoor TC-651070

Screw, 10-32 x 1-1/4"

$1.99

$

In Stock, only 3 left!

0

223

White Outdoor TC-650971

Screw, T-30 5/16-18 x 7/8"

$1.99

$

In Stock, only 4 left!

0

224

White Outdoor TC-33515A

Intake Pipe Gasket (Pipe to Head)

$1.99

$

In Stock, only 3 left!

0

234

White Outdoor TC-650928

Lock Nut, 1/4-20

$1.99

$

Usually ships in 3-12 days

0

238

White Outdoor TC-650902

Screw, 10-32 x 7/16"

$1.99

$

Usually ships in 3-12 days

0

239

White Outdoor TC-36358

Air Cleaner Gasket

$5.99

$

Usually ships in 3-12 days

0

240

White Outdoor TC-37691

Air Cleaner Body Ass'y. (Incl. 239)

$62.99

$

Usually ships in 3-12 days

0

245

White Outdoor TC-37360

Air Cleaner Filter (Paper)

$19.99

$

In Stock, Qty 6

0

245B

White Outdoor TC-37361

Air Cleaner Pre-Filter (Poly)

$3.99

$

In Stock, only 4 left!

0

246

White Outdoor TC-37407

Connector Bushing Link

$1.99

$

In Stock, Qty 13

0

250

White Outdoor TC-37690

Air Cleaner Cover

$19.99

$

Usually ships in 3-12 days

0

251

White Outdoor TC-37689

Wing Nut, 1/4-20 X 1-19/32" (A/C)

$6.49

$

In Stock, only 4 left!

0

253

White Outdoor TC-37376

Compression Release Weight

$

$

Not available

253A

White Outdoor TC-37424

Compression Release Pin

$

$

Not available

254

White Outdoor TC-37375

Compression Release Spring

$

$

Not available

255

White Outdoor TC-37420

Control Cover

$7.49

$

Usually ships in 3-12 days

0

260

White Outdoor TC-37398

Blower Housing (Red)

$117.99

$

Usually ships in 3-12 days

0

261

White Outdoor TC-650737

Screw, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 6

0

265

White Outdoor TC-37627

Cylinder Head Cover, Opp. Breather

$

$

Not available

265A

White Outdoor TC-37628

Cylinder Head Cover, Breather Side
(Superseded to TC-37832)

$

$

Not available

270A

White Outdoor TC-35829A

Exhaust Port Liner

$5.49

$

In Stock, only 2 left!

0

286

White Outdoor TC-37394

Flywheel Screen

$

$

Not available

287

White Outdoor TC-651066

Screw, T-20 8-18 x 1-15/32"

$

$

Not available

290

White Outdoor TC-30962

Fuel Line (17")

$30.99

$

In Stock, Qty 6

0

291

White Outdoor TC-29774

Fuel Line (8-1/4")

$34.99

$

In Stock, Qty 6

0

291A

White Outdoor TC-29774

Fuel Line (8-1/4")

$34.99

$

In Stock, Qty 6

0

291B

White Outdoor TC-29774

Fuel Line (8-1/4")

$34.99

$

In Stock, Qty 6

0

291C

White Outdoor TC-34357

Fuel Line (6-3/4")

$

$

Not available

292

White Outdoor TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 6

0

292A

White Outdoor TC-37399A

Fuel Line Retainer

$3.99

$

Usually ships in 3-12 days

0

293

White Outdoor TC-35787A

Pulse Pump

$43.99

$

In Stock, only 1 left!

0

293A

White Outdoor TC-650931

Screw, 8-32 x 1-1/2"

$

$

Not available

294

White Outdoor TC-35791

Pulse Pump Repair Kit

$71.99

$

In Stock, only 2 left!

0

295A

White Outdoor TC-37422

Fuel Fitting
(Superseded to TC-37422A)

$2.99

$

Usually ships in 3-12 days

0

296

White Outdoor TC-37768

Fuel Filter (Incl. 292)

$6.49

$

In Stock, only 2 left!

0

303

White Outdoor TC-32958

Pulse Pump/Fuel Fitting

$10.99

$

Usually ships in 3-12 days

0

305

White Outdoor TC-36349

Oil Fill Tube

$5.49

$

Usually ships in 3-12 days

0

306

White Outdoor TC-37401

O-Ring (Oil Fill, Bottom)

$3.99

$

Usually ships in 3-12 days

0

307

White Outdoor TC-35499

O-Ring Oil Fill,(Top)

$1.49

$

In Stock, only 3 left!

0

309

White Outdoor TC-650974

Screw, 1/4-20 x 57/64"

$1.99

$

Usually ships in 3-12 days

0

310

White Outdoor TC-37421

Dipstick

$9.49

$

Usually ships in 3-12 days

0

315

White Outdoor TC-611280

Alternator Coil (3/5 Split) (Incl.321- 323)

$100.99

$

Usually ships in 3-12 days

0

321

White Outdoor TC-611161

Diode

$17.99

$

Usually ships in 3-12 days

0

322

White Outdoor TC-611281

Connector Body

$

$

Not available

323

White Outdoor TC-611282

Terminal

$3.49

$

In Stock, only 1 left!

0

325

White Outdoor TC-36342

Wire Clip

$1.99

$

Usually ships in 3-12 days

0

330

White Outdoor TC-37739

Wire Harness, Twin-Solenoid (Red), and Ignition Ground (Green)

$17.99

$

In Stock, only 1 left!

0

330A

White Outdoor TC-37403

Twin-Solenoid Ground Wire (Black)

$10.99

$

Usually ships in 3-12 days

0

342

White Outdoor TC-651031

Screw, 1/4-20 x 9/16"(Ref. 240 & 265)

$1.99

$

In Stock, only 4 left!

0

346

White Outdoor TC-36413

Fuel Pump Bracket

$9.99

$

Usually ships in 3-12 days

0

347

White Outdoor TC-650898A

Screw, 10-32 x 27/32"

$1.99

$

In Stock, Qty 6

0

361

White Outdoor TC-651065

Screw, 5/16-18 x 2-3/8"

$1.99

$

Usually ships in 3-12 days

0

370A

White Outdoor TC-35274

Lubrication Decal

$2.49

$

Usually ships in 3-12 days

0

380

White Outdoor TC-640221

Carburetor (Incl. 184 & 428)

$109.99

$

Usually ships in 3-12 days

0

381

White Outdoor TC-650767

Screw, 8-32 x 27/64"

$1.49

$

Usually ships in 3-12 days

0

382

White Outdoor TC-36931

Oil Strainer Screen

$14.99

$

In Stock, Qty 9

0

383

White Outdoor TC-37411

Carburetor Baffle
(Superseded to TC-37411A)

$7.99

$

Usually ships in 3-12 days

0

384

White Outdoor TC-30200

Screw, 10-24 x 9/16" Self Tap

$1.49

$

In Stock, Qty 10

0

385

White Outdoor TC-570673

Ball

$1.99

$

Usually ships in 3-12 days

0

386

White Outdoor TC-36329

Pressure Release Spring

$1.99

$

In Stock, only 3 left!

0

387

White Outdoor TC-37652

Cotter Pin

$1.99

$

Usually ships in 3-12 days

0

387A

White Outdoor TC-37397

Roll Pin

$

$

Not available

395

White Outdoor TC-37284

Electric Starter Motor (12 Volt)

$169.99

$

Usually ships in 3-12 days

0

400

White Outdoor TC-37423

Gasket Set (Incl. Items Marked PK in Notes)
(Superseded to TC-37423A)

$

$

Not available

406

White Outdoor TC-611221

Fuel Shut-Off Solenoid

$66.99

$

In Stock, only 1 left!

0

428

White Outdoor TC-37362

Spacer

$

$

Not available

475

White Outdoor TC-36563

Oil Filter

$14.99

$

In Stock, Qty 9

0

476

White Outdoor TC-36929

Oil Filter Adaptor (Incl. 479)

$32.99

$

Usually ships in 3-12 days

0

477

White Outdoor TC-650378

Screw, T-30 5/16-18 x 1 3/32"

$1.99

$

In Stock, only 3 left!

0

479

White Outdoor TC-36930

Oil Filter Adaptor Gasket

$5.49

$

In Stock, only 1 left!

0
