LT 538 G (13AC77GF897) - Columbia 38" Lawn Tractor (2012) Steering & Front Axle Parts Diagram

38" Lawn Tractor

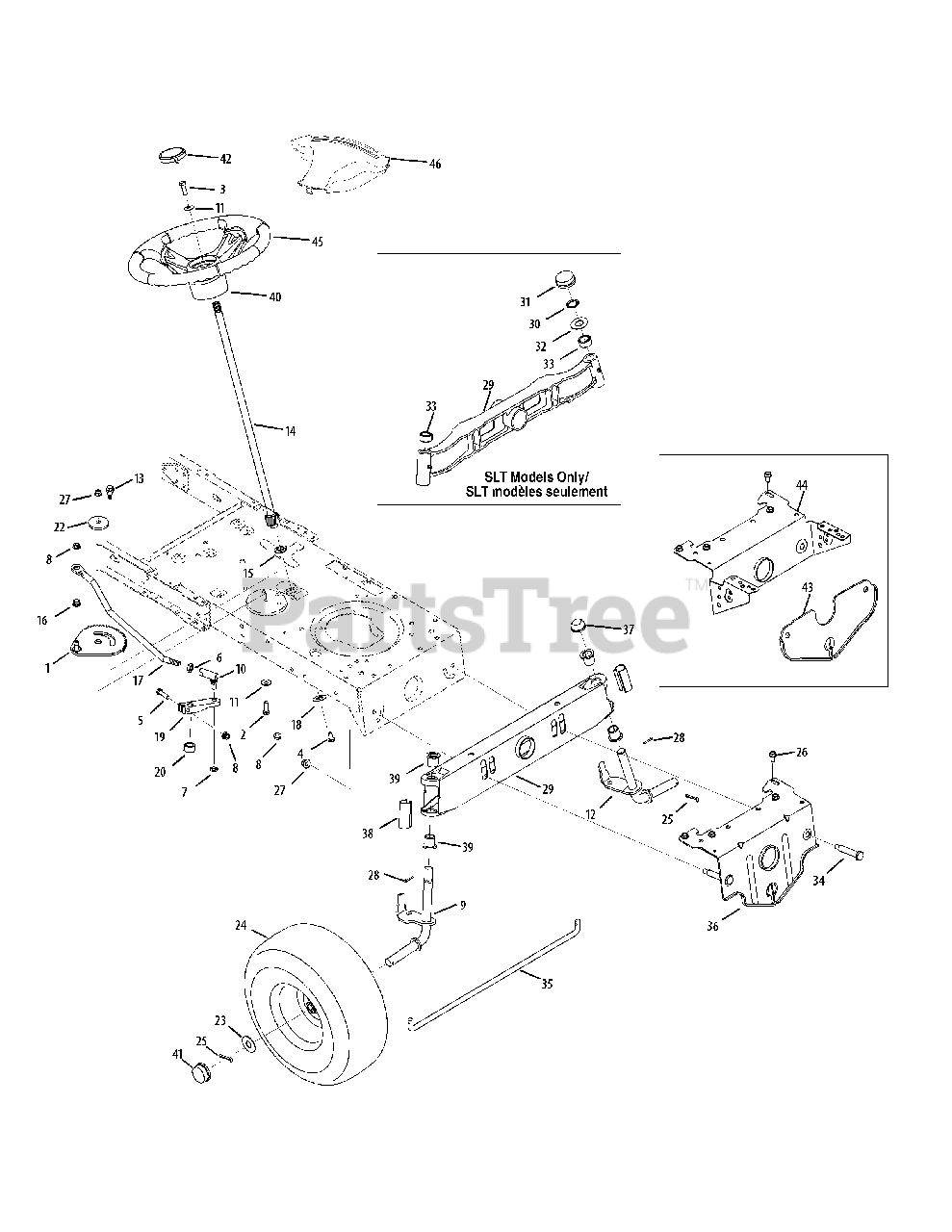

Steering & Front Axle Parts Diagram

  • Title

1

MTD 617-04094

Steering Gear Assembly

$29.99

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Hd. Cap Scr 3/8-16 x 1,00 Gr. 5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw 5/16-18 x 1.00 Special

$6.99

$

In Stock, Qty 5

0

4

MTD 710-1309

Machine Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

6

MTD 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-0214

Hex Cent-L Nut 3/8-24 Gr. B
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

8

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

9

MTD 638-04008P

Axle Assembly, RH

$51.99

$

In Stock, only 1 left!

0

10

MTD 923-0448A

Ball Joint, 7/16 - 20

$24.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

12

MTD 938-04007A-0637

Axle Assembly, LH

$46.99

$

Usually ships in 3-6 days

0

13

MTD 738-04141

Shoulder Screw .435 x .3485, 5/16-18

$5.49

$

In Stock, Qty 20+

0

14

MTD 738-0919A

Steering Shaft, 5/8 Spline x 21.86
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

15

MTD 941-04124

Hex Flange Bear ing 5/8
(Superseded to 741-04124)

$5.49

$

In Stock, Qty 20+

0

16

MTD 941-04454

Bushing .375 ID x .5

$6.99

$

In Stock, only 3 left!

0

17

MTD 747-05385

Steer ing Drag Link
(Superseded to 747-05385A)

$20.99

$

In Stock, only 4 left!

0

18

MTD 948-0389

Cap, 1.25 x .16

$5.49

$

In Stock, Qty 20+

0

19

MTD 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 1 left!

0

20

MTD 748-04068

Spacer .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

22

MTD 738-04162A

Shoulder Spacer
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

23

MTD 736-04228A

Flat Washer .781 ID x 1.59 OD Special
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

24

MTD 634-04086-0911

Wheel Assembly Complete
(Superseded to 634-05067-0911)

$185.99

$

In Stock, only 4 left!

0

24

MTD 734-1731-0901

Tire Only

Note: Not shown

$49.99

$

Usually ships in 3-6 days

0

24

MTD 934-04081-0662

Rim Only
(Superseded to 634-05066-0662)

Note: Not shown

$105.99

$

Usually ships in 3-6 days

0

24

MTD 934-0255

Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

25

MTD 714-04039A

Cotter Pin 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

26

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

28

MTD 914-0474

Cotter Pin 1/8" Dia x .75
(Superseded to 714-0474)

$

$

Not available

29

MTD 683-0128B

Pivot Bar

Variations

MTD 683-0128B-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0606

Pivot Bar - MAJESTIC ORANGE (0606)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0638

Pivot Bar - MTD/TROY-BILT RED (0638)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0650

Steel Axle Pivot Bar Assembly - RED METALLIC (0650)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0709

Steel Axle Pivot Bar Assembly - MASTERCRAFT GREEN (0709)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-4062

Steel Axle Pivot Bar Assembly - COOL GRAY (4062)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

30

MTD 726-04035

Push Nut 3/4"

$6.99

$

In Stock, only 2 left!

0

31

MTD 731-04693

Axle End Cap

$4.99

$

In Stock, only 2 left!

0

32

MTD 936-0316

Flat Washer .78 x 1.59 x .060
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

33

MTD 748-04068

Spacer .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-04128

Shoulder Screw .500 x 2.380, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

35

MTD 747-04299A

Tie Rod

$30.99

$

In Stock, only 1 left!

0

36

MTD 783-05326B-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

37

MTD 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

38

MTD 731-04057A

Axle End Cap, Standard

$5.49

$

In Stock, Qty 20+

0

39

MTD 741-0660A

Flange Bear ing .760 ID x .937 OD

$3.49

$

In Stock, Qty 20+

0

40

MTD 631-04028

Steering Wheel, Standard Grip

$69.99

$

In Stock, only 1 left!

0

41

MTD 931-0484A

Plastic Hub Cap

$6.49

$

In Stock, Qty 20+

0

42

MTD 731-04040

Steering Wheel Cap (sprig logo)

$9.99

$

In Stock, only 1 left!

0

43

MTD 783-04568

Front Deck Hanger Bracket

Variations

MTD 783-04568-0637

Deck Hanger Bracket - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

MTD 783-04568-4008

Deck Hanger Bracket - WINE RED (4008)

$51.99

$

Usually ships in 3-6 days

0

MTD 783-04568-0691

BRACKET:DECK HANGE - BLACK JACK (0691)

$51.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

44

MTD 783-04601C

Pivot Bracket

Variations

MTD 783-04601C-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

MTD 783-04601C-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$52.99

$

Usually ships in 3-6 days

0

MTD 783-04601C-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$52.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

45

MTD 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

46

MTD n/a

Steering Wheel Cover

Note: not used in this application

$

$

Currently unavailable
