LT 538 G (13AC77GF897) - Columbia 38" Lawn Tractor (2012) Seat & Fender Parts Diagram

38" Lawn Tractor

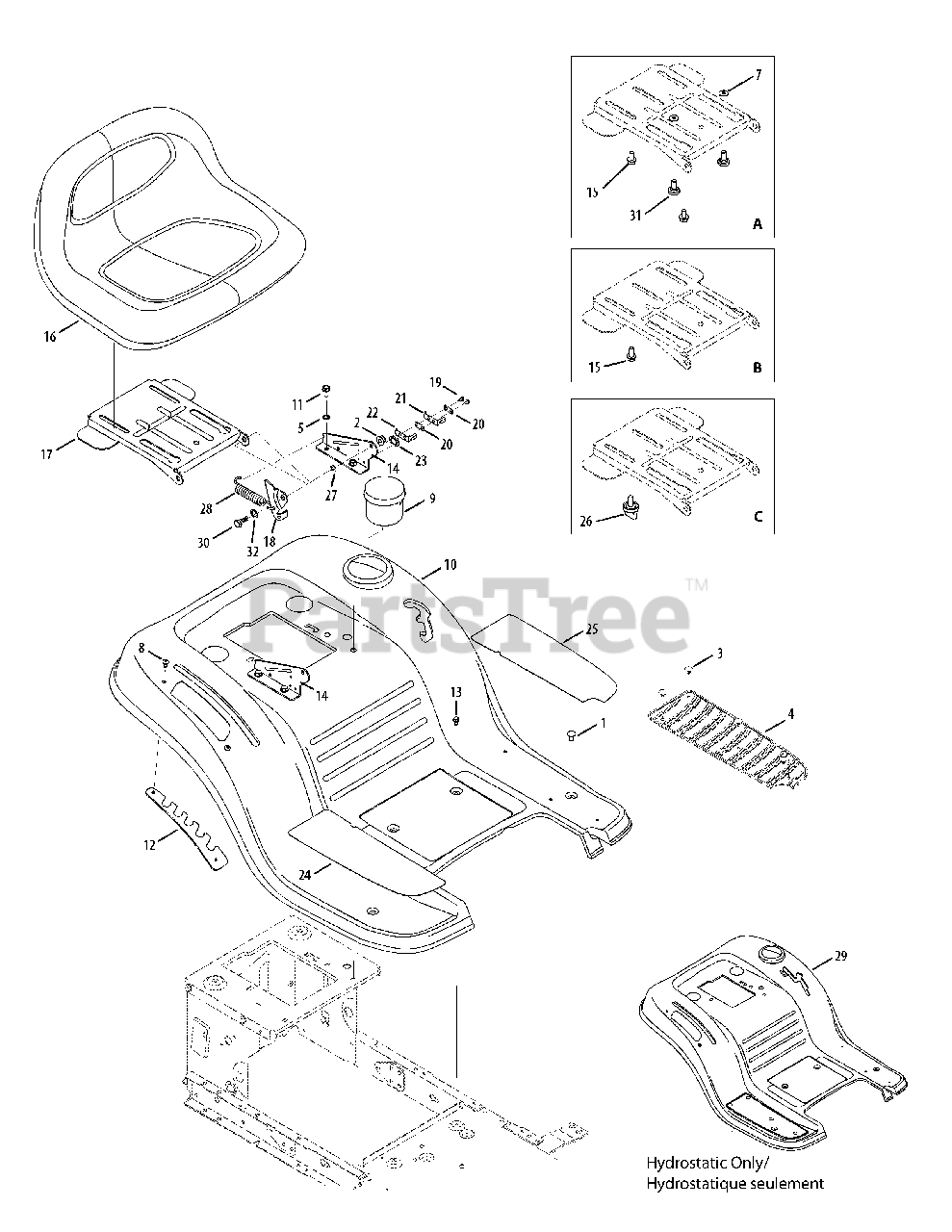

Seat & Fender Parts Diagram

  • Title

1

MTD 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

3

MTD 726-04072A

Ratchet Clip

$3.99

$

In Stock, Qty 13

0

4

MTD 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

4

MTD 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

5

MTD 736-0607

Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

6

MTD 936-0108

Flat Washer .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

7

MTD 936-0300

Flat Washer .405 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

7

MTD 936-0140

Flat Washer .395 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

8

MTD 710-05070

Tap Screw 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

9

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

10

MTD 783-04587D-0606

Fender
(Superseded to 783-04587E-0606)

$421.99

$

Usually ships in 3-6 days

0

11

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

MTD 783-04843-0606

Lift Adjustment Bracket

$34.99

$

Usually ships in 3-6 days

0

13

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-1489D-0606

Seat Mounting Bracket
(Superseded to 783-1489D-0637)

$23.99

$

Usually ships in 3-6 days

0

15

MTD 710-04482

Screw 3/8-16 x .875

$4.49

$

In Stock, Qty 14

0

16

MTD 757-04099

Seat, Low Back
(Superseded to 757-05230)

$194.99

$

In Stock, only 1 left!

0

17

MTD 783-04081D-0606

Seat Pivot Bracket
(Superseded to 783-04081D-0637)

$41.99

$

In Stock, only 1 left!

0

18

MTD 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

19

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

20

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

21

MTD 925-1303

Spring Switch

$6.49

$

In Stock, Qty 7

0

22

MTD 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

23

MTD 726-0278

Insulator Plate

$6.99

$

In Stock, Qty 10

0

24

MTD 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

25

MTD 723-04026

Foot Pad, Abrasive, LH

$33.99

$

In Stock, only 1 left!

0

26

MTD 720-04061

Knob

$5.49

$

In Stock, Qty 20+

0

27

MTD 736-0242

Cupp. Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

28

MTD 732-1184

Extension Spring .84 Dia. x 4.6

$11.99

$

Usually ships in 3-6 days

0

29

MTD n/a

Fender - Hydrostatic

Note: not used in this application

$

$

Currently unavailable

30

MTD 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-04012A

Shoulder Screw .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

32

MTD 936-0108

Flat Washer .510 x .75 x .033

$6.99

$

In Stock, only 4 left!

0
