LT 538 G (13AC77GF897) - Columbia 38" Lawn Tractor (2012) Mower Deck 38-Inch Parts Diagram

38" Lawn Tractor

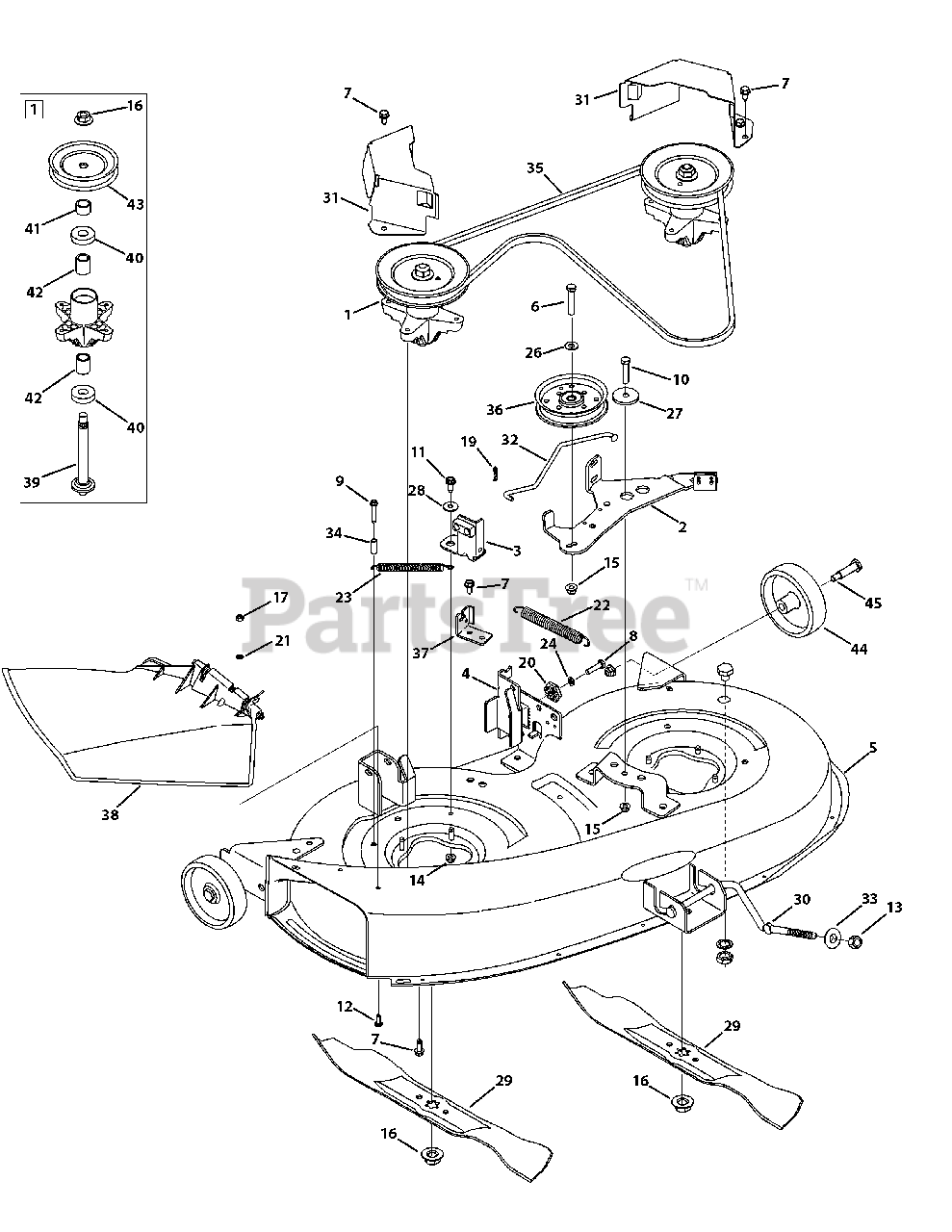

Mower Deck 38-Inch Parts Diagram

  • Title

1

MTD 918-04474A

Pulley Spindle Ass’y 5.75 dia.
(Superseded to 918-04474B)

$120.99

$

In Stock, Qty 9

0

2

MTD 983-04167

Deck Brake Assembly

$47.99

$

In Stock, only 3 left!

0

3

MTD 683-04138B-0606

Deck Brake Assembly
(Superseded to 683P04138C)

$117.99

$

Usually ships in 3-6 days

0

4

MTD 683-0254B-0606

Deck Hanger Brkt. Ass'y
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

5

MTD 983-04264-0606

Deck Shell, 38" (w/ wheel brackets)
(Superseded to 983-04264C-0606)

$465.99

$

Usually ships in 3-6 days

0

6

MTD 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0528

Hex Wash Tap Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, only 3 left!

0

10

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

11

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04243

Flexloc Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-04063

Hex Flange Locknut 5/16-18 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

Hex Flange Locknut 3/8-16 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0417A

Hex Flange Locknut 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

19

MTD 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 20+

0

21

MTD 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, only 3 left!

0

22

MTD 732-04280B

Extension Spring .75 dia. x 6.37 Lg.

$8.49

$

In Stock, Qty 9

0

23

MTD 732-04287

Extension Spring .50 dia x 6.37

$15.99

$

In Stock, only 3 left!

0

24

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

26

MTD 936-0300

Flat Washer
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-04162A

Shoulder Spacer .8540 x .200
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

28

MTD 738-04166

Shoulder Spacer

$6.49

$

In Stock, Qty 8

0

29

MTD 942-0610A

3 in 1 Blade 19.38" Lg.

$26.99

$

In Stock, Qty 20+

0

30

MTD 747-04322

Deck Rod, Front Adjustable

$35.99

$

In Stock, only 1 left!

0

31

MTD 783-04602A-0606

Belt Cover 5.66 dia.
(Superseded to 783-04602C-0606)

$30.99

$

Usually ships in 3-6 days

0

32

MTD 747-04381

Brake Control Rod

$20.99

$

Usually ships in 3-6 days

0

33

MTD 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

34

MTD 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

35

MTD 954-04062

V-Belt

$47.99

$

In Stock, Qty 13

0

36

MTD 756-04129B

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

37

MTD 783-04740-0606

Deck Engage Cable Bracket

$10.99

$

Usually ships in 3-6 days

0

38

MTD 631-0216A

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

39

MTD 938-04241

Spindle Shaft 5.5

$34.99

$

In Stock, only 1 left!

0

40

MTD 941-0919A

Ball Bearing .787 ID x 1.85 OD x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

41

MTD 750-04739

Spacer, .820 x 1.150 x .480

$13.99

$

In Stock, only 4 left!

0

42

MTD 750-1000

Spacer .80 x 1.10 x 1.322

$4.49

$

In Stock, Qty 7

0

43

MTD 756-1188

Deck Pulley

$36.99

$

In Stock, Qty 8

0

44

MTD 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

45

MTD 938-0373

Shoulder Bolt .498 Dia x 1.53 x 3/8-16

$9.49

$

In Stock, Qty 20+

0
