LT-5000 (13AP60TP290) - White Outdoor 50" Lawn Tractor (2008) Steering & Front Axle Assembly Parts Diagram

50" Lawn Tractor

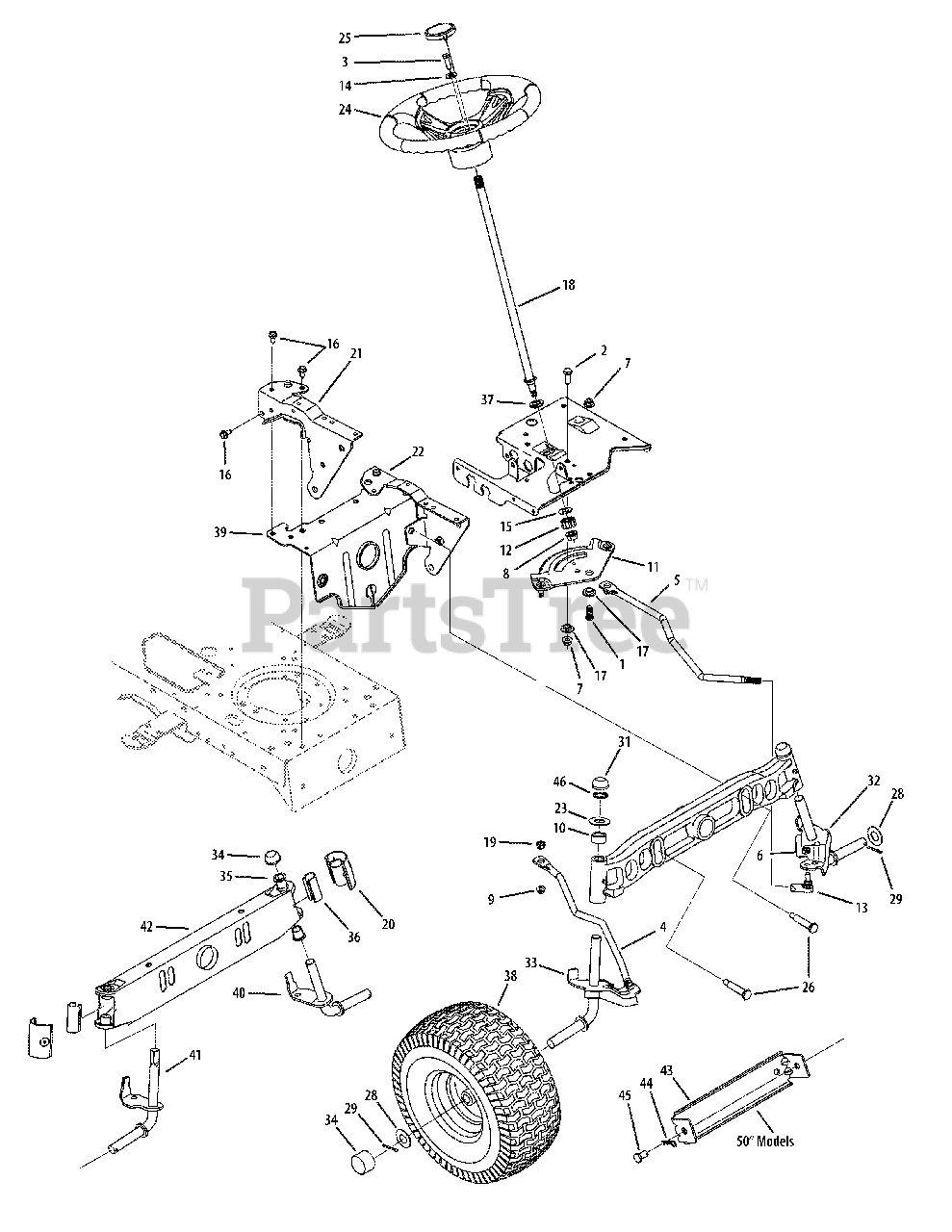

Steering & Front Axle Assembly Parts Diagram

  • Title

1

White Outdoor 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.99

$

In Stock, Qty 5

0

4

White Outdoor 711-1408

Link, Drag, RH

$

$

Not available

5

White Outdoor 711-1409A

Link, Drag, LH

$

$

Not available

6

White Outdoor 712-0214

Nut, Hex Lock, 3/8-24

$6.49

$

In Stock, only 2 left!

0

7

White Outdoor 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

12

White Outdoor 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

13

White Outdoor 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

14

White Outdoor 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

15

White Outdoor 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-04484

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 738-04154

Spacer, Shoulder, .38 x 1.00 x .31

$5.49

$

In Stock, Qty 11

0

18

White Outdoor 738-04263

Shaft, Steering, .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

19

White Outdoor 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 731-1291A

Pivot Bar End Cap w/ fitting
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 9

0

21

White Outdoor 783-05418

Pivot Bracket, Suprt. RH

Note: (50" Deck)

Variations

White Outdoor 783-05418-0637

Hood Pivot Bracket, RH - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 783-05417

Pivot Bracket, Suprt. LH

Note: (50" Deck)

Variations

White Outdoor 783-05417-0637

Hood Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 736-0316

Washer, Flat, .78 x 1.59 x .060

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

24

White Outdoor 631-04008A

Steering Wheel, Softgrip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

25

White Outdoor 731-04039

Steering Wheel Cap

$8.49

$

Usually ships in 3-6 days

0

25

White Outdoor 731-04040

Steering Wheel Cap, Sprig Logo

$9.99

$

In Stock, only 1 left!

0

25

White Outdoor 731-04681

Steering Wheel Cap, Tine Logo

$14.99

$

In Stock, only 4 left!

0

26

White Outdoor 738-04128

Shoulder Bolt, .5 x 2.38, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

27

White Outdoor 731-05674

Hub Cap, Standard

$5.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-04228A

Flat Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

29

White Outdoor 714-0162

Cotter Pin, 5/32 x 1.25

Note: (Cast Axle)

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

Note: (Stmpd. Axle)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 719-04177A

Cast Iron Pivot Bar
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

30

White Outdoor 737-3000

Fitting, Lube, 3/16 Drive Type
(Superseded to 937-3000)

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 737-0475

Fitting, Lube, M6 Threaded

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0

31

White Outdoor 726-0341

Push Cap

Note: (Stamped Axle)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 731-04693

Push Cap

Note: (Cast Axle)

$4.99

$

In Stock, only 2 left!

0

32

White Outdoor 638-04003A

LH Axle Assembly, .750
(Superseded to 638-04003AP)

Note: (46" & 50")

$

$

Not available

33

White Outdoor 638-04004A

RH Axle Assembly, .750
(Superseded to 938-04004A)

Note: (46" & 50")

$71.99

$

In Stock, only 2 left!

0

34

White Outdoor 731-05674

Push Cap, 3/4

$5.49

$

In Stock, Qty 20+

0

35

White Outdoor 741-0660A

Flange Bearing

$3.49

$

In Stock, Qty 20+

0

36

White Outdoor 731-04057A

Axle End Cap, Standard

$5.49

$

In Stock, Qty 20+

0

37

White Outdoor 741-04237

Hex Flange Bearing
(Superseded to 741-04237B)

$6.99

$

In Stock, Qty 15

0

38

White Outdoor 634-04086

Wheel Assembly Complete, 15x6
(Superseded to 634-05067)

Variations

White Outdoor 634-04086-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$185.99

$

In Stock, only 4 left!

0

White Outdoor 634-04086-0941

WHL ASM-COMP - Carlisle Yellow (0941)

$172.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-0961

Wheel Assembly Complete - Carlisle Gray (0961)

$84.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-0991

WHL ASM-COMP - Carlisle White (0991)

$185.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-4009

USE 634-04086-0991 WHL ASM-CO - TEE WHITE (4009)

$185.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04086-0931

WHL ASM-COMP - Carlisle Beige (0931)

$172.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

38

White Outdoor 734-1731

Tire Only 15 x 6 x 6

Variations

White Outdoor 734-1731-0901

TIRE SQUARE TREAD 15 X 5 - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0902

TIRE 15 X 6 DICO-M - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 734-1731-0904

TIRE SQUARE TREAD 15 X 5 - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0905

TIRE 15 X 6 - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0906

TIRE 15 X 6 KENDA - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

38

White Outdoor 634-04081

Rim Only w/ Valve Stem
(Superseded to 934-04081)

Variations

White Outdoor 634-04081-0499

RIM ASSY-FRONT - CUB BEIGE (0499)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0662

Rim Assembly, Front Grey - OYSTER GRAY (0662)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-0674

RIM ASSY-FRONT - YARDMAN YELLOW (0674)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$105.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04081-4042

RIM ASSY-FRONT - CRAFTSMAN GRAY (4042)

$105.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

39

White Outdoor 783-05326

Frt. Deck Hang Bracket
(Superseded to 783-05326D-0637)

Variations

White Outdoor 783-05326-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$33.99

$

In Stock, only 1 left!

0

$33.99

$

In Stock, only 1 left!

0

40

White Outdoor 638-04006

LH Axle Assembly, .750
(Superseded to 938-04006A-0637)

Note: (42" Deck)

$54.99

$

In Stock, only 2 left!

0

41

White Outdoor 638-04005

RH Axle Assembly, .750
(Superseded to 938-04005A-0637)

Note: (42" Deck)

$54.99

$

In Stock, only 1 left!

0

42

White Outdoor 683-0128B

Pivot Bar Axle Assembly

Variations

White Outdoor 683-0128B-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

White Outdoor 683-0128B-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

White Outdoor 683-0128B-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

White Outdoor 683-0128B-0606

Pivot Bar - MAJESTIC ORANGE (0606)

$97.99

$

In Stock, only 2 left!

0

White Outdoor 683-0128B-0638

Pivot Bar - MTD/TROY-BILT RED (0638)

$97.99

$

In Stock, only 2 left!

0

White Outdoor 683-0128B-0650

BAR-PIVOT - RED METALLIC (0650)

$97.99

$

In Stock, only 2 left!

0

White Outdoor 683-0128B-0665

Pivot Bar, Yard-Man Green - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

White Outdoor 683-0128B-0709

BAR-PIVOT - MASTERCRAFT GREEN (0709)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

43

White Outdoor 783-0720A

Deck Rod Adjust. Bracket
(Superseded to 783-0720C)

Note: (50" Deck)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

44

White Outdoor 714-04023

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 711-0332

Clevis Pin, .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

46

White Outdoor 726-04035

Nut, Push, 3/4 dia.

$6.99

$

In Stock, only 2 left!

0
