LT-5000 (13AP60TP290) - White Outdoor 50" Lawn Tractor (2008) Engine Head Valve Breather Parts Diagram

50" Lawn Tractor

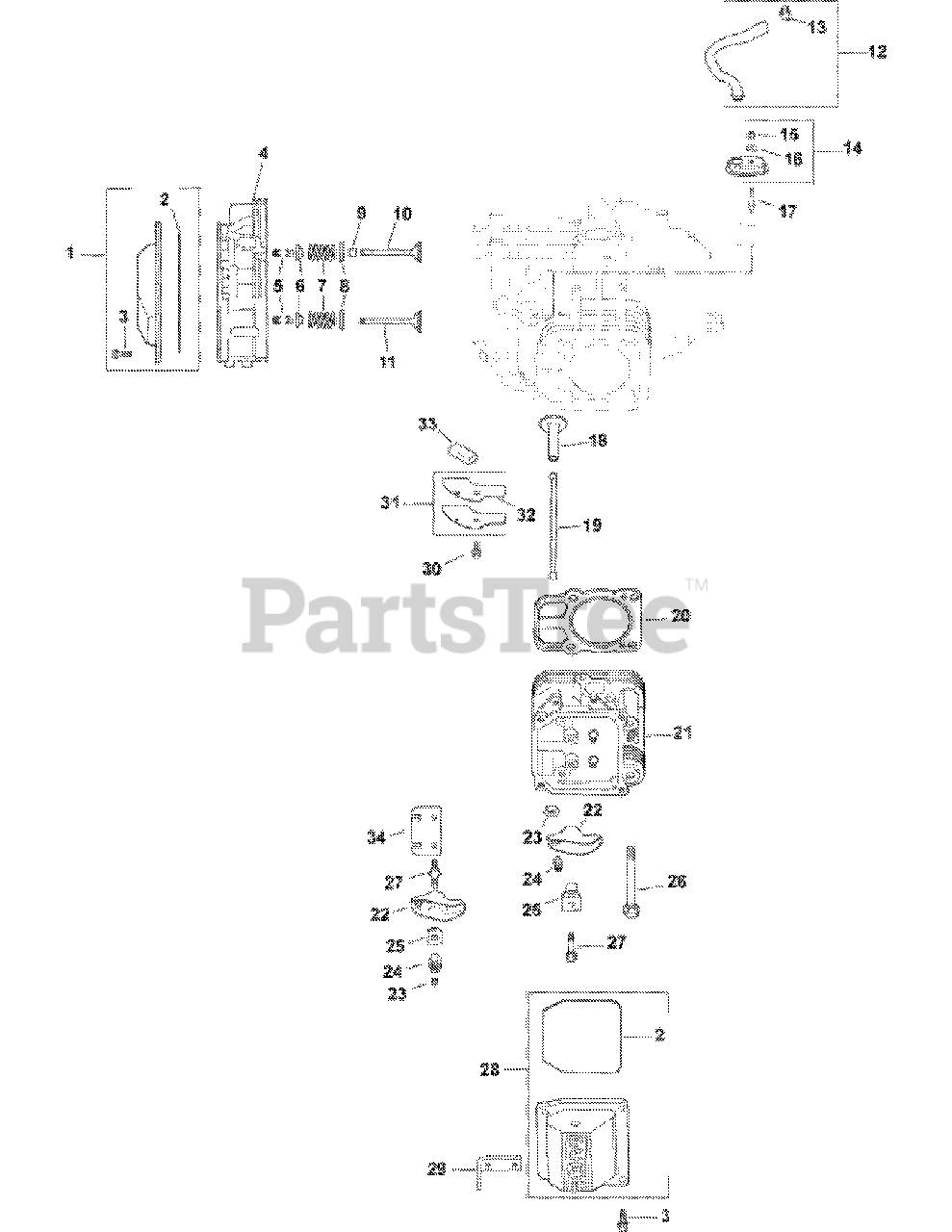

Engine Head Valve Breather Parts Diagram

  • Title

1

White Outdoor KH-24-755-141-S

KIT, VALVE COVER-PLAIN

Note: (Includes 2,3)

$35.99

$

In Stock, Qty 5

0

2

White Outdoor KH-24-153-30-S

O-RING, VALVE COVER

$11.99

$

Usually ships in 2-5 days

0

3

White Outdoor KH-M-651030-S

SCREW, FLG M6X1.0X30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

4

MTD KH-32-318-01-S

USE 32 318 05-S KIT
(Superseded to KH-32-755-39-S)

Note: (includes 26 [qty 4] & 24 841 03-S) (Before S/N 3633510953)

$

$

Not available

White Outdoor KH-32-318-05-S

KIT, #1 CYLINDER HEAD ASSEMBLY - USE 32 318 08-S
(Superseded to KH-32-755-39-S)

Note: (includes 26 [qty 4] & 24 841 03-S) (After S/N 3633510943)

$

$

Not available

5

White Outdoor KH-12-755-03

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

6

White Outdoor KH-12-173-01

CAP, VALVE SPRING
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 3 left!

0

7

White Outdoor KH-24-089-02

SPRING, VALVE

$

$

Not available

8

White Outdoor KH-235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 1 left!

0

9

White Outdoor KH-66-032-05-S

SEAL, VALVE STEM
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

10

White Outdoor KH-24-017-01

VALVE, INTAKE (STD)

$

$

Not available

11

White Outdoor KH-24-016-01

VALVE, EXHAUST (STD)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 12

0

12

White Outdoor KH-32-326-06-S

KIT, BREATHER HOSE

Note: (includes 13 [qty 1])

$18.99

$

In Stock, only 1 left!

0

13

White Outdoor KH-25-237-14-S

CLAMP, SPRING HOSE 1/2"
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

14

White Outdoor KH-32-081-02-S

KIT, BREATHER HOUSING

Note: (includes 15,16)

$2.49

$

In Stock, only 1 left!

0

15

White Outdoor KH-M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

16

White Outdoor KH-32-468-01-S

WASHER, SEALING

$2.99

$

In Stock, only 1 left!

0

17

White Outdoor KH-32-072-03-S

STUD, BREATHER COVER

$2.99

$

Usually ships in 2-5 days

0

18

White Outdoor KH-32-019-01-S

KIT,TAPPET - USE 32 019 02-S
(Superseded to KH-32-019-02-S)

$13.99

$

In Stock, only 3 left!

0

19

White Outdoor KH-32-411-02-S

ROD, PUSH

Note: (before S/N 3633510953)

$3.49

$

Usually ships in 2-5 days

0

White Outdoor KH-32-411-04-S

ROD, PUSH

Note: (after S/N 3633510943)

$4.99

$

In Stock, only 3 left!

0

20

White Outdoor KH-24-841-03-S

KIT, CYLINDER HEAD GASKET
(Superseded to KH-24-841-04-S)

Note: (includes head mounting hardware & 24 041 49-S, 24 153 27-S)

$45.99

$

In Stock, Qty 14

0

21

MTD KH-32-318-02-S

USE 32 318 06-S KIT
(Superseded to KH-32-318-14-S)

Note: (includes 26 [qty 4] & 24 841 03-S) (before S/N 3633510953)

$

$

Not available

21

White Outdoor KH-32-318-06-S

KIT, #2 CYLINDER HEAD ASSY - USE 32 318 10-S
(Superseded to KH-32-318-14-S)

Note: (includes 26 [qty 4] & 24 841 03-S) (After S/N 3633510943)

$

$

Not available

22

MTD KH-32-186-02-S

ARM, ROCKER
(Superseded to KH-32-755-06-S)

Note: (before S/N 3633510953)

$31.99

$

In Stock, only 1 left!

0

22

White Outdoor KH-32-186-03-S

ARM, ROCKER

Note: (after S/N 3633510943)

$6.49

$

In Stock, only 1 left!

0

23

MTD KH-32-100-04-S

NUT, M10X0.75

Note: (before S/N 3633510953)

$39.99

$

Usually ships in 2-5 days

0

23

White Outdoor KH-25-100-33-S

NUT, HEX
(Superseded to KH-25-100-38-S)

Note: (after S/N 3633510943)

$3.99

$

Usually ships in 2-5 days

0

24

MTD KH-32-086-03-S

SCREW, SET

Note: (before S/N 3633510953)

$3.49

$

Usually ships in 2-5 days

0

24

White Outdoor KH-25-086-128-S

SCREW, SET
(Superseded to KH-25-086-168-S)

Note: (after S/N 3633510943)

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor KH-24-599-02-S

PIVOT, ROCKER ARM

Note: (before S/N 3633510953)

$2.49

$

In Stock, Qty 8

0

25

White Outdoor KH-25-599-01-S

PIVOT, ROCKER ARM

Note: (after S/N 3633510943)

$2.99

$

In Stock, only 2 left!

0

26

White Outdoor KH-12-086-16

SCREW, FLG M10X1.5X90
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

27

MTD KH-32-086-04-S

SCREW, FLG M6X1.0X45

Note: (before S/N 3633510953)

$

$

Not available

27

White Outdoor KH-32-072-04-S

STUD, ROCKER

Note: (after S/N 3633510943)

$4.99

$

In Stock, only 3 left!

0

28

MTD KH-32-096-06-S

KIT, BREATHER VALVE COVER

Note: (includes 2 [qty 1])

$29.99

$

In Stock, only 1 left!

0

29

White Outdoor KH-24-445-01

STRAP, LIFTING
(Superseded to KH-25-445-03-S)

$

$

Not available

30

White Outdoor KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 13

0

31

White Outdoor KH-32-096-04-S

KIT, BREATHER COVER

Note: (includes 32)

$2.99

$

Usually ships in 2-5 days

0

32

White Outdoor KH-32-041-01-S

GASKET, BREATHER COVER - DISC.

$

$

Not available

33

White Outdoor KH-32-050-01-S

FILTER, BREATHER

$2.99

$

In Stock, only 2 left!

0

34

White Outdoor KH-32-146-09-S

PLATE, GUIDE

Note: (after S/N 3633510943)

$2.99

$

In Stock, only 3 left!

0

White Outdoor KH-24-041-49-S

GASKET, EXHAUST

Note: NOT ILLUSTRATED

$

$

Not available

White Outdoor KH-24-153-27-S

O-RING, INTAKE PORT

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 8

0

White Outdoor KH-32-755-03-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED (Services 1 Head. Quantities listed are for both heads) (includes 5-11,19,22,25,34)

$69.99

$

In Stock, only 1 left!

0
