LT-4600 H (13AX79TH090) - White Outdoor 46" Lawn Tractor (2008) Engine Ignition & Electrical Parts Diagram

46" Lawn Tractor

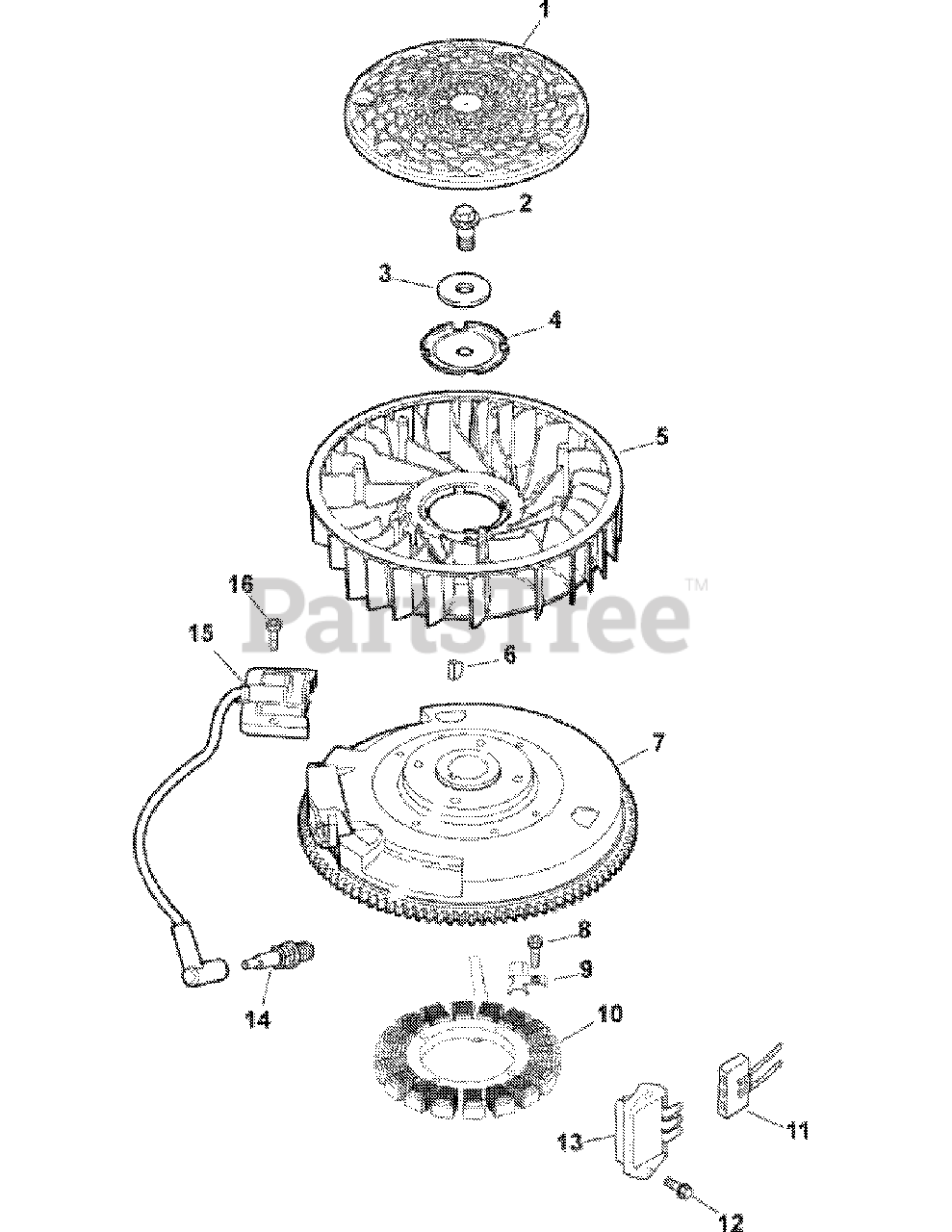

Engine Ignition & Electrical Parts Diagram

  • Title

1

White Outdoor KH-20-162-02-S

SCREEN, GRASS

$7.99

$

In Stock, only 2 left!

0

2

MTD KH-25-086-125-S

SCREW, HEX FLANGE
(Superseded to KH-25-086-362-S)

$4.49

$

In Stock, only 2 left!

0

3

MTD KH-25-468-09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0

4

White Outdoor KH-20-146-05-S

PLATE, FAN MOUNTING

$2.99

$

In Stock, only 2 left!

0

5

MTD KH-20-157-01-S

FAN

$24.99

$

In Stock, only 2 left!

0

6

White Outdoor KH-X-42-15

KEY, 3/16" X 5/8"

$

$

Not available

7

White Outdoor KH-20-025-35-S

FLYWHEEL ASSEMBLY
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

MTD KH-20-086-22-S

SCREW, TRX HD DRIVE FASTENER - USE M-548025-S
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 1 left!

0

9

White Outdoor KH-20-154-04-S

CLIP, WIRE

$2.99

$

Usually ships in 2-5 days

0

10

White Outdoor KH-237878

KIT, 15 AMP STATOR

Note: (includes 25 452 01-S)

$

$

Not available

11

White Outdoor KH-236602-S

CONNECTOR (3 CONTACT)
(Superseded to KH-25-155-41-S)

$29.99

$

In Stock, only 1 left!

0

12

White Outdoor KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.99

$

In Stock, Qty 20+

0

13

White Outdoor KH-41-403-10-S

REGULATOR/RECTIFIER
(Superseded to KH-25-403-37-S)

$126.99

$

Usually ships in 2-5 days

0

14

769-3336

PLUG, SPARK

$

$

Not available

15

White Outdoor KH-20-584-03-S

MODULE, IGNITION (CDI FIXED)

$35.99

$

In Stock, Qty 7

0

16

White Outdoor KH-M-561025-S

SCREW, SCKT THRD FRM M5X0.8X25

$2.49

$

In Stock, only 3 left!

0

White Outdoor KH-20-176-07-S

HARNESS, WIRING
(Superseded to KH-20-176-20-S)

Note: NOT ILLUSTRATED

$30.99

$

In Stock, only 1 left!

0

White Outdoor KH-25-452-01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
