LT-4600 H (13AX79TH090) - White Outdoor 46" Lawn Tractor (2008) Engine Controls Parts Diagram

46" Lawn Tractor

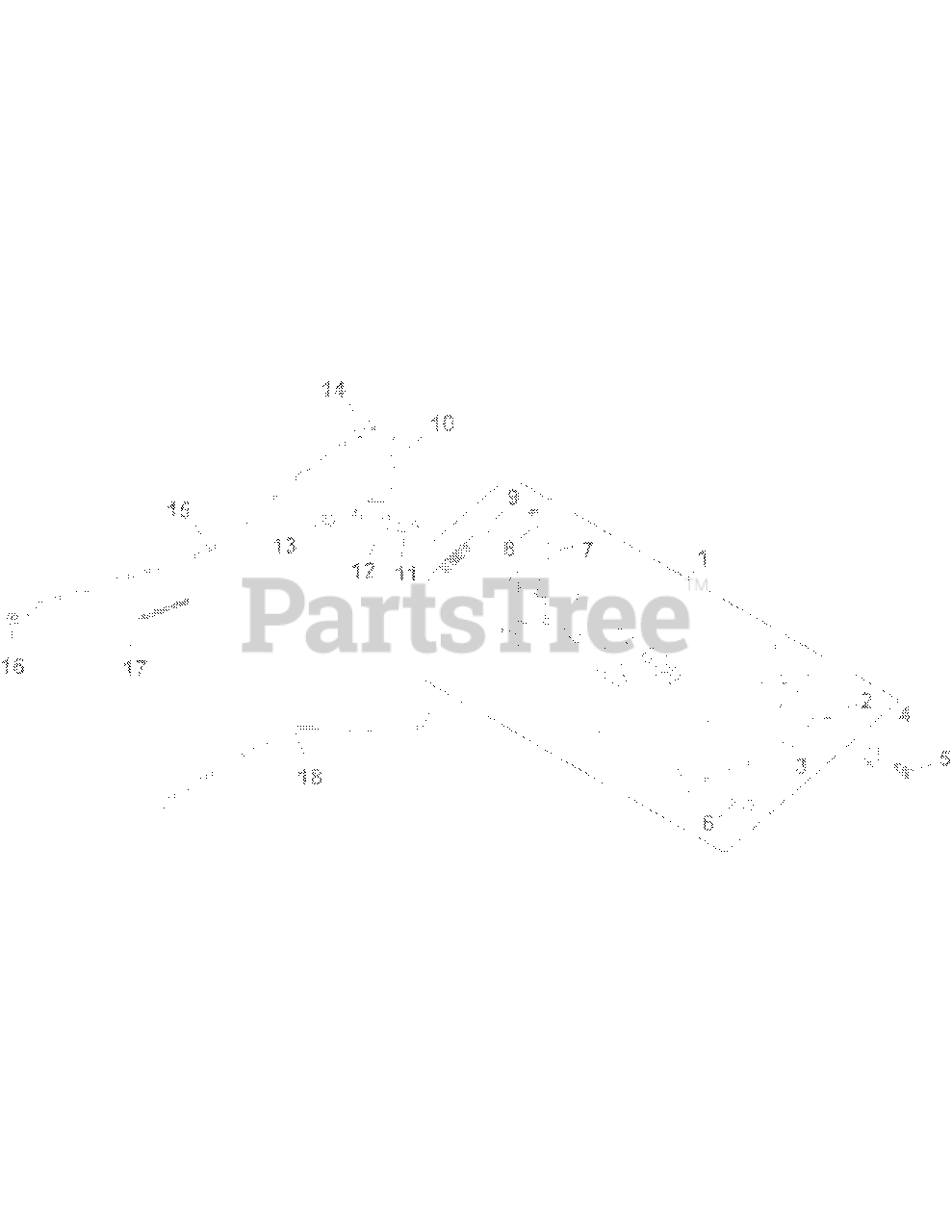

Engine Controls Parts Diagram

  • Title

1

White Outdoor KH-20-536-05-S

KIT, SPEED CONTROL ASSEMBLY - USE 20 536 06-S
(Superseded to KH-20-536-06-S)

Note: (includes 2,3,6-9)

$52.99

$

In Stock, only 1 left!

0

2

MTD KH-20-086-10-S

SCREW, PHL THD FRM M4X0.7X25

$2.49

$

In Stock, only 3 left!

0

3

White Outdoor KH-12-089-11

SPRING, SPEED CONTROL (SHORT)
(Superseded to KH-12-089-11-S)

$2.49

$

In Stock, only 4 left!

0

4

White Outdoor KH-12-237-01

CLAMP, CABLE
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

5

White Outdoor KH-M-545016-S

SCREW, FLG THD FRM M5X.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

6

KH-M-664020

SCREW, LBD SKT M6x1.0x20

$

$

Not available

7

White Outdoor KH-12-089-11-S

SPRING, SPEED CONTROL (SHORT)

$2.49

$

In Stock, only 4 left!

0

8

MTD KH-20-086-10-S

SCREW, PHL THD FRM M4X0.7X25

$2.49

$

In Stock, only 3 left!

0

9

MTD KH-20-089-11-S

SPRING, GOVERNOR

$2.49

$

In Stock, Qty 7

0

10

MTD KH-20-090-02-S

LEVER, GOVERNOR
(Superseded to KH-20-090-11-S)

$6.49

$

Usually ships in 2-5 days

0

11

White Outdoor KH-52-211-04

BOLT, RD HD SQ NCK 1/4-20X1"

$

$

Not available

12

White Outdoor KH-X-22-11

WASHER, INT TOOTH LOCK 1/4"

$

$

Not available

13

White Outdoor KH-12-100-07

NUT, HEX FLG 1/4-20"

$

$

Not available

14

White Outdoor KH-25-158-11

BUSHING, THROTTLE LINKAGE

$

$

Not available

15

MTD KH-20-079-04-S

LINKAGE, THROTTLE - USE 20 079 07-S
(Superseded to KH-20-079-07-S)

$3.99

$

In Stock, only 3 left!

0

16

White Outdoor KH-25-158-08

BUSHING, LINKAGE RETAINING

$5.99

$

Usually ships in 2-5 days

0

17

MTD KH-20-089-10-S

SPRING, LINKAGE

$3.99

$

In Stock, Qty 8

0

18

MTD KH-20-079-05-S

LINKAGE, CHOKE

$2.99

$

In Stock, Qty 5

0
