LT 4218 C - Electrolux/AYP Lawn Tractor (1995) CHASSIS Parts Diagram

Lawn Tractor

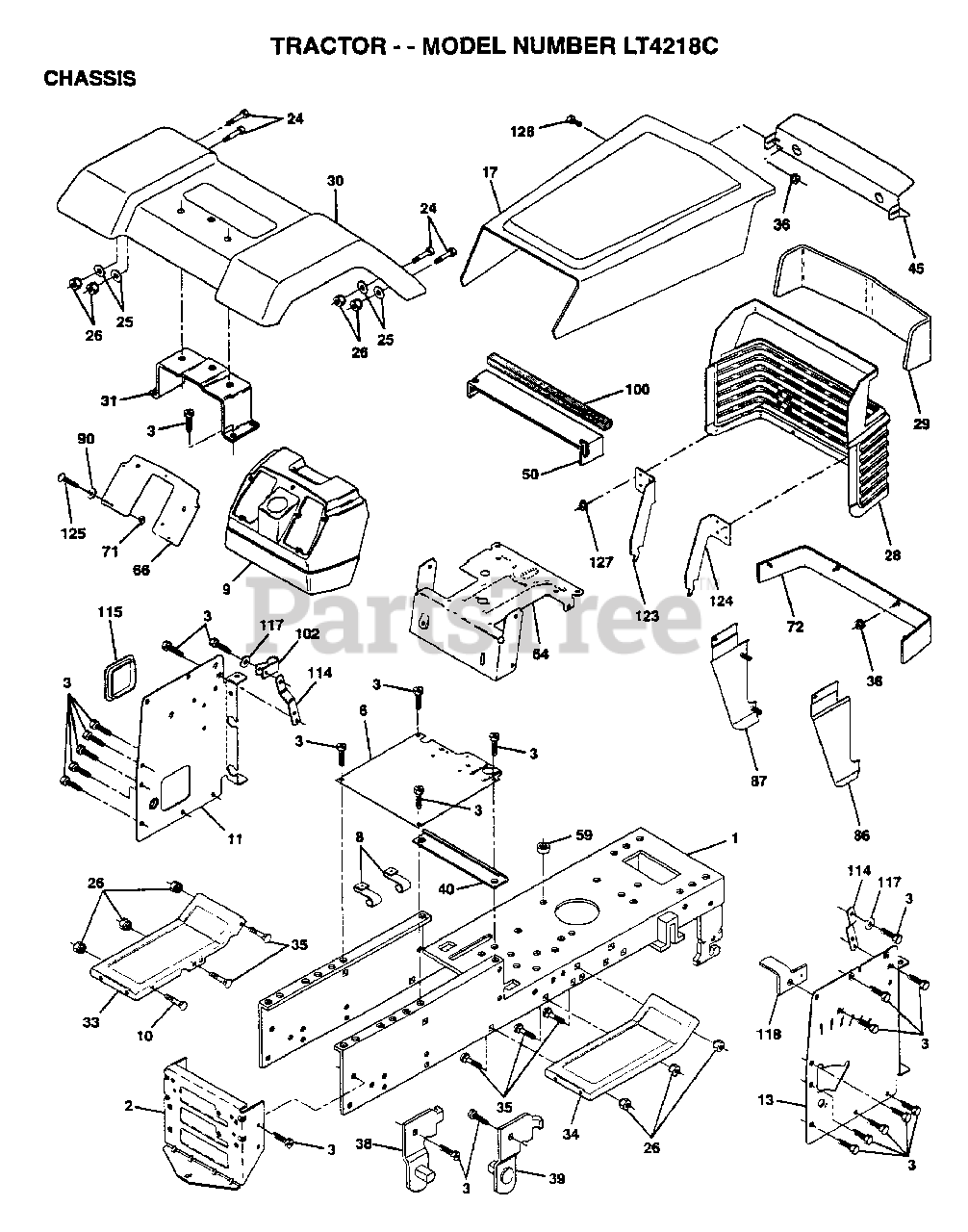

CHASSIS Parts Diagram

  • Title
1

Electrolux/AYP 145501

CHASSIS.WLD.11GA
(Superseded to 532135034)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 145206

SUB= 145206X431

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 145203

DASH.PLASTIC.BLK

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 145218

PANEL.DASH.LH.
(Superseded to 532145218)

$

$

Not available

13

Electrolux/AYP 145223

PANEL.DASH.RH.NOT
(Superseded to 582963801)

$26.99

$

Usually ships in 3-10 days

0

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

17

Electrolux/AYP 123801X550

HOOD/GRILLE ASM

$107.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 140181

PLATE.SUPT.BATTER
(Superseded to 532140181)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

28

Electrolux/AYP 140671

GRILLE ASM WELD

$

$

Not available

$

$

Not available

$

$

Not available

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X500

FOOTREST.LH.LT/GT

$5.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X500

FOOTREST.RH.LT/GT
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

41

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

45

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

50

Electrolux/AYP 124046X

"BAFFLE,HOOD"

$26.99

$

Usually ships in 3-10 days

0

59

$

$

Not available

60

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

61

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

64

Electrolux/AYP 145095

SUB= 150272
(Superseded to 532145095)

$

$

Not available

66

Electrolux/AYP 140942X011

PLATE DASH SILKSC

$

$

Not available

71

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

72

Electrolux/AYP 110350X550

STRAP FENDER ASM

$

$

Not available

86

Electrolux/AYP 123764X550

PANEL SIDE RH ASM
(Superseded to 583668301)

$5.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 123765X550

PANEL SIDE LH ASM

$

$

Not available

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

100

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

102

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

114

Electrolux/AYP 145349

BRACKET.SUPT.DASH
(Superseded to 532145349)

$

$

Not available

115

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

117

Electrolux/AYP 144283

WASHER.SERRATED.
(Superseded to 532144283)

$2.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 145595

BRACKET.CLUTCH.MC
(Superseded to 582964601)

$

$

Not available

123

Electrolux/AYP 144712

SUB= 149036
(Superseded to 149036)

$

$

Not available

124

Electrolux/AYP 144713

BRACKET.PICK.RH
(Superseded to 582962401)

$23.99

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

127

Electrolux/AYP 120579X

PAL NUT
(Superseded to 583663301)

$2.99

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 124201X

SCREW SPECIAL
(Superseded to 583668901)

$2.99

$

Usually ships in 3-10 days

0
