LT 4216 E - Electrolux/AYP Lawn Tractor (1996) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

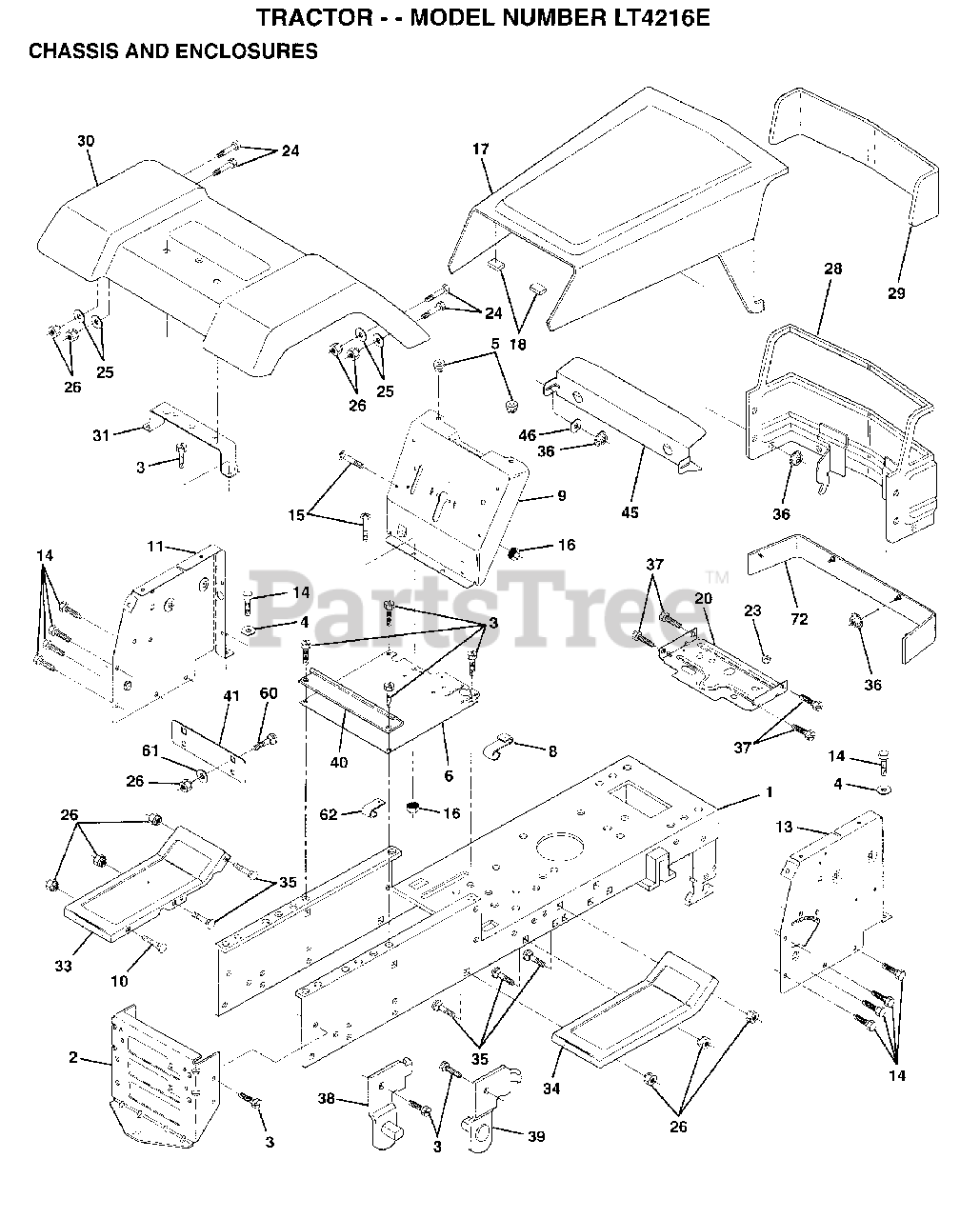

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 145501

CHASSIS.WLD.11GA
(Superseded to 532135034)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

6

Electrolux/AYP 145206

SUB= 145206X431

$

$

Not available

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 140072

SUB= 532142465

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 146965

PANEL.DASH.LH.
(Superseded to 155932)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 145660

CLIP.TINNERMAN
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 146959

PANEL.DASH.RH
(Superseded to 584317101)

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 139394X550

SUB= 159639X550
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 145210

PLATE.MTG.BTRY.TK
(Superseded to 532145210)

$

$

Not available

23

Electrolux/AYP 12428X

BUSHING SNAP NL BLK FUEL LINE

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 150208

GRILL QUADRA
(Superseded to 583097701)

$

$

Not available

29

Electrolux/AYP 150209

LENS QUADRA
(Superseded to 583679501)

$

$

Not available

30

Electrolux/AYP 141001X550

SUB= 140001X550

$

$

Not available

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X500

FOOTREST.LH.LT/GT

$5.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X500

FOOTREST.RH.LT/GT
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

40

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

41

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

48

Electrolux/AYP 138096

RIVET.PUSH.PLATE
(Superseded to 532138096)

$

$

Not available

49

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 142779

BRACE SUPT DASH
(Superseded to 532142779)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19081416

WASHER 9/32X7/8X 16 GA

$

$

Not available

53

Electrolux/AYP 144697

BRACKET.GRILLE.LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 17030814

SUB= 91817030814
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

BRACKET.GRILLE.RH
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 140547

DUCT.AIR.B&S.18HP
(Superseded to 532140547)

$11.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

60

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

61

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

68

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

$

$
