LT 4216 A - Electrolux/AYP Lawn Tractor (1994) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

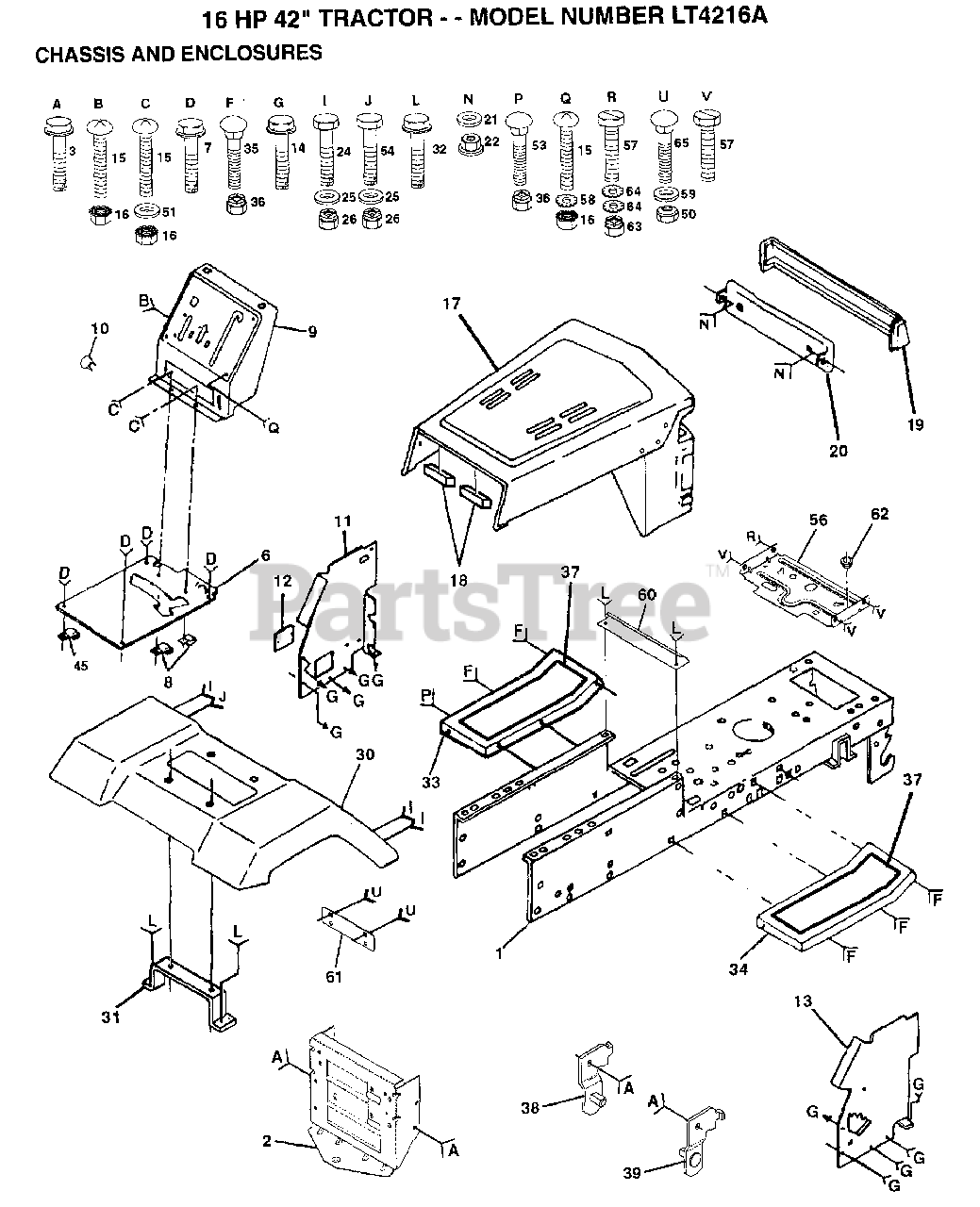

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 140341

SUB= 145501

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 140169

SUB= 145206X431

$

$

Not available

7

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

$

$

Not available

10

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 122795X

PANEL DASH LH

$5.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

13

Electrolux/AYP 124031X

SUB= 155934X010

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 141401X550

HOOD/GRILLE.ASM

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

19

Electrolux/AYP 133805

SUB= 133954
(Superseded to 133954)

$

$

Not available

20

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

21

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

24

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

31

Electrolux/AYP 139976

BRACKET SUPT FEND
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 105465X500

SUB= 145244X500

$

$

Not available

34

Electrolux/AYP 105464X500

SUB= 145243X500

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

45

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 19131216

WASHER
(Superseded to 819131216)

$

$

Not available

53

Murray 72140608

SUB= 72110608

$

$

Not available

54

Electrolux/AYP 74760614

SUB= 74760616

$

$

Not available

56

Electrolux/AYP 140281

SUB= 140281X431

$

$

Not available

57

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 19171416

WASHER
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

60

Electrolux/AYP 139977

SPACER FENDER LT

$

$

Not available

61

Electrolux/AYP 139978

PLATE EXTEN FEND

$

$

Not available

62

Murray 124028X

SUB= 532124028

$

$

Not available

63

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 11050500

LOCKWASHER.5/16.E
(Superseded to 811050500)

$

$

Not available

65

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0
