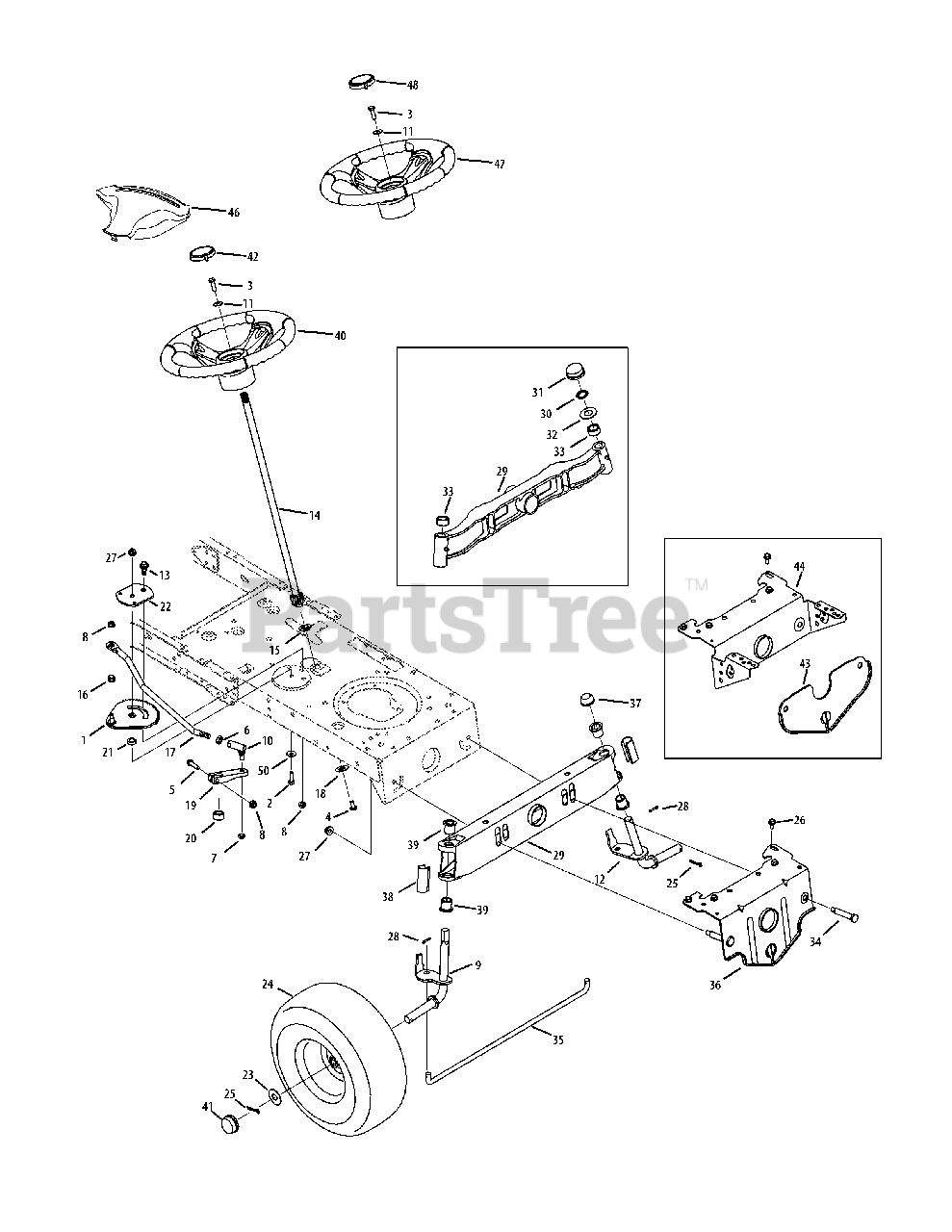

LT 4216 (13AM79KS897) - Columbia 42" Lawn Tractor (2014) Steering & Front Axle Parts Diagram

42" Lawn Tractor

Steering & Front Axle Parts Diagram

  • Title

1

MTD 617-04094

Steering Gear Assembly

$29.99

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Hd. Cap Scr 3/8-16 x 1,00 Gr. 5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw 5/16-18 x 1.00 Special

$6.99

$

In Stock, Qty 5

0

4

MTD 710-1309

Machine Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

6

MTD 912-0240

Hex Jam Nut 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-0214

Hex Cent-L Nut 3/8-24 Gr. B
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

8

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 938-04013

Axle Assembly, RH

$56.99

$

In Stock, only 3 left!

0

10

MTD 923-0448A

Ball Joint, 7/16 - 20

$24.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

12

MTD 938-04014A-0637

Axle Assembly, LH

$56.99

$

In Stock, only 3 left!

0

13

MTD 738-04141

Shoulder Screw .435 x .3485, 5/16-18

$5.49

$

In Stock, Qty 20+

0

14

MTD 938-05078

Steering Shaft, 5/8 Spline
(Superseded to 738P07154)

$56.99

$

In Stock, Qty 20+

0

15

MTD 941-04124

Hex Flange Bearing 5/8
(Superseded to 741-04124)

$5.49

$

In Stock, Qty 20+

0

16

MTD 941-04454

Plastic Bushing .375 ID x .5

$6.99

$

In Stock, only 3 left!

0

17

MTD 747-05385

Steering Drag Link
(Superseded to 747-05385A)

$20.99

$

In Stock, only 4 left!

0

18

MTD 948-0389

Cap, 1.25 x .16

$5.49

$

In Stock, Qty 20+

0

19

MTD 748-04278-0637

Steering Block
(Superseded to 748-04278)

$21.99

$

In Stock, only 1 left!

0

20

MTD 748-04068

Spacer .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

22

MTD 783-08577

Stabilizer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

23

MTD 736-04228A

Flat Washer .781 ID x 1.59 OD Special
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

24

MTD 634-05067-0961

Wheel Ass’y Complete 15 x 6 x 6

$84.99

$

Usually ships in 3-6 days

0

24

MTD 734-1731-0901

Tire Only

Note: (not shown)

$49.99

$

Usually ships in 3-6 days

0

24

MTD 634-05066-0662

Rim Only

Note: (not shown)

$105.99

$

Usually ships in 3-6 days

0

24

MTD 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

24

MTD 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

24

MTD 934-0255

Air Valve

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

25

MTD 714-0162

Cotter Pin 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

26

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

28

MTD 914-0474

Cotter Pin 1/8" Dia x .75
(Superseded to 714-0474)

$

$

Not available

29

MTD 683-0128B-0606

Pivot Bar (stamped steel)
(Superseded to 683-0128B-0637)

Note: (Columbia Model)

$97.99

$

In Stock, only 2 left!

0

30

MTD 726-04035

Push Nut 3/4"

$6.99

$

In Stock, only 2 left!

0

31

MTD 731-04693

Axle End Cap

$4.99

$

In Stock, only 2 left!

0

32

MTD 936-0316

Flat Washer .78 x 1.59 x .060
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

33

MTD 748-04068

Spacer .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-04128

Shoulder Screw .500 x 2.380, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

35

MTD 747-04299A

Tie Rod

$30.99

$

In Stock, only 1 left!

0

36

MTD 783-05326B-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

37

MTD 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

38

MTD 731-04057A

Axle End Cap, Standard

$5.49

$

In Stock, Qty 20+

0

39

MTD 741-0660A

Flange Bearing .760 ID x .937 OD

$3.49

$

In Stock, Qty 20+

0

40

MTD 631-04028

Steering Wheel, Standard Grip, 3 spoke

$69.99

$

In Stock, only 1 left!

0

40

MTD 631-04008B

Steering Wheel 3 spke, soft grip

$94.99

$

In Stock, only 3 left!

0

41

MTD 931-0484A

Plastic Hub Cap

$6.49

$

In Stock, Qty 20+

0

42

MTD 731-04039

Steering Wheel Cap (w/o logo)

Note: (Columbia Model)

$8.49

$

Usually ships in 3-6 days

0

43

MTD 783-04568-0637

Front Deck Hanger Bracket

$51.99

$

Usually ships in 3-6 days

0

44

MTD 783-04601C-0637

Pivot Bracket

$56.99

$

Usually ships in 3-6 days

0

46

MTD n/a

Steering Wheel Cover

Note: (not used in this application)

$

$

Currently unavailable

47

MTD n/a

Steering Wheel, 4 spoke

Note: (not used in this application)

$

$

Currently unavailable

48

MTD n/a

Steering Cap

Note: (not used in this application)

$

$

Currently unavailable

50

MTD 736-0331

Cupped Washer .390 x 1.130 x .062

$3.99

$

In Stock, Qty 20+

0
