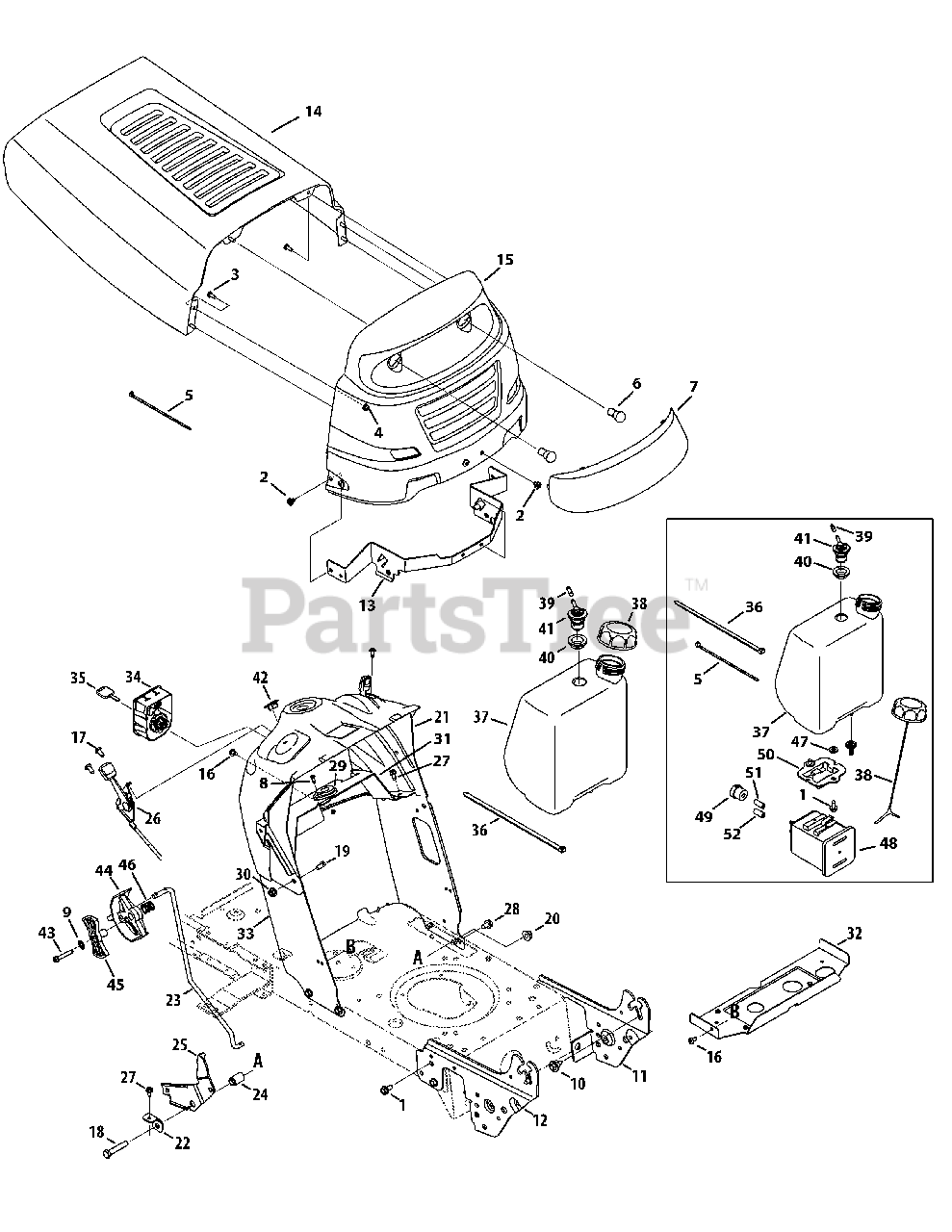

LT 4200 (13W2771S231) - Huskee 42" Lawn Tractor (2012) Hood Style 1 Parts Diagram

42" Lawn Tractor

Hood Style 1 Parts Diagram

  • Title

1

MTD 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

6

MTD 925-0963

Miniature Lamp 12V Socket

$7.49

$

In Stock, Qty 5

0

7

MTD 731-04949A

Lens Grill

$26.99

$

In Stock, only 3 left!

0

8

MTD 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-3006

Lock Washer, 1/4

$6.49

$

Usually ships in 3-6 days

0

10

MTD 738-04091A

Shoulder Screw .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

MTD 783-05327B-0637

Suppport Bracket LH

$40.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0637

Suppport Bracket RH
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

14

MTD 783-05684-0638

Hood - Red

$

$

Not available

14

MTD 783-05684-0662

Hood - Gray

$180.99

$

Usually ships in 3-6 days

0

15

MTD 783-05685-0638

Grill - Red
(Superseded to 783-05685A-0638)

$140.99

$

Usually ships in 3-6 days

0

15

MTD 783-05685-0662

Grill - Gray
(Superseded to 783-05685A-0662)

$140.99

$

Usually ships in 3-6 days

0

16

MTD 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

17

MTD 710-04483

Screw 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

18

MTD 710-3144

Hex Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

20

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 931-08054

Dash, Upper
(Superseded to 931-08054A)

$51.99

$

Usually ships in 3-6 days

0

22

MTD 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

23

MTD 747-05398

Speed Control Rod

$11.99

$

Usually ships in 3-6 days

0

24

MTD 750-04465C

Flange Spacer .39 x .671 x 1.095

$4.49

$

Usually ships in 3-6 days

0

25

MTD 783-06991-0637

Transmission Speed Latch

$9.49

$

In Stock, only 1 left!

0

26

MTD 746-04367

Throttle/Choke Control Cable
(Superseded to 946-04367A)

$40.99

$

In Stock, only 1 left!

0

27

MTD 710-1652

Tap Screw, 1/4-20, 0.625

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

MTD 741-0587

Bearing, .628 ID x 1.36

$4.49

$

In Stock, Qty 9

0

30

MTD 712-04063

Flange lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

MTD 783-06785A-0637

Bracket, Steering Support
(Superseded to 783-06785C-0637)

$9.99

$

In Stock, only 1 left!

0

32

MTD 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$28.99

$

Usually ships in 3-6 days

0

33

MTD 783-06811-0637

Dash, Lower Powder Black
(Superseded to 783-06811F-0637)

Note: Huskee Model

$53.99

$

Usually ships in 3-6 days

0

33

MTD 783-06811-0691

Dash, Lower Black Jack
(Superseded to 783-06811F-0637)

Note: MTD Gold Model

$53.99

$

Usually ships in 3-6 days

0

34

MTD 925-04659

Key Switch Module

$44.99

$

In Stock, Qty 20+

0

35

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

36

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

37

MTD 951-04304

Fuel Tank, 1.36 Gallon
(Superseded to 951-04304B)

$111.99

$

Usually ships in 3-6 days

0

38

MTD 951-12179A

Fuel Cap
(Superseded to 951-12179C)

$38.99

$

In Stock, only 4 left!

0

38

MTD 951-12426

Fuel Cap, 2.25" EPA
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

39

MTD 751-12089-28

Hose Vent, 3/16

$8.99

$

In Stock, only 1 left!

0

40

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

41

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

42

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

43

MTD 710-0778

Hex Washer Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

44

MTD 731-07885A

Shift Lever
(Superseded to 731-07885B)

$11.99

$

In Stock, only 3 left!

0

45

MTD 731-07895

Index Control
(Superseded to 731-07895A)

$6.49

$

In Stock, Qty 7

0

46

MTD 732-04877

Compr. Spring, .72 OD x .78

$4.49

$

In Stock, only 2 left!

0

47

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

48

MTD 951-10589

5 Gallon Carbon Canister

$72.99

$

Usually ships in 3-6 days

0

49

MTD 951-10590

Vent Filter Canister

$15.99

$

Usually ships in 3-6 days

0

50

MTD 951-10610

Canister Adapter Bracket

$23.99

$

Usually ships in 3-6 days

0

51

MTD 751-10749-30

Fuel Hose, White

$36.99

$

Usually ships in 3-6 days

0

52

MTD 751-10750-28

Fuel Hose, Yellow

$

$

Not available

MTD 725-04567G

Harness, No RMC, Dual
(Superseded to 925-04567K)

Note: Not shown

$133.99

$

In Stock, only 2 left!
