LT 4140 - Husqvarna Lawn Tractor (1995-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

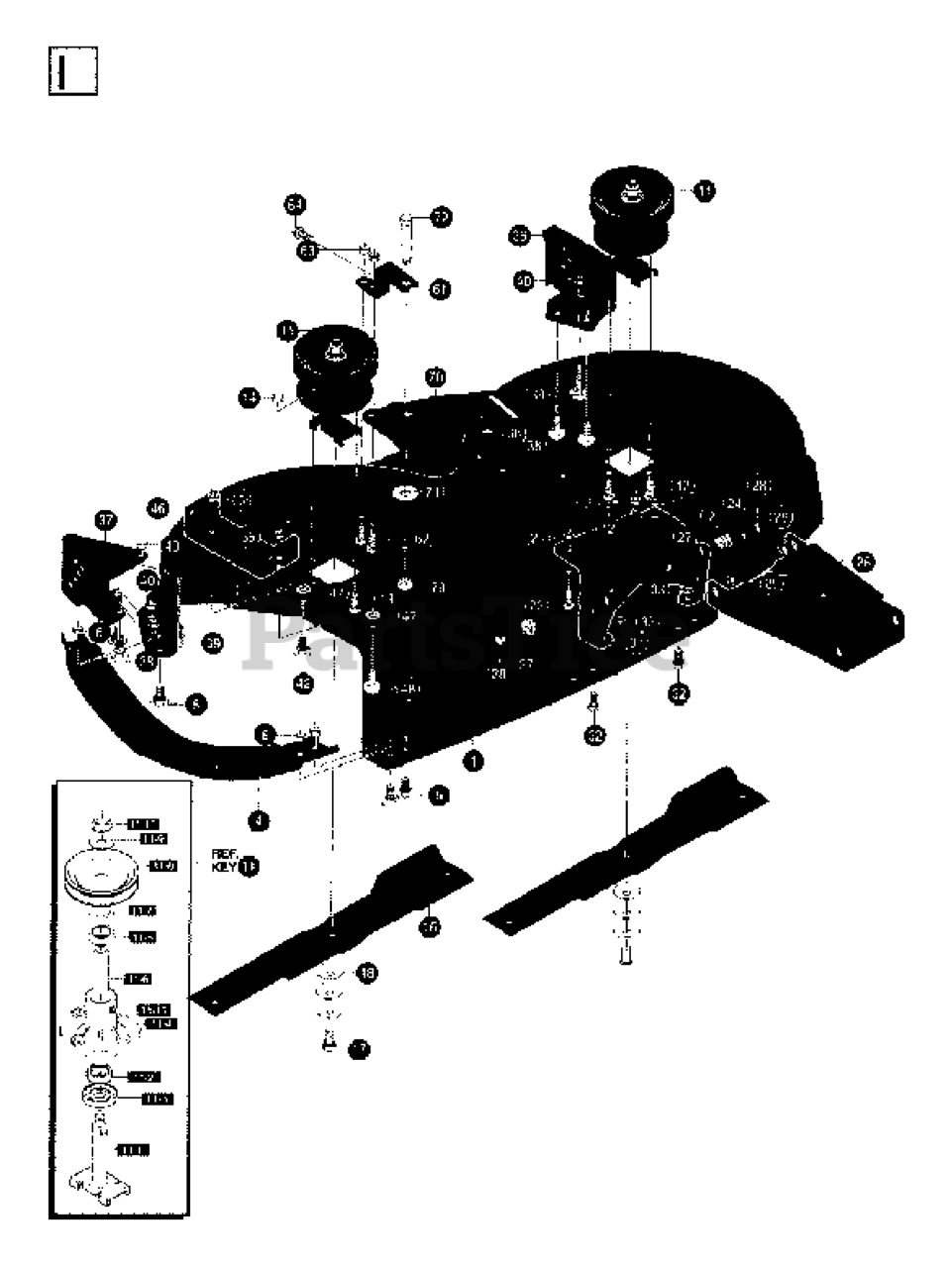

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
70

Husqvarna 533322117

NEEDS DESCRIPTION

$

$

Currently unavailable

$

$

Not available

$

$

Not available

55

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 533035498

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 533180077

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

48

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

13

Husqvarna 533300345

SCREW
(Superseded to 874930522)

$

$

Not available

11

Husqvarna 533317705

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 533326480

NEEDS DESCRIPTION

$

$

Currently unavailable

38

Husqvarna 533180077

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

$

$

Not available

17

Husqvarna 533039573

SCREW 3/8 - 16X1
(Superseded to 874610616)

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

63

Husqvarna 533044108

NUT
(Superseded to 533055273)

$

$

Not available

39

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 533317018

HOLDER, R.H.

$

$

Not available

31

Husqvarna 533312342

BRACKET, FRONT

$

$

Not available

33

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

61

$

$

Not available

47

Husqvarna 734115201

WASHER - M6

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

23

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 533325103

DECK ASSY
(Superseded to 533328051)

$

$

Not available

$

$

Not available

3

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

36

Husqvarna 533317041

HOLDER, L.H.

$

$

Not available

32

Husqvarna 533180077

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

$

$

Not available

74

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

26

Husqvarna 533310800

CHANNEL DRAWBAR

$

$

Not available

78

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 533180079

SCREW
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 533001498

NUT
(Superseded to 601000059)

$6.99

$

In Stock, only 2 left!

0

2

Husqvarna 533180077

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0
