LT 4140 H (E4014-040) - Husqvarna Lawn Tractor (1994-01) Transaxle Parts Diagram

Lawn Tractor

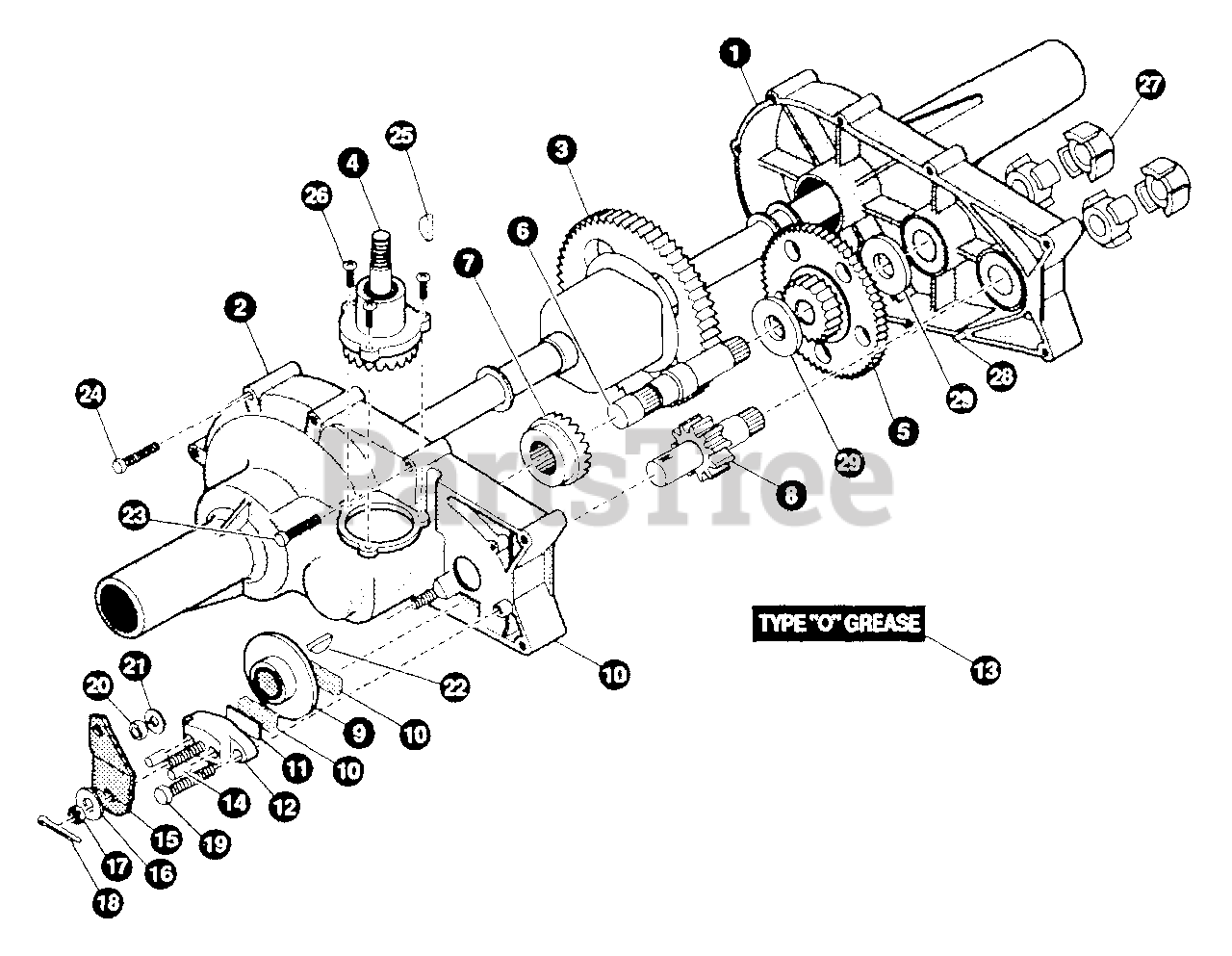

Transaxle Parts Diagram

  • Title
1

Husqvarna 324090

HOUSING HALF, LH

$

$

Currently unavailable

2

Husqvarna 324092

HOUSING HALF, RH

$

$

Currently unavailable

3

Husqvarna 324093

GEAR, DIFFERENTIAL

$

$

Currently unavailable

4

Husqvarna 324095

SHAFT, INPUT

$

$

Currently unavailable

$

$

Currently unavailable

6

Husqvarna 323656

SHAFT, DRIVE

$

$

Currently unavailable

7

Husqvarna 323655

GEAR, DRIVE PINION

$

$

Currently unavailable

8

Husqvarna 323660

SHAFT, PINION

$

$

Currently unavailable

9

Husqvarna 323663

DISC, BRAKE

$

$

Currently unavailable

10

Husqvarna 323685

PUCK, BRAKE

$

$

Currently unavailable

11

Husqvarna 323687

PLATE, PUCK

$

$

Currently unavailable

12

Husqvarna 324092

BRAKE, YOKE

$

$

Currently unavailable

13

Husqvarna 324089

TYPE "O" GREASE

$

$

Currently unavailable

14

Husqvarna 323681

PIN, BRAKE ACTUATING

$

$

Currently unavailable

15

Husqvarna 323665

ARM, BRAKE ACTUATOR

$

$

Currently unavailable

16

Husqvarna 323684

WASHER, FLAT

$

$

Currently unavailable

17

Husqvarna 323691

NUT, CASTLE

$

$

Currently unavailable

18

Husqvarna 323671

PIN, COTTER

$

$

Currently unavailable

19

Husqvarna 323711

BOLT, HEX W/PATCH

$

$

Currently unavailable

20

Husqvarna 323650

NUT, HEX

$

$

Currently unavailable

21

Husqvarna 323649

WASHER, SPRING LOCK

$

$

Currently unavailable

22

Husqvarna 323692

KEY, HI-PRO

$

$

Currently unavailable

23

Husqvarna 323677

BOLT, HEX SELF-TAP

$

$

Currently unavailable

24

Husqvarna 323678

BOLT, HEX SELF-TAP

$

$

Currently unavailable

25

Husqvarna 323688

KEY, HI-PRO

$

$

Currently unavailable

26

Husqvarna 329832

SCREW, HEX W/PATCH

$

$

Currently unavailable

27

Husqvarna 323661

COUPLING

$

$

Currently unavailable

28

Husqvarna 323699

PIN ROLL

$

$

Currently unavailable

29

Husqvarna 329833

WASHER, FLAT

$

$

Currently unavailable
