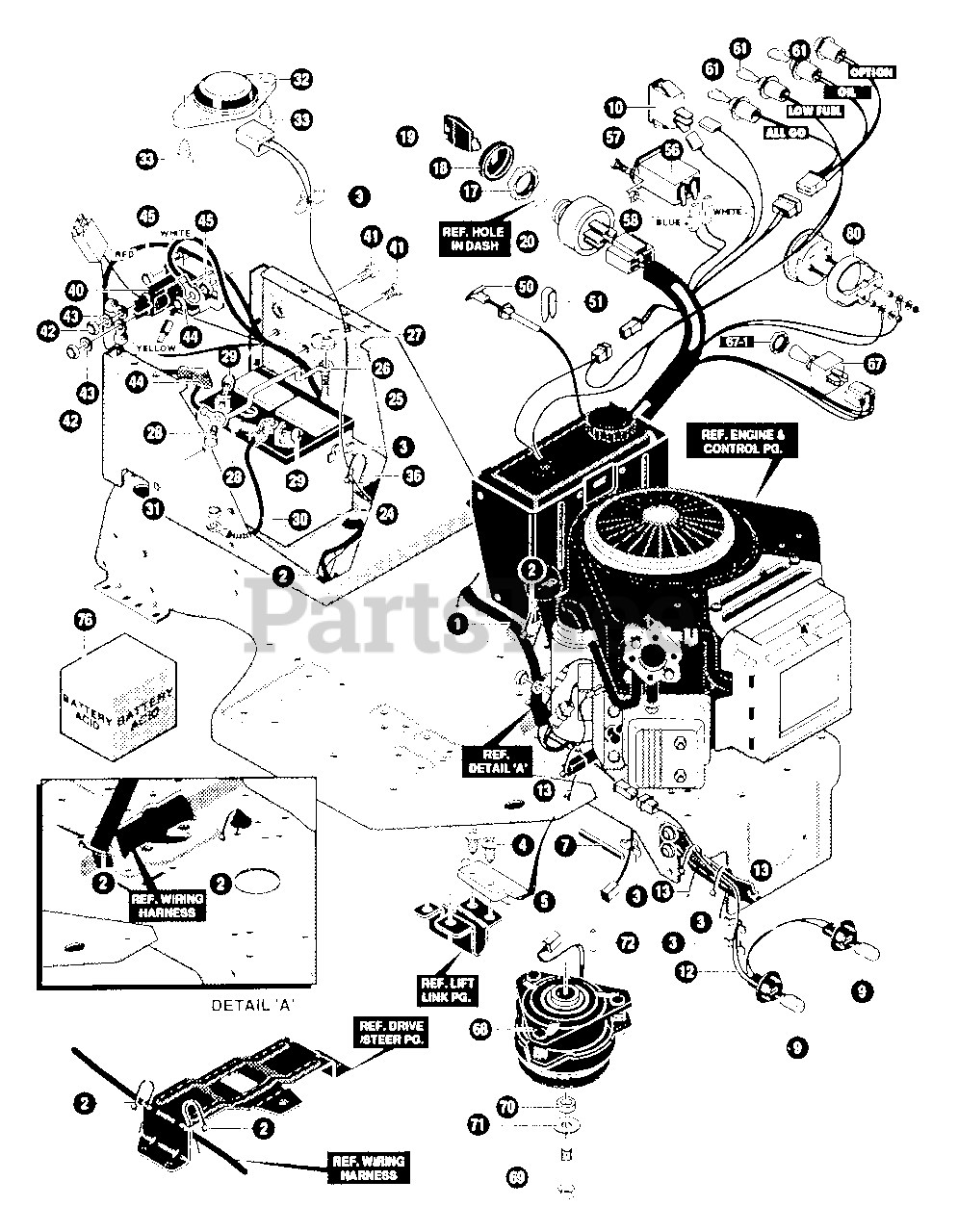

LT 4140 H (E4014-040) - Husqvarna Lawn Tractor (1994-01) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 331931

HARNESS,WIRING EURO VG/TW E/C AMP

$

$

Currently unavailable

2

Husqvarna 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Currently unavailable

3

Husqvarna 41482

PRESS CLIP, 1.380LG .255ID

$

$

Currently unavailable

4

Husqvarna 57220

SCREW, #12 X .50 PHPNHTAP BLK

$

$

Currently unavailable

5

Husqvarna 57476

SWITCH,SCR MNT DP NC NO BLK

$

$

Currently unavailable

7

Husqvarna 52151

EDGING,WIDE BLK

$

$

Currently unavailable

9

Husqvarna 52572

BULB, HEADLAMP

$

$

Currently unavailable

10

Husqvarna 300334

LIGHT SWITCH ON/OFF PANEL MNT

$

$

Currently unavailable

12

Husqvarna 303064

ASSY,LIGHT WIRE-1/4 TURN

$

$

Currently unavailable

13

Husqvarna 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Currently unavailable

17

Husqvarna 327352

NUT, 5/8-8ACME DELTA FOR BOOT

$

$

Currently unavailable

18

Husqvarna 300194

BOOT, IGN SWITCH

$

$

Currently unavailable

19

Husqvarna 327350

KEY,IGNITION GENERIC DELTA

$

$

Currently unavailable

20

Husqvarna 327355

SWITCH-IGN (AFTER FIRE) 3 POSN

$

$

Currently unavailable

24

Husqvarna 306694

BATTERY, 12V

$

$

Currently unavailable

25

Husqvarna 57551

ROD, BATTERY

$

$

Currently unavailable

26

Husqvarna 302912

ROD, BATTERY TOP .209DIA

$

$

Currently unavailable

27

Husqvarna 325232

NUT, WING 1/4-20 NYLON

$

$

Currently unavailable

28

Husqvarna 180020

SCREW, 1/4-20X.75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

29

Husqvarna 271172

NUT, 1/4-20 REGHEXKEPS

$

$

Currently unavailable

30

Husqvarna 55511

WIRE, GROUND, 12.5"

$

$

Currently unavailable

31

Husqvarna 271184

NUT, 5/16-18 HEXKEPS

$

$

Currently unavailable

32

Husqvarna 57547

SWITCH, SEAT

$

$

Currently unavailable

33

Husqvarna 160505

SCREW, 1/4-20X.38PHPNHMA

$

$

Currently unavailable

36

Husqvarna 57444

TIE, CABLE BLACK NYLON 5.62L

$

$

Currently unavailable

40

Husqvarna 310966

SOLENOID STARTER - ISOLATED

$

$

Currently unavailable

41

Husqvarna 187745

SCREW, 1/4-20X.75 HXSEMMA

$

$

Currently unavailable

42

Husqvarna 120368

NUT, 5/16-24 REGHEX

$

$

Currently unavailable

43

Husqvarna 138485

WASHER, EXLK .320X.61X.03

$

$

Currently unavailable

44

Husqvarna 271172

NUT, 1/4-20 REGHEXKEPS

$

$

Currently unavailable

45

Husqvarna 1502

NUT, 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

46

Husqvarna 57444

TIE CABLE BLACK NYLON 5.62L

$

$

Currently unavailable

50

Husqvarna 307113

CHOKE CONT BS TWIN ERO LONG

$

$

Currently unavailable

51

Husqvarna 314522

CLIP,CHOKE CONTROL

$

$

Currently unavailable

56

Husqvarna 304739

MINIATURE HOUR METER 4-40V DC

$

$

Currently unavailable

57

Husqvarna 320554

SCREW, #6-32X.50 PHPNMA CRSS

$

$

Currently unavailable

58

Husqvarna 271482

NUT, #6-32 HEXKEPS

$

$

Currently unavailable

61

Husqvarna 57769

BULB, INDICATOR

$

$

Currently unavailable

67

Husqvarna 309285

SWITCH,ELEC/GLUT ACTUATOR EURO

$

$

Currently unavailable

68

Husqvarna 326108

CLUTCH, EL 12/18HP REG CHARGER

$

$

Currently unavailable

69

Husqvarna 215649

SCREW, 7/16-20X5.50 HHCGR5BLPH

$

$

Currently unavailable

70

Husqvarna 319622

BRING, FL .510IDX.100DX.56L

$

$

Currently unavailable

71

Husqvarna 120383

WASHER, REGSPTLK .459X.78X.12

$

$

Currently unavailable

72

Husqvarna 305562

KEY, SQUARE .250SQX2.12LG

$

$

Currently unavailable

76

BATTERY ACID PACK, 80 OZ

Note: MAY BE PURCHASED LOCALLY AT HARDWARE STORE.

$

$

Not available

80

Husqvarna 315902

AMMETER ASSY

$

$

Currently unavailable

67-1

UNKNOWN

$

$

Not available
