LT 4140 H (E4014-040) - Husqvarna Lawn Tractor (1994-01) Drive/Steer Parts Diagram

Lawn Tractor

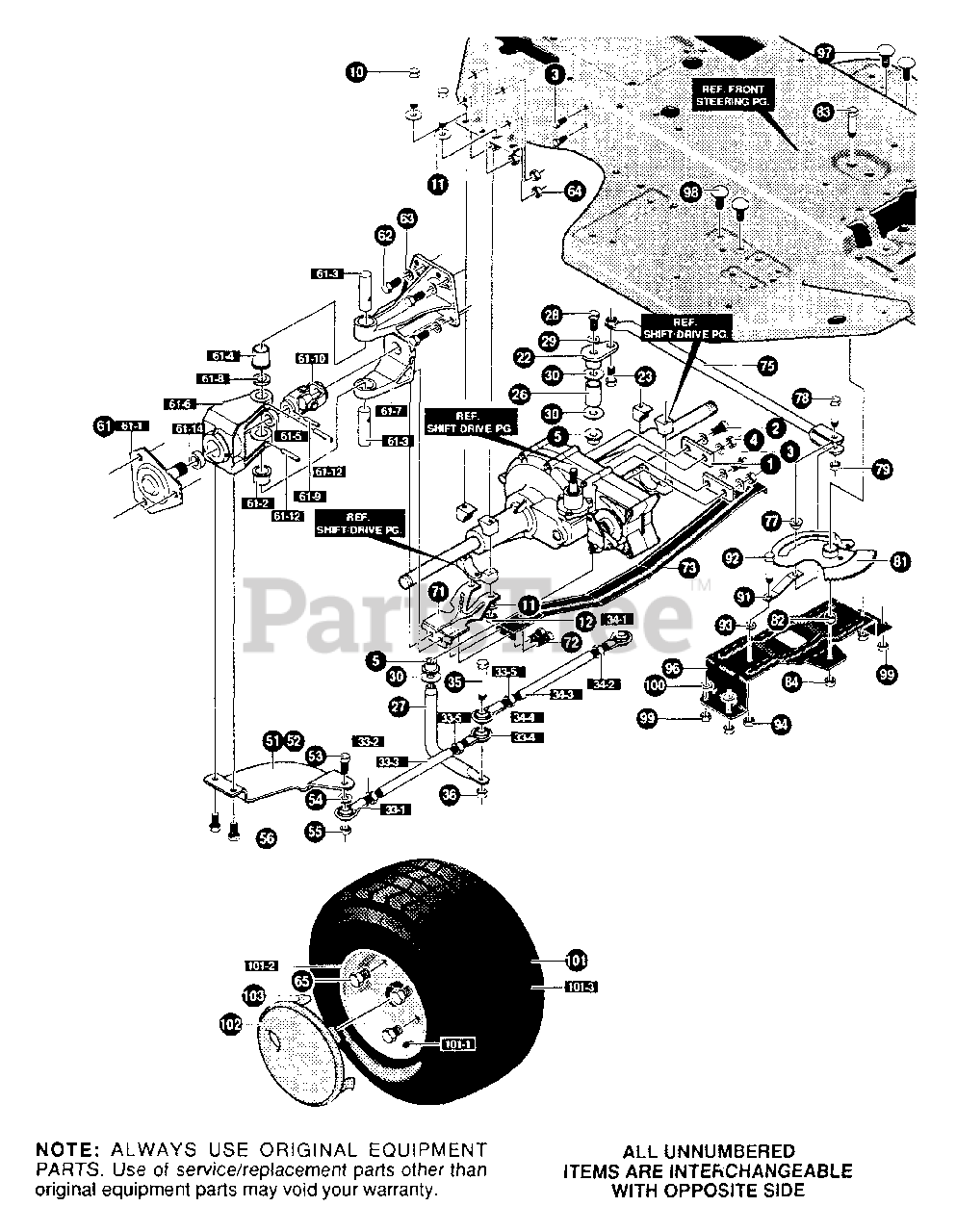

Drive/Steer Parts Diagram

  • Title

1

Husqvarna 314511

BRACKET, REAR PIVIOT HYDRO

$

$

Currently unavailable

2

Husqvarna 44811

SCREW, 1/4-20X .75 WAHHTAP

$

$

Currently unavailable

3

Husqvarna 120380

WASHER, REGSPTLK .263X.49X.07

$

$

Currently unavailable

4

Husqvarna 120375

NUT 1/4-20 REGHEX

$

$

Currently unavailable

5

Husqvarna 302303

BEARING SPINDLE FR W/HOLE

$

$

Currently unavailable

10

Husqvarna 180091

SCREW, 5/16-18X2.50 HHC
(Superseded to 532180091)

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 120393

WASHER, FLAT .344X.69X.065

$

$

Currently unavailable

12

Husqvarna 44108

NUT, 5/16-18 HWDFLCTRLK

$

$

Currently unavailable

22

Husqvarna 308719

PIVOT, STEERING

$

$

Currently unavailable

23

Husqvarna 12319

BOLT, .562X .340 HHSH 3/8-24

$

$

Currently unavailable

26

Husqvarna 313641

SPACER, STEERING SHAFT HYDRO

$

$

Currently unavailable

27

Husqvarna 313649

SHAFT, STEERING PIVOT HYDRO

$

$

Currently unavailable

28

Husqvarna 421051

SCREW, 5/16-24X1.00 HHC
(Superseded to 583384901)

$61.99

$

Usually ships in 3-10 days

0

29

Husqvarna 45602

WASHER, FLAT .333X.87X.119

$

$

Currently unavailable

30

Husqvarna 25177

WASHER, FLAT .765X1.19X.048

$

$

Currently unavailable

33

Husqvarna 323636

TIE ROD, ASSY RH EUR04WS&LFHYDR

$

$

Currently unavailable

33-1

Husqvarna 308384

BALL JOINT LH 3/8-24

$

$

Currently unavailable

33-2

Husqvarna 124925

NUT, 3/8-24 REGHEXJAM

$

$

Currently unavailable

33-3

Husqvarna 313642

ROD, TIE 1/2"D X 6.75LG

$

$

Currently unavailable

33-4

Husqvarna 304260

BALL JOINT, RH 3/8-24

$

$

Currently unavailable

33-5

Husqvarna 308399

NUT, 3/8-24 LH THD REGHJAM

$

$

Currently unavailable

34

Husqvarna 323637

TIE ROD, ASSY LH EURO 4WS&LFHYDR

$

$

Currently unavailable

34-1

Husqvarna 308384

BALL JOINT LH 3/8-24

$

$

Currently unavailable

34-2

Husqvarna 124925

NUT, 3/8-24 REGHEXJAM

$

$

Currently unavailable

34-3

Husqvarna 313643

ROD, TIE 1/2"D X 10.91 LG ZINC

$

$

Currently unavailable

34-4

Husqvarna 304260

BALL JOINT, RH 3/8-24

$

$

Currently unavailable

34-5

Husqvarna 308399

NUT, 3/8-24 LH THD REGHJAM

$

$

Currently unavailable

35

Husqvarna 181646

SCREW, 3/8-24X1.75 HHC

$

$

Currently unavailable

36

Husqvarna 412349

NUT 3/8-24 HXCTRLK

$

$

Not available

51

Husqvarna 304120853

ARM REAR WHL STR (FER) R.H

$

$

Currently unavailable

52

Husqvarna 304121853

ARM, REAR WHEEL STEER L.H

$

$

Currently unavailable

53

Husqvarna 181639

SCREW, 3/8-24X1.25 HHC

$

$

Currently unavailable

54

Husqvarna 120382

WASHER, REGSPTLK .393X.68X.10

$

$

Currently unavailable

55

Husqvarna 412349

NUT, 3/8-24 HXCTRLK

$

$

Not available

56

Husqvarna 47792

SCREW, 3/8-16X1.00 WAHHTAP BLK

$

$

Not available

61

Husqvarna 323736

U-JOINT, 4-WS HEAVY DUTY

$

$

Currently unavailable

61-1

Husqvarna 315264

HUB ASSEMBLY HEAVY

$

$

Currently unavailable

61-2

Husqvarna 12288

BEARING, FLSH .752 ID X .937OD X .75

$

$

Currently unavailable

61-3

Husqvarna 12289

PIN, STEERING HINGE

$

$

Currently unavailable

61-4

Husqvarna 12321

BEARING, FLSH

$

$

Currently unavailable

61-5

Husqvarna 12325

BEARING BALL 6203-2AA-3/4

$

$

Currently unavailable

61-6

Husqvarna 315267

BRACKET, STR PIVOT 6204 BEARING

$

$

Currently unavailable

61-7

Husqvarna 12466

BRACKET, STR PIVOT

$

$

Currently unavailable

61-8

Husqvarna 21682

WASHER, FLAT .765 X 1.25 X .042

$

$

Currently unavailable

61-9

Husqvarna 36311

PIN, GROOVED .250 DIA X 1.50LG

$

$

Currently unavailable

61-10

Husqvarna 320531

U-JOINT ASSEMBLY W/ZERK (LONG)

$

$

Currently unavailable

61-12

Husqvarna 456722

PIN SPRING .250 DIA X 1.50LG HVPL

$

$

Currently unavailable

61-14

Husqvarna 315268

BEARING, BALL 6204-2AA-7/8

$

$

Currently unavailable

62

Husqvarna 180079

SCREW 5/16-18X1.00 HHC

$

$

Currently unavailable

63

Husqvarna 120393

WASHER, FLAT .344X.69X.065

$

$

Currently unavailable

64

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

65

Husqvarna 181683

SCREW, 1/2-20X .50 HHC

$

$

Currently unavailable

71

Husqvarna 313645853

BRKT X-AXLE MTG 4WS HYDRO

$

$

Currently unavailable

72

Husqvarna 35498

SCREW, 5/16-18X.75 WAHHTAP

$

$

Currently unavailable

73

Husqvarna 322959853

BRACKET HYDRO 4WS SUPPORT

$

$

Currently unavailable

75

Husqvarna 313639

ROD R WHL STR 4WS (HYDRO)

$

$

Currently unavailable

77

Husqvarna 304116

CAM YOKE ROLLER

$

$

Currently unavailable

78

Husqvarna 304122

BOLT, .625 X1.175HHSH

$

$

Currently unavailable

79

Husqvarna 274654

NUT, 1/2-20 REGHXCTRLK

$

$

Currently unavailable

81

Husqvarna 302877

ASSY SECTOR GEAR 4WS

$

$

Currently unavailable

82

Husqvarna 302878

BRNG SLEV IDX ODX

$

$

Currently unavailable

83

Husqvarna 181709

SCREW 1/2-20X2.50 HHC

$

$

Not available

84

Husqvarna 274654

NUT, 1/2-20 REGHXCTRLK

$

$

Currently unavailable

91

Husqvarna 302594

FOLLOWER, ROLLER

$

$

Currently unavailable

92

Husqvarna 302588

BOLT .265X .800 HHSH 3/8-24

$

$

Currently unavailable

93

Husqvarna 446363

WASHER, FLAT .375X.88X.082

$

$

Currently unavailable

94

Husqvarna 412349

NUT, 3/8-24 HXCTRLK

$

$

Not available

96

Husqvarna 302583853

PLATE, PIVOT STEERING EURO

$

$

Currently unavailable

97

Husqvarna 35497

SCREW, 5/16-18X.50 WAHHTAP

$

$

Currently unavailable

98

Husqvarna 35498

SCREW, 5/16-18X.75 WAHHTAP

$

$

Currently unavailable

99

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

100

Husqvarna 446363

WASHER, FLAT .375X.88X.082

$

$

Currently unavailable

101

Husqvarna 316665

TIRE & RIM,20X10.00-8 WHITE

$

$

Currently unavailable

101-1

Husqvarna 24167

VALVE STEM

$

$

Currently unavailable

101-2

Husqvarna 316667

RIM, WHEEL

$

$

Currently unavailable

101-3

Husqvarna 313654

TIRE 20X10X8

$

$

Currently unavailable

102

Husqvarna 304441

HUB CAP, 8" EURO GREY

$

$

Currently unavailable

103

Husqvarna 306669

CLIP,HUBCAP TINN #C25467-017-4

$

$

Currently unavailable
