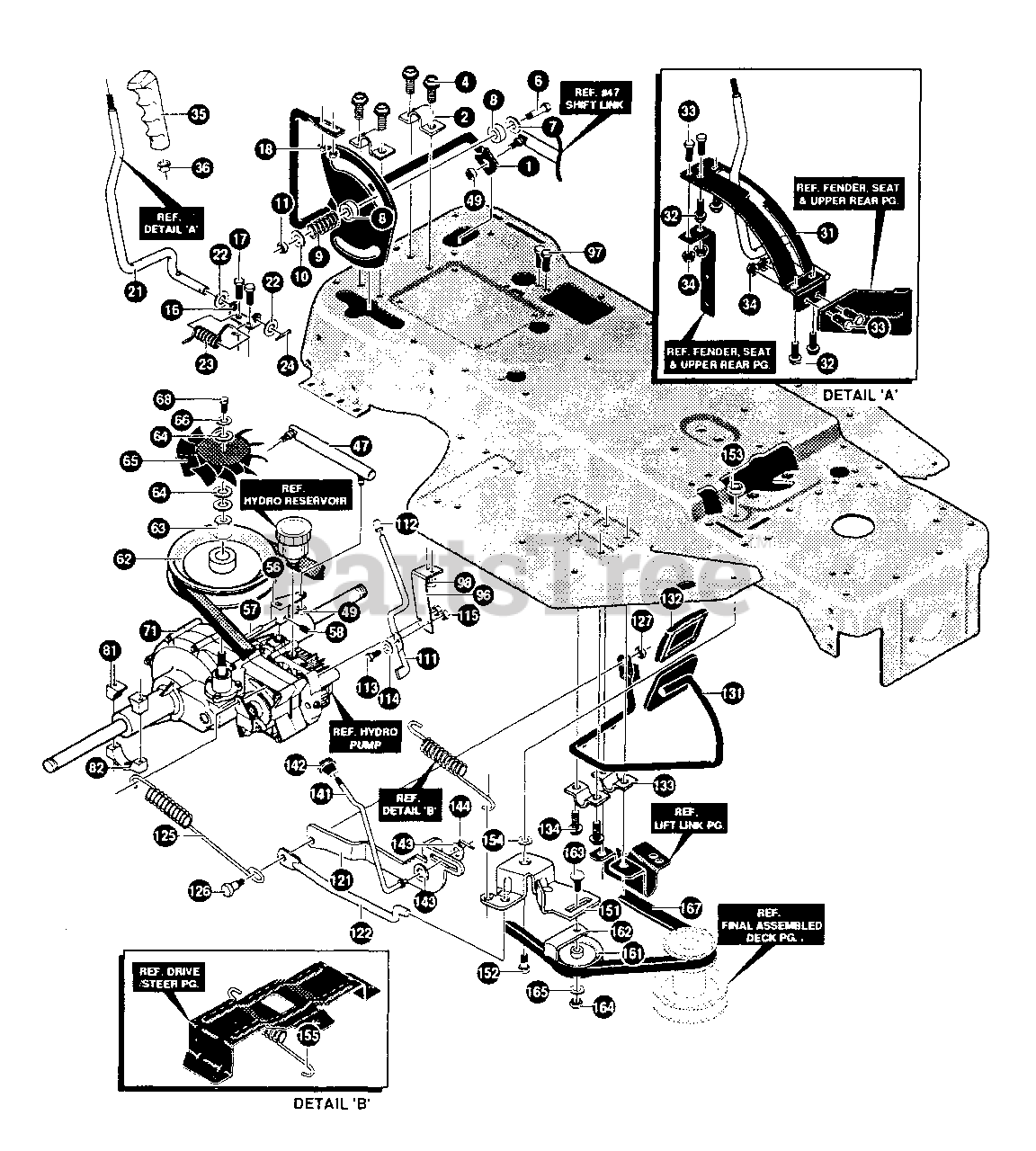

LT 4140 H (E4014-040) - Husqvarna Lawn Tractor (1994-01) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Husqvarna 310206853

SHIFT ROD, ASSY

$

$

Currently unavailable

2

Husqvarna 313271

BRACKET CL/BR ARM

$

$

Currently unavailable

4

Husqvarna 35497

SCREW, 5/16-18X.50 WAHHTAP

$

$

Currently unavailable

6

Husqvarna 180087

SCREW, 5/16-18X2.00 HHC

$

$

Not available

7

Husqvarna 845

WASHER, FLAT .390X1.25X .119

$

$

Currently unavailable

8

Husqvarna 49922

WASHER, FRICTION 1.25ODX.34ID

$

$

Currently unavailable

9

Husqvarna 29170

SPRING

$

$

Currently unavailable

10

Husqvarna 120393

WASHER, FLAT .344X.69X.065

$

$

Currently unavailable

11

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

16

Husqvarna 310356

BRACKET, PIVOT SHIFT LEVER

$

$

Currently unavailable

17

Husqvarna 180020

SCREW, 1/4-20X.75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

18

Husqvarna 46931

NUT, 1/4-20 WDFL MAC-LOCK

$

$

Currently unavailable

21

Husqvarna 326925

ROD SHIFT

$

$

Currently unavailable

22

Husqvarna 71073

WASHER, FLAT .469X.92X.065Y

$

$

Currently unavailable

23

Husqvarna 310336

SPRING-TORSION HYDRO SHIFT

$

$

Currently unavailable

24

Husqvarna 121222

PIN, COTTER .090 DIAX.75LG

$

$

Currently unavailable

31

Husqvarna 310263830

QUADRANT SHIFT HYDRO

$

$

Currently unavailable

32

Husqvarna 300302

SCREW, #10 X .50 HHTAPPST

$

$

Currently unavailable

33

Husqvarna 180020

SCREW, 1/4-20X.75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

34

Husqvarna 51335

NUT 1/4-20 WDFLWHIZ-LK

$

$

Currently unavailable

35

Husqvarna 304729

HANDLE 1/2-13 MOLDED

$

$

Currently unavailable

36

Husqvarna 120238

NUT 1/2-13 HEXJAM

$

$

Currently unavailable

47

Husqvarna 324936

SHIFT LINK ASS'Y .625DIA

$

$

Currently unavailable

49

Husqvarna 412349

NUT 3/8-24 HXCTRLK

$

$

Not available

56

Husqvarna 310180

ARM SPEED CONTROL HYDRO

$

$

Currently unavailable

57

Husqvarna 456652

PIN SPRING .187DIAX.88LG HVPL

$

$

Currently unavailable

58

Husqvarna 102570

SCREW 1/4-20X.38NYLALHSETCPPT

$

$

Currently unavailable

62

Husqvarna 310098

PULLEY ASSY HYDRO

$

$

Currently unavailable

63

Husqvarna 310094

NUT PULLEY 1/2-20 AND 1/4-20

$

$

Currently unavailable

64

Husqvarna 57626

WASHER, FLAT .281X1.25X.06

$

$

Currently unavailable

65

Husqvarna 308523

FAN HYDRO 7.00DIA-10 BLADES

$

$

Currently unavailable

66

Husqvarna 120380

WASHER, REGSPTLK .263X.49X.07

$

$

Currently unavailable

68

Husqvarna 180020

SCREW, 1/4-20X.75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

71

Husqvarna 326769

TRANSAXLE, HG #217-1010S

$

$

Currently unavailable

81

Husqvarna 310813

MOUNTING BLOCK LH HYDRO

$

$

Currently unavailable

82

Husqvarna 310187

MOUNTING BLOCKS HYDRO

$

$

Currently unavailable

96

Husqvarna 310179

STABILIZER BRACKET

$

$

Currently unavailable

97

Husqvarna 180077

SCREW 5/16-18X.75 HHC

$

$

Currently unavailable

98

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

111

Husqvarna 310261

ROD-RELIEF VALVE

$

$

Currently unavailable

112

Husqvarna 314969

CAP MEMORY ROD .38ID X .75

$

$

Currently unavailable

113

Husqvarna 310088

BOLT .250X.312 HHSH 1/4-20

$

$

Currently unavailable

114

Husqvarna 2483

WASHER .39IDX1.25DX.07 BELLVIL

$

$

Currently unavailable

115

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

121

Husqvarna 310260

LEVER PARK BRAKE

$

$

Currently unavailable

122

Husqvarna 314738

ROD CLUTCH

$

$

Currently unavailable

125

Husqvarna 325009

SPRING BRAKE HG HYDRO (EURO)

$

$

Currently unavailable

126

Husqvarna 310087

BOLT .500X.500 HHSH 5/16-18

$

$

Currently unavailable

127

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

131

Husqvarna 310257853

ASSY WELD CL/BR ROD

$

$

Currently unavailable

132

Husqvarna 302335

PAD CLUTCH/BRAKE MOLD W/L

$

$

Currently unavailable

133

Husqvarna 313271

BRACKET CL/BR ARM

$

$

Currently unavailable

134

Husqvarna 35497

SCREW, 5/16-18X.50 WAHHTAP

$

$

Currently unavailable

141

Husqvarna 304217

ROD PARKING BRAKE

$

$

Currently unavailable

142

Husqvarna 304367

KNOB PARK BRAKE

$

$

Currently unavailable

143

Husqvarna 120385

WASHER, FLAT .250X.56X.049

$

$

Currently unavailable

144

Husqvarna 121223

PIN COTTER .062 DIAX .75LG

$

$

Currently unavailable

151

Husqvarna 314786

ARM IDLER

$

$

Currently unavailable

152

Husqvarna 310269

BOLT .621X.143 HHSH 5/16-18

$

$

Currently unavailable

153

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

154

Husqvarna 45602

WASHER, FLAT .333X.87X.119

$

$

Currently unavailable

155

Husqvarna 313660

SPRING,CLUTCH .113X.750X6.88

$

$

Currently unavailable

161

Husqvarna 303031

PULLEY, IDLER V4L 3.12EFF DIA

$

$

Currently unavailable

162

Husqvarna 39659

RETAINER, BELT

$

$

Currently unavailable

163

Husqvarna 45892

BOLT, 3/8-16X1.50 CARR

$

$

Currently unavailable

164

Husqvarna 120377

NUT 3/8-16 REGHX

$

$

Currently unavailable

165

Husqvarna 120382

WASHER, REGSPTLK .393X.68X.10

$

$

Currently unavailable

167

Husqvarna 310275

BELT V 4L 82.5 HYDRO TRACTION

$

$

Currently unavailable
