LT 4140 H (E4014-040) - Husqvarna Lawn Tractor (1994-01) Deck (A) Parts Diagram

Lawn Tractor

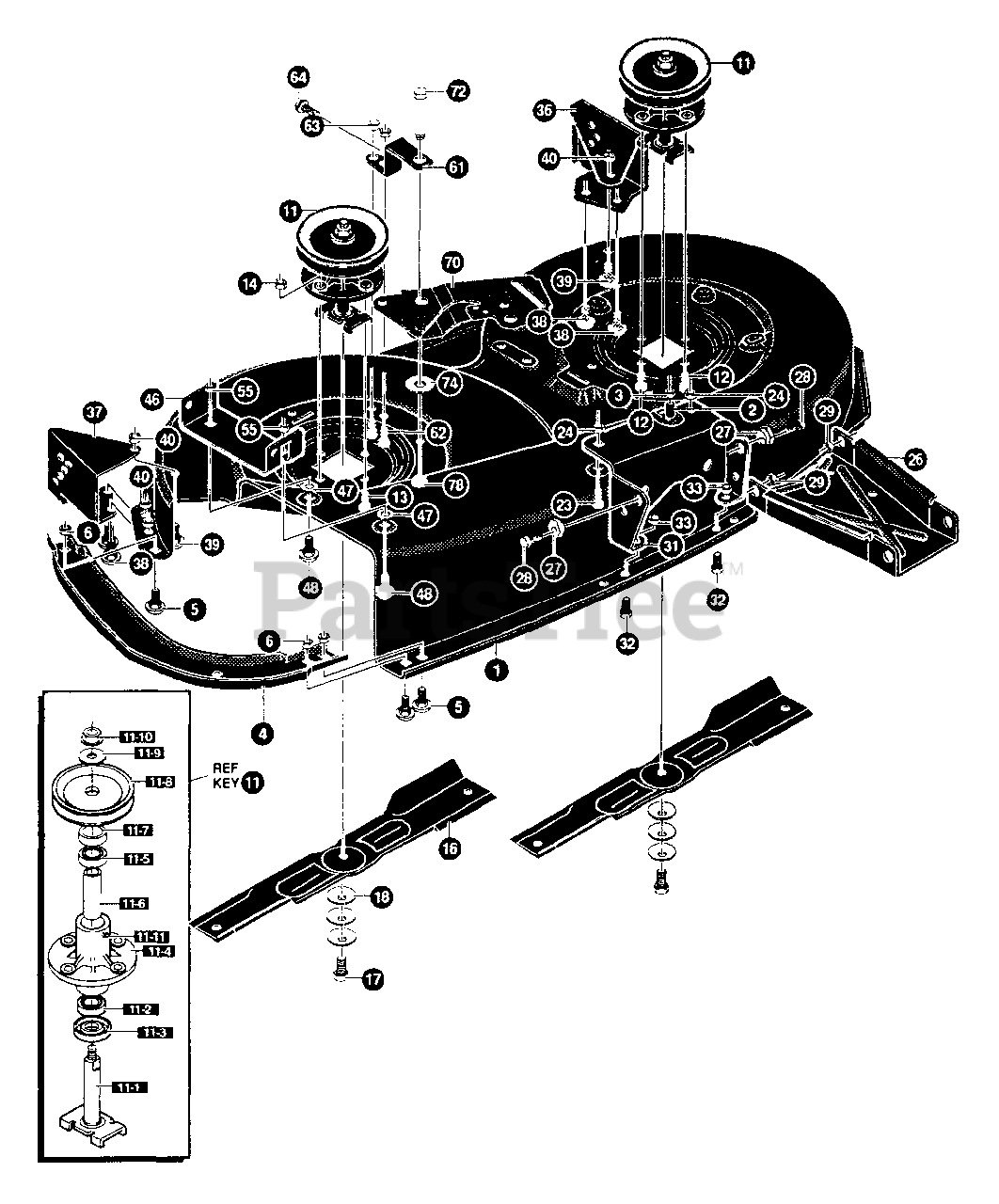

Deck (A) Parts Diagram

  • Title

1

Husqvarna 325103

MOWER DECK KIT 40" LF/EURO

$

$

Currently unavailable

2

Husqvarna 180077

SCREW, 5/16-18X.75 HHC

$

$

Currently unavailable

3

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

4

Husqvarna 326480

TOE GUARD - MULCHER

$

$

Currently unavailable

5

Husqvarna 57072

BOLT 5/16-18X.63 CARRLN
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

11

Husqvarna 317705

QUILL 36/40/43 W/ZERKS

$

$

Currently unavailable

12

Husqvarna 35498

SCREW, 5/16-18X.75 WAHHTAP

$

$

Currently unavailable

13

Husqvarna 300345

SCREW, 5/16-18X1.38 WAHHTAP

$

$

Currently unavailable

14

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

16

Husqvarna 313316

BLADE, 40" STD-LIFT 20.32

$

$

Currently unavailable

17

Husqvarna 39573

SCREW, 3/8-24X1.00 NYLHHC

$

$

Currently unavailable

18

Husqvarna 2483

WASHER, .39IDX1.25DX.07 BELLVIL

$

$

Currently unavailable

23

Husqvarna 57072

BOLT, 5/16-18X.63 CARRLN
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

26

Husqvarna 310800

CHANNEL DRAWBAR 40 EURO

$

$

Currently unavailable

27

Husqvarna 58247

NUT, ADJUST

$

$

Currently unavailable

28

Husqvarna 180079

SCREW 5/16-18X1.00 HHC

$

$

Currently unavailable

29

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

31

Husqvarna 312342

BRACKET FRONT

$

$

Currently unavailable

32

Husqvarna 180077

SCREW, 5/16-18X.75 HHC

$

$

Currently unavailable

33

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

36

Husqvarna 317041

BRACKET, GAGE WHEEL LH

$

$

Currently unavailable

37

Husqvarna 317018

BRACKET, GUAGE WHEEL RH

$

$

Currently unavailable

38

Husqvarna 180077

SCREW, 5/16-18X.75 HHC

$

$

Currently unavailable

39

Husqvarna 57072

BOLT, 5/16-18X.63 CARRLN
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

46

Husqvarna 317017

BRACKET CHUTE MOUNT

$

$

Currently unavailable

47

Husqvarna 120395

WASHER, FLAT .469X.92X.065

$

$

Currently unavailable

48

Husqvarna 57072

BOLT, 5.16-18X.63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

61

Husqvarna 326893

BRACE IDLER SUPPORT 40",43"

$

$

Currently unavailable

62

Husqvarna 180077

SCREW, 5/16-18X.75 HHC

$

$

Currently unavailable

63

Husqvarna 44108

NUT, 5/16-18 HWDFLCTRLK

$

$

Currently unavailable

64

Husqvarna 308231

SCREW, 1/4-20X1.25 HHWATAP

$

$

Currently unavailable

70

Husqvarna 322117

IDLER ARM40/43/46DECK

$

$

Currently unavailable

72

Husqvarna 304420

BOLT, 500X2.15 HHSH

$

$

Currently unavailable

74

Husqvarna 996307

WASHER, FLAT .391X1.00X .209

$

$

Currently unavailable

78

Husqvarna 45905

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

11-1

UNKNOWN

$

$

Not available

11-2

UNKNOWN

$

$

Not available

11-3

UNKNOWN

$

$

Not available

11-4

UNKNOWN

$

$

Not available

11-5

UNKNOWN

$

$

Not available

11-6

UNKNOWN

$

$

Not available

11-7

UNKNOWN

$

$

Not available

11-8

UNKNOWN

$

$

Not available

11-9

UNKNOWN

$

$

Not available

11-10

UNKNOWN

$

$

Not available

11-11

UNKNOWN

$

$

Not available
