LT 4140 H (E4014-040) - Husqvarna Lawn Tractor (1994-01) Chassis/Seat/Rear Fender Parts Diagram

Lawn Tractor

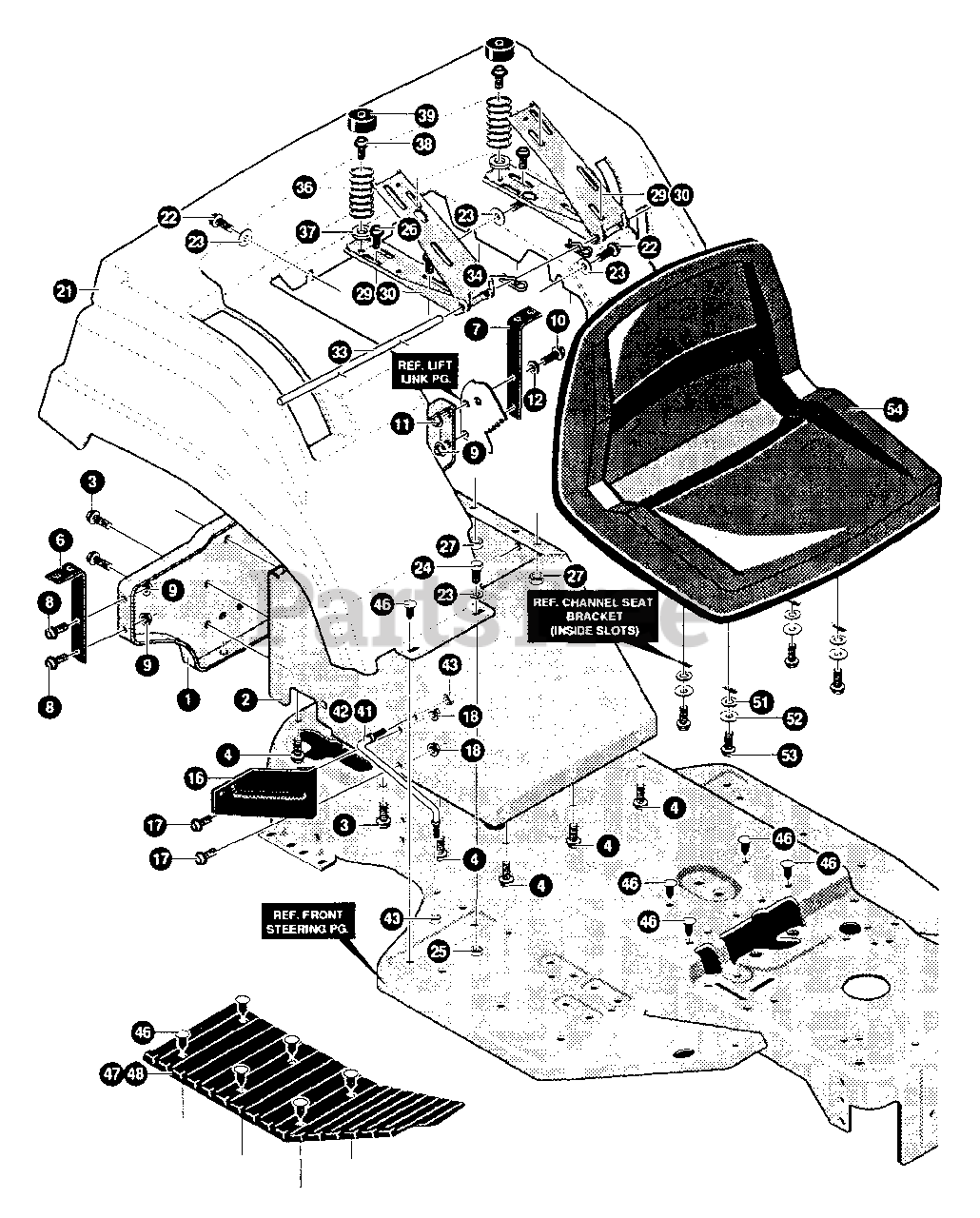

Chassis/Seat/Rear Fender Parts Diagram

  • Title
1

Husqvarna 322068830

SEAT SUPPORT ELECTRIC LIFT

$

$

Currently unavailable

2

Husqvarna 322069830

SUPT FENDER & SEAT ELECT/LIFT

$

$

Currently unavailable

3

Husqvarna 35498

SCREW, 5/16-18 X .75 WAHHTAP

$

$

Currently unavailable

4

Husqvarna 35497

SCREW, 5/16-18 X .50 WAHHTAP

$

$

Currently unavailable

6

Husqvarna 306399

SUPPORT FENDER RIGHT

$

$

Currently unavailable

7

Husqvarna 306397

SUPPORT FENDER LEFT

$

$

Currently unavailable

8

Husqvarna 56030

SCREW, 5/16-18 X .75WDFLLK

$

$

Currently unavailable

9

Husqvarna 55273

NUT, 5/16-18 HXWDFLLK

$

$

Currently unavailable

10

Husqvarna 180020

SCREW, 1/4-20 X .75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

11

Husqvarna 51335

NUT, 1/4-20 WDFLWHIZ-LK

$

$

Currently unavailable

12

Husqvarna 120385

WASHER, FLAT .250 X .56 X .049

$

$

Currently unavailable

16

Husqvarna 305381

SUPPORT, SHIFT PLATE

$

$

Currently unavailable

17

Husqvarna 56030

SCREW, 5/16-18 X .75WDFLLK

$

$

Currently unavailable

18

Husqvarna 55273

NUT, 5/16-18 HXWDFLLK

$

$

Currently unavailable

21

Husqvarna 310576

FENDER, EURO F-10 GT MOLD GREY

$

$

Currently unavailable

22

Husqvarna 44811

SCREW, 1/4-20 X .75 WAHHTAP

$

$

Currently unavailable

23

Husqvarna 1084

WASHER, FLAT .281 X 1.00 X .063PL

$

$

Currently unavailable

24

Husqvarna 180020

SCREW, 1/4-20 X .75 HHC
(Superseded to 583098101)

$141.99

$

Usually ships in 3-10 days

0

25

Husqvarna 1502

NUT, 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

26

Husqvarna 56030

SCREW, 5/16-18 HXWDFLLK

$

$

Currently unavailable

27

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

29

Husqvarna 302897830

CHANNEL SEAT RH

$

$

Currently unavailable

30

Husqvarna 305424830

CHANNEL SEAT LH

$

$

Currently unavailable

33

Husqvarna 304481

ROD SEAT SUPPORT BRZN

$

$

Currently unavailable

34

Husqvarna 36368

PIN, HAIR .072 DIA X 1.13LG

$

$

Currently unavailable

36

Husqvarna 305520

SPRING, SEAT 1.50OD X 2.25LG

$

$

Currently unavailable

37

Husqvarna 120393

WASHER, FLAT .344 X .69 X .065

$

$

Currently unavailable

38

Husqvarna 35498

SCREW, 5/16-18 X .75 WAHHTAP

$

$

Currently unavailable

39

Husqvarna 56907

COVER, SEAT SPRING 1.5IDX1.0LG

$

$

Currently unavailable

41

Husqvarna 319388

SUPPORT, FOOTREST STIFNR RH ZPL

$

$

Currently unavailable

42

Husqvarna 319387

SUPPORT, FOOTREST STIFNR LH ZPL

$

$

Currently unavailable

43

Husqvarna 1498

NUT 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

46

Husqvarna 309235

FASTENER, RATCHET BLACK

$

$

Currently unavailable

47

Husqvarna 314888

FOOT PAD, ASSYRH ERO W/ADH

$

$

Currently unavailable

48

Husqvarna 314889

FOOT PAD, ASSYLH ERO W/ADH

$

$

Currently unavailable

51

Husqvarna 120393

WASHER, FLAT .344 X .69 X .065

$

$

Currently unavailable

52

Husqvarna 120638

WASHER, HVSPTLK .328 X .60 X .09

$

$

Currently unavailable

53

Husqvarna 180077

SCREW, 5/16-18 X .75 HHC

$

$

Currently unavailable

54

Husqvarna 310384

SEAT, W/SW HOLE

$

$

Currently unavailable
