LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Deck Lift Parts Diagram

Lawn Tractor

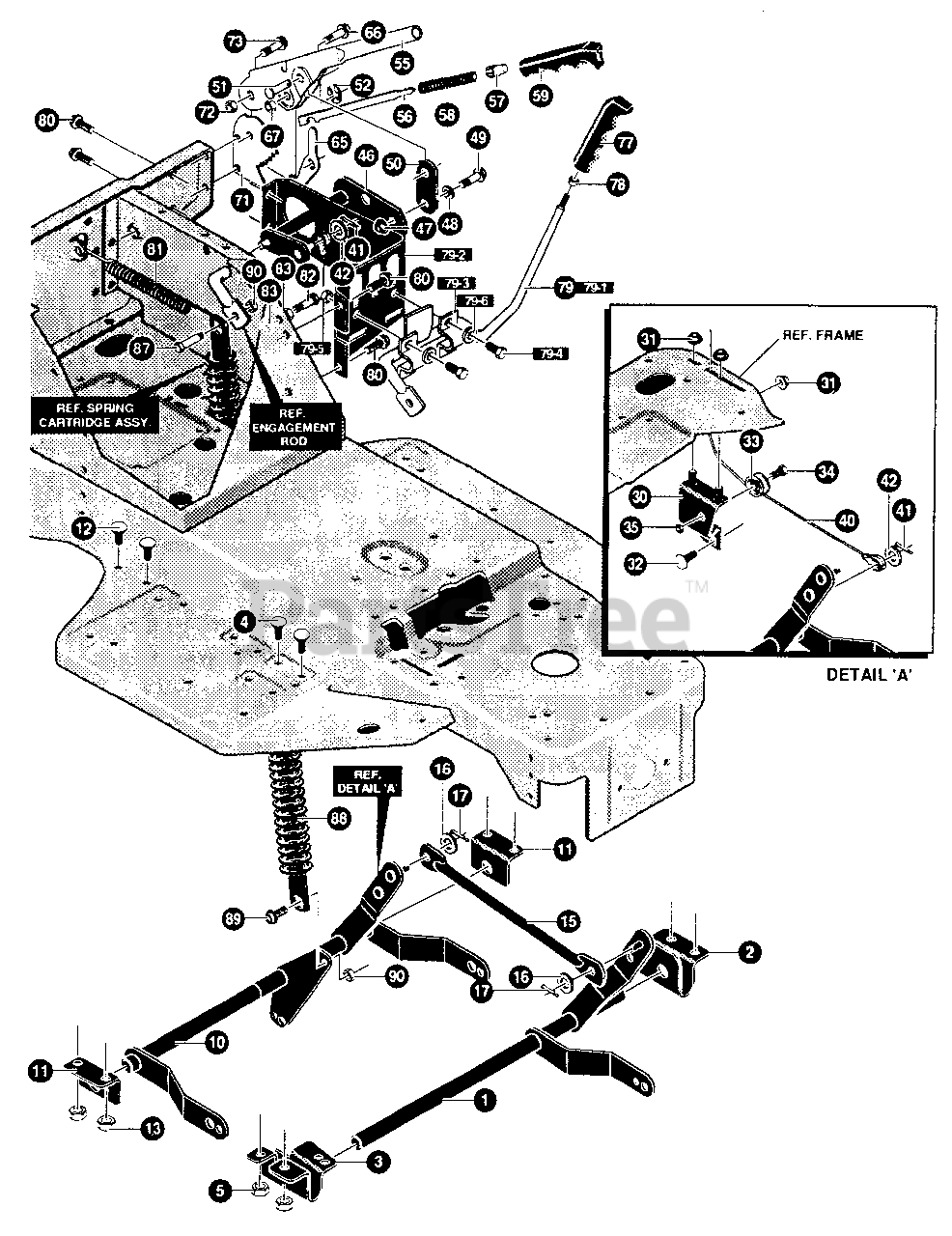

Deck Lift Parts Diagram

  • Title
1

Husqvarna 302379853

SHAFT, ASSY FRONT LIFT EURO

$

$

Currently unavailable

2

Husqvarna 304967853

BRACKET, FRONT HANGER RH

$

$

Currently unavailable

3

Husqvarna 302338853

BRACKET, FRONT HANGER LH

$

$

Currently unavailable

4

Husqvarna 180077

SCREW, 5/16-18X .75 HHC

$

$

Currently unavailable

5

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

10

Husqvarna 302206853

SHAFT, ASSY REAR LIFT

$

$

Currently unavailable

11

Husqvarna 302360853

BRACKET, REAR HANGER EURO

$

$

Currently unavailable

12

Husqvarna 180077

SCREW, 5/16-18X .75 HHC

$

$

Currently unavailable

13

Husqvarna 1498

NUT. 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

15

Husqvarna 302380

ROD, TIE

$

$

Currently unavailable

16

Husqvarna 120394

WASHER, FLAT .406X .81X.065

$

$

Currently unavailable

17

Husqvarna 121222

PIN, COTTER.090 DIAX.75LG

$

$

Currently unavailable

30

Husqvarna 303230

ASSY,PULLEY BRKT

$

$

Currently unavailable

31

Husqvarna 55273

NUT, 5/16-18 HXWDFLLK

$

$

Currently unavailable

32

Husqvarna 57072

BOLT. 5/16-18X 5/16-18X.63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 48306

PULLEY, POWDER METAL

$

$

Not available

34

Husqvarna 305522

BOLT, .375X .700 HHSH 5/16-18

$

$

Currently unavailable

35

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

40

Husqvarna 303227

CABLE, DECK LIFT

$

$

Currently unavailable

41

Husqvarna 121222

PIN, COTTER .090 DIAX.75LG

$

$

Currently unavailable

42

Husqvarna 120393

WASHER, FLAT .344X .69X.065

$

$

Currently unavailable

46

Husqvarna 302205

ASSY. UPPER SHAFT

$

$

Currently unavailable

47

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

48

Husqvarna 45602

WASHER, FLAT .333X .87X.1 19

$

$

Currently unavailable

49

Husqvarna 36149

BOLT, 375X .500 HHSH 5/16-18

$

$

Currently unavailable

$

$

Currently unavailable

51

Husqvarna 300310

PIN, CLEVIS .310DIA +.475LG

$

$

Currently unavailable

52

Husqvarna 300311

RING, RETE 31X.25TRUX5133-31

$

$

Currently unavailable

55

Husqvarna 58332853

HEIGHT LEVER

$

$

Currently unavailable

56

Husqvarna 58330

ROD, ACTUATOR

$

$

Currently unavailable

57

Husqvarna 58325

KNOB, HEIGHT ADJ PUSH BUTTON

$

$

Currently unavailable

58

Husqvarna 58326

SPRING, HEIGHT ADJUST

$

$

Currently unavailable

59

Husqvarna 304730

GRIP, HAND .74IDX5.15

$

$

Currently unavailable

65

Husqvarna 301239

PAWL, SQUARE

$

$

Currently unavailable

66

Husqvarna 300171

BOLT-500X.270 HHSH 5/16-18

$

$

Currently unavailable

67

Husqvarna 44108

NUT, 5/16-18 HWDFLCTRLK

$

$

Currently unavailable

71

Husqvarna 302383

QUADRANT

$

$

Currently unavailable

72

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

73

Husqvarna 300171

BOLT. .500X .270 HHSH 5/16-18

$

$

Currently unavailable

77

Husqvarna 304729

HANDLE, 1/2-13

$

$

Currently unavailable

78

Husqvarna 120238

NUT, 1/2-13 HEXJAM

$

$

Currently unavailable

79

Husqvarna 307385853

ASSY BRKT & ENGAGE HAND

$

$

Currently unavailable

79-1

Husqvarna 306391

ASSY. ENGAGEMENT ROD

$

$

Currently unavailable

79-2

Husqvarna 302208

BRACKET SUPPORT ENGAGE

$

$

Currently unavailable

79-3

$

$

Currently unavailable

79-4

Husqvarna 180016

SCREW, 1/4-20X .50 HHC

$

$

Currently unavailable

79-5

Husqvarna 1502

NUT, 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

79-6

Husqvarna 120385

WASHER, FLAT .250X .56X.049

$

$

Currently unavailable

80

Husqvarna 35497

SCREW, 5/16-18X .50 WAHHTAP

$

$

Currently unavailable

81

Husqvarna 305306

SPRING, TENSION

$

$

Currently unavailable

82

Husqvarna 180134

SCREW, 3/8-16X2.50 HHC
(Superseded to 532180134)

$

$

Not available

83

Husqvarna 271190

NUT. 3/8-16 HEXKEPS

$

$

Currently unavailable

87

Husqvarna 305989

BOLT .437X.43 HHSH

$

$

Currently unavailable

88

Husqvarna 304448

ASSY. SPRING CARTRIDGE

$

$

Currently unavailable

89

Husqvarna 20507

BOLT, .437X .156 HHSH 5/16-18

$

$

Currently unavailable

90

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable
