LT 4140 G (E4014-030) - Husqvarna Lawn Tractor (1994-01) Deck (A) Parts Diagram

Lawn Tractor

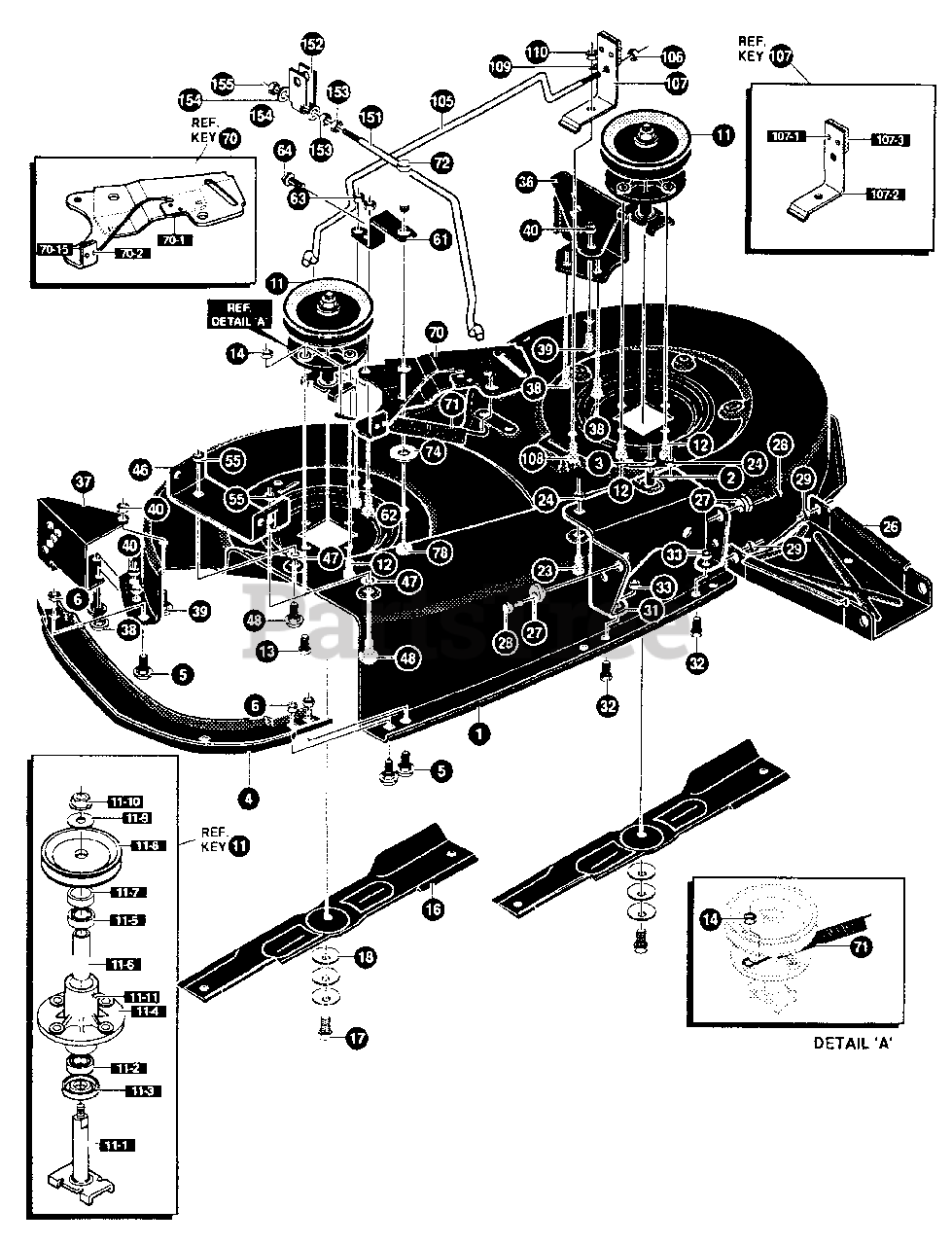

Deck (A) Parts Diagram

  • Title

1

Husqvarna 325103

40 DECK KIT

$

$

Currently unavailable

2

Husqvarna 180077

SCREW, 5/16-18X .75 HHC

$

$

Currently unavailable

3

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

4

Husqvarna 326480

TOE GUARD - MULCHER

$

$

Currently unavailable

5

Husqvarna 57072

BOLT, 5/16-18X 5/16-18X.63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

11

Husqvarna 317705

QUILL 36/39/40/43 W/ZERKS

$

$

Currently unavailable

11-1

Husqvarna 56425

SHAFT/SADDLE 36"

$

$

Currently unavailable

11-2

Husqvarna 1255

BRNG. BALL 6203-A-C3 (SEAL)

$

$

Currently unavailable

11-3

Husqvarna 50616

DUST SHIELD

$

$

Currently unavailable

11-4

Husqvarna 50702

QUILL HSG. EXP

$

$

Currently unavailable

11-5

Husqvarna 49562

BRNG, BALL 6203-2AA(SEALS)-C3

$

$

Currently unavailable

11-6

Husqvarna 50818

SPACER, SLEV .669X .88X3.797

$

$

Currently unavailable

11-7

Husqvarna 51449

SPACER, SLEV .672X .93X .438PM

$

$

Currently unavailable

11-8

Husqvarna 313898

PULLEY, 26/36" QUILL V5L

$

$

Currently unavailable

11-9

Husqvarna 56365

WASHER, SPECIAL QUILL

$

$

Currently unavailable

11-10

Husqvarna 1282

NUT, 7/16-20 WDFLLK

$

$

Currently unavailable

11-11

Husqvarna 706

ZERK, GREASE FITTING

$

$

Currently unavailable

12

Husqvarna 35498

SCREW, 5/16-18X .75 WAHHTAP

$

$

Currently unavailable

13

Husqvarna 300345

SCREW, 5/16-18X1.38 WAHHTAP

$

$

Currently unavailable

14

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

16

Husqvarna 313316

BLADE, 40' STD-LIFT 20.32

$

$

Currently unavailable

17

Husqvarna 39573

SCREW, 3/8-24X1.00 NYLHHC

$

$

Currently unavailable

18

Husqvarna 2483

WASHER,.391DX1.25DX.07 BELLVIL

$

$

Currently unavailable

23

Husqvarna 57072

BOLT. 5/16-18X 5/16-18X.63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

26

Husqvarna 310800

CHANNEL DRAWBAR 40 EURO

$

$

Currently unavailable

27

Husqvarna 58247

NUT, ADJUST

$

$

Currently unavailable

28

Husqvarna 180079

SCREW, 5/16-18X1.00 HHC

$

$

Currently unavailable

29

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

31

Husqvarna 312342

BRACKET FRT

$

$

Currently unavailable

32

Husqvarna 180077

SCREW. 5/16-18X .75 HHC

$

$

Currently unavailable

33

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

36

Husqvarna 317041

BRACKET,GAGE WHEEL L.H.

$

$

Currently unavailable

37

Husqvarna 317018

BRACKET, GUAGE WHEEL RH

$

$

Currently unavailable

38

Husqvarna 180077

SCREW, 5/16-18X .75 HHC

$

$

Currently unavailable

39

Husqvarna 57072

BOLT. 5/16-18X 5/16-18X.63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

46

Husqvarna 317017

BRACKET CHUTE MOUNT

$

$

Currently unavailable

47

Husqvarna 120395

WASHER. FLAT .469X .92X.065

$

$

Currently unavailable

48

Husqvarna 57072

BOLT, 5/16-18X .63 CARR
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

61

Husqvarna 326893

BRACE IDLER SUPPORT 40" 43"

$

$

Currently unavailable

62

Husqvarna 180077

SCREW. 5/16-18X .75 HHC

$

$

Currently unavailable

63

Husqvarna 44108

NUT, 5/16-18 HWDFLCTRLK

$

$

Currently unavailable

64

Husqvarna 308231

SCREW, 1/4-20X1.25 HHWATAP

$

$

Currently unavailable

70

Husqvarna 320576

IDLER ARM ASSEMBLY

$

$

Currently unavailable

70-1

Husqvarna 322116

ARM IDLER 40/43"DECK

$

$

Currently unavailable

70-2

Husqvarna 41601

RIVET, OVSET .187DIAX .50LG ST

$

$

Currently unavailable

70-3

Husqvarna 306973

BRAKE PAD - HARD - 232AF

$

$

Currently unavailable

70-15

UNKNOWN

$

$

Not available

71

Husqvarna 35410

SPRING.071 X .62 X 4.37

$

$

Currently unavailable

72

Husqvarna 304420

BOLT. 500X2.15 HHSH

$

$

Currently unavailable

74

Husqvarna 996307

WASHER FLAT .391X1.00X.209

$

$

Currently unavailable

78

Husqvarna 45905

NUT, 3/8-16 HWDFLLK MACK

$

$

Currently unavailable

105

Husqvarna 302714

ROD BRAKE

$

$

Currently unavailable

106

Husqvarna 1502

NUT 1/4-20 REGHEXCTRLK

$

$

Currently unavailable

107

Husqvarna 321828

BLADE BRAKE ASSY

$

$

Currently unavailable

107-1

Husqvarna 135624

RIVET, TRSET .185DIAX .41 LG ST

$

$

Currently unavailable

107-2

Husqvarna 304119

BRAKE ARM

$

$

Currently unavailable

107-3

Husqvarna 306973

BRAKE PAD - HARD - 232AF

$

$

Currently unavailable

108

Husqvarna 180077

SCREW, 5/16-18X .75 HHC

$

$

Currently unavailable

109

Husqvarna 120393

WASHER, FLAT .344X .69X.065

$

$

Currently unavailable

110

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

151

Husqvarna 303072

ROD, CLUTCH

$

$

Currently unavailable

152

Husqvarna 305284

CLEVIS, EURO

$

$

Currently unavailable

153

Husqvarna 120376

NUT, 5/16-18 REGHEX

$

$

Currently unavailable

154

Husqvarna 120393

WASHER, FLAT .344X .69X.065

$

$

Currently unavailable

155

Husqvarna 1498

NUT, 5/16-18 REGHEXCTRLK

$

$

Currently unavailable

156

Husqvarna 57444

TIE CABLE BLACK NYLON 5.62L

$

$

Currently unavailable
