LT 3812 (13BC77KF897) - Columbia 38" Lawn Tractor (2014) Seat & Fender Parts Diagram

38" Lawn Tractor

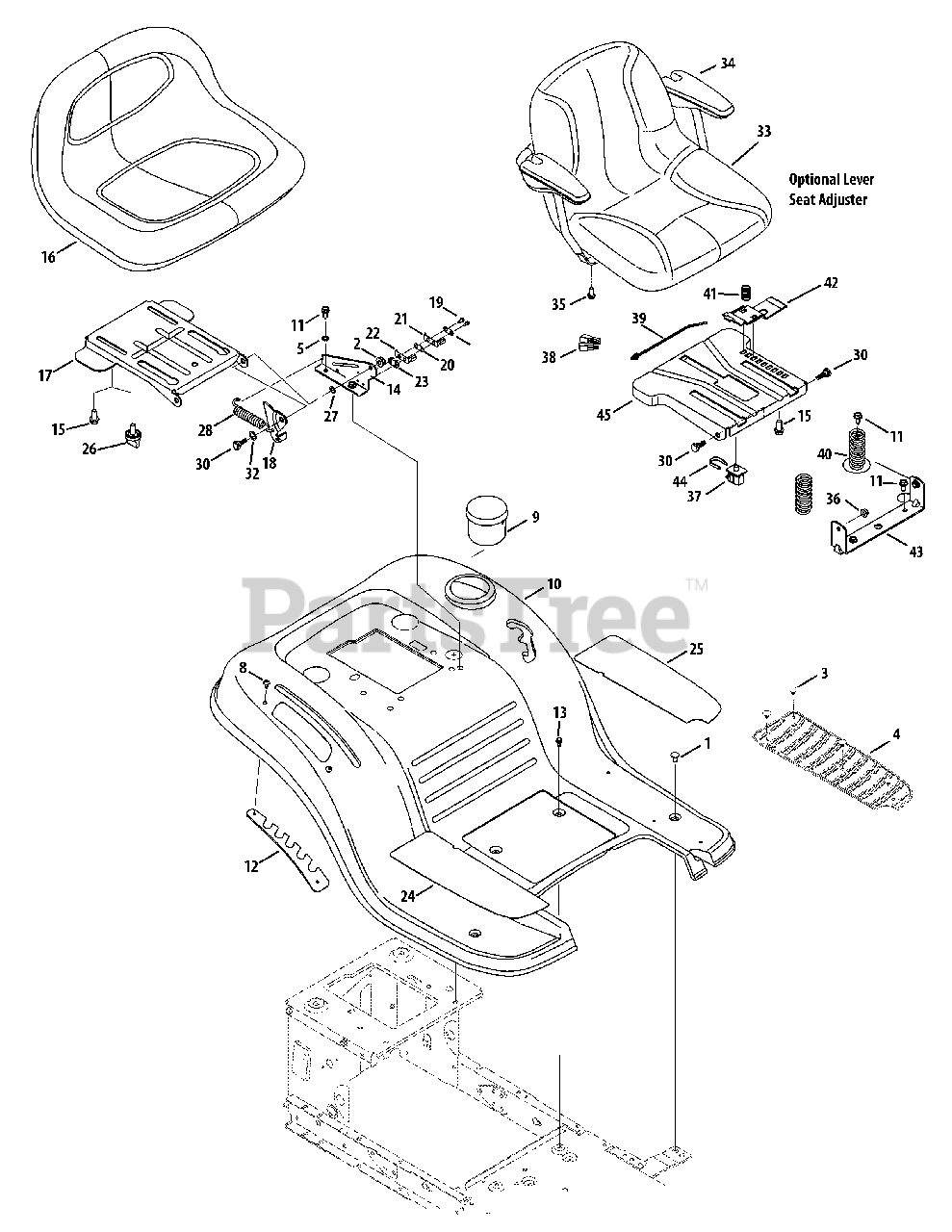

Seat & Fender Parts Diagram

  • Title

1

MTD 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

3

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

4

MTD 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

4

MTD 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

5

MTD 736-0607

Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

6

MTD 936-0108

Flat Washer .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

8

MTD 710-05070

Tap Screw 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

9

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

10

MTD 783-04587D-0606

Fender
(Superseded to 783-04587E-0606)

$421.99

$

Usually ships in 3-6 days

0

11

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

MTD 783-04843-0606

Lift Adjustment Bracket

$34.99

$

Usually ships in 3-6 days

0

13

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-1489D-0606

Seat Mounting Bracket
(Superseded to 783-1489D-0637)

$23.99

$

Usually ships in 3-6 days

0

15

MTD 710-04482

Screw 3/8-16 x .875

$4.49

$

In Stock, Qty 14

0

16

MTD 757-04099

Seat, Low Back
(Superseded to 757-05230)

$194.99

$

In Stock, only 1 left!

0

17

MTD 783-04081D-0606

Seat Pivot Bracket
(Superseded to 783-04081D-0637)

$41.99

$

In Stock, only 1 left!

0

18

MTD 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

19

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

20

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

21

MTD 925-1303

Spring Switch

$6.49

$

In Stock, Qty 7

0

22

MTD 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

23

MTD 726-0278

Insulator Plate

$6.99

$

In Stock, Qty 10

0

24

MTD 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

25

MTD 723-04026

Foot Pad, Abrasive, LH

$33.99

$

In Stock, only 1 left!

0

26

MTD 720-04061

Knob

$5.49

$

In Stock, Qty 20+

0

27

MTD 736-0242

Cupp. Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

28

MTD 732-1184

Extension Spring .84 Dia. x 4.6

$11.99

$

Usually ships in 3-6 days

0

30

MTD 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

32

MTD 936-0108

Flat Washer .510 x .75 x .033

$6.99

$

In Stock, only 4 left!

0

33

MTD n/a

Seat, High Back, Blk Cloth (w/arm rest option)

Note: Not used on this model

$

$

Currently unavailable

34

MTD n/a

Arm Rest Kit

Note: Not used on this model

$

$

Currently unavailable

35

MTD 710-1611B

Pan TT Screw 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

36

MTD 712-3004A

Flange Locknut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

37

MTD 925-05013

Seat Switch

$31.99

$

Usually ships in 3-6 days

0

38

MTD 725-05277

Seat Switch Jumper Harness

$34.99

$

Usually ships in 3-6 days

0

39

MTD 926-0154

Cable Tie

$6.49

$

Usually ships in 3-6 days

0

40

MTD 732-04035

Compression Spring 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

41

MTD 732-04563

Compression Spring .68 x 1.065 x .055

$5.49

$

In Stock, only 2 left!

0

42

MTD 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 1 left!

0

43

MTD 783-06088A-0606

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$21.99

$

Usually ships in 3-6 days

0

44

MTD 783-06448

Retaining Clip

$5.99

$

In Stock, only 3 left!

0

45

MTD 783-06049-0606

Seat Mounting Bracket

$68.99

$

Usually ships in 3-6 days

0
