LT 3812 (13BC77KF897) - Columbia 38" Lawn Tractor (2014) Hood & Grille Style K Parts Diagram

38" Lawn Tractor

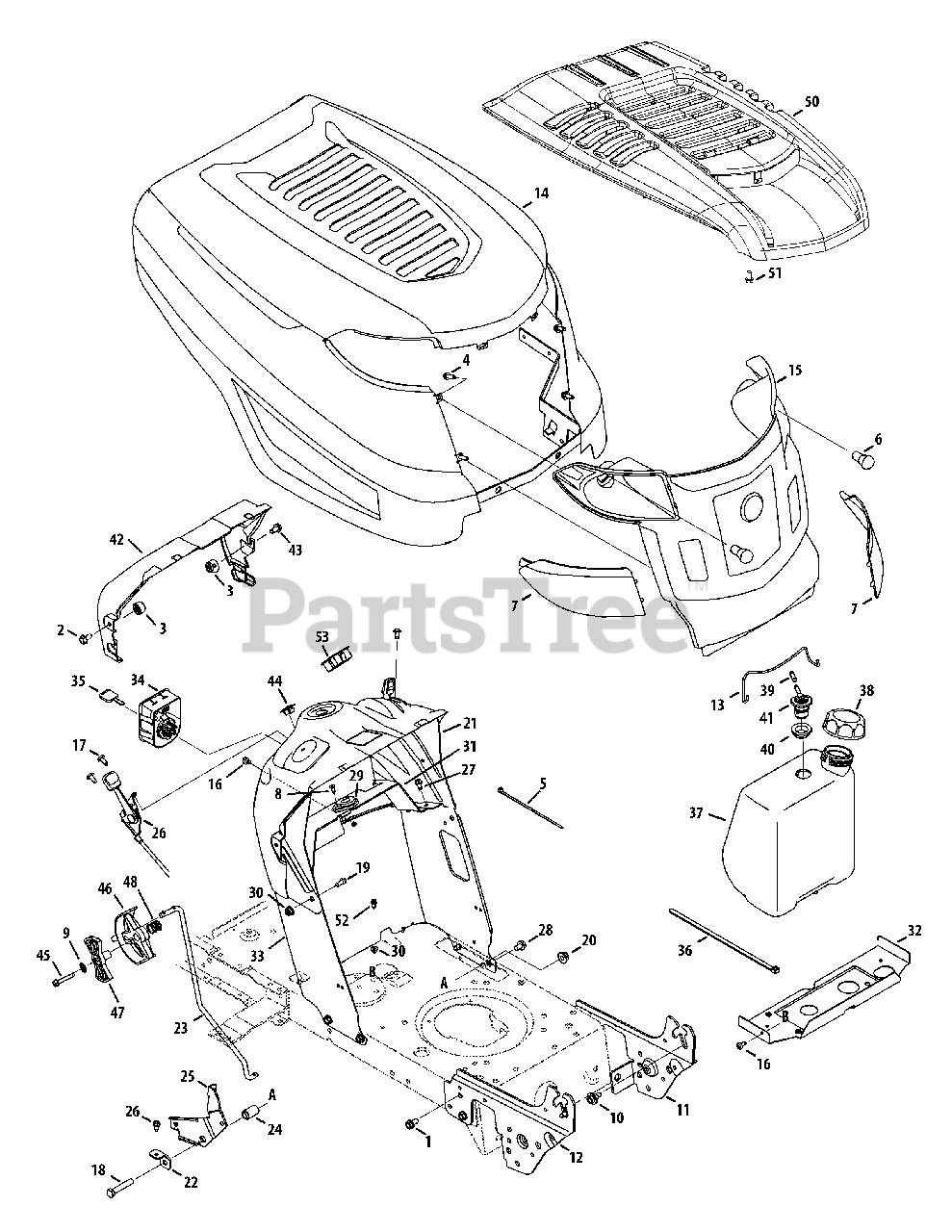

Hood & Grille Style K Parts Diagram

  • Title

1

MTD 710-04484

Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04261

Screw #12-16 x 1.5

$6.49

$

In Stock, only 3 left!

0

3

MTD 731-06404

K-Style Bumper

$9.49

$

In Stock, only 1 left!

0

4

MTD 710-05108

Screw 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

6

MTD 925-0963

Miniature Lamp 12V Socket

$7.49

$

In Stock, only 3 left!

0

7

MTD 731-06095

Grill Lens - LH

$12.99

$

In Stock, only 1 left!

0

7

MTD 731-06096

Grill Lens - RH

$12.99

$

In Stock, only 2 left!

0

8

MTD 910-0224

Screw, #10-16 x .50

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-3006

Lockwasher 1/4ID

$6.49

$

Usually ships in 3-6 days

0

10

MTD 738-04091A

Shoulder Screw 5/16-18 x .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

MTD 783-05327B-0606

Left Support Pivot Bracket

$37.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A-0606

Right Support Pivot Bracket

$39.99

$

Usually ships in 3-6 days

0

13

MTD 683-04448-0637

Battery Rod

$10.99

$

In Stock, Qty 14

0

14

MTD 683-04441A-0662

Hood

$332.99

$

Usually ships in 3-6 days

0

15

MTD 931-06796

Grille Ass’y
(Superseded to 931-06796A)

$72.99

$

Usually ships in 3-6 days

0

16

MTD 710-05070

Self-Tapp Screw 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

17

MTD 710-04483

Self-Tapp Screw 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

18

MTD 710-3144

Hex Screw 3/8-16 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3025

Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

20

MTD 712-04065

Hex L-Flg. Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

21

MTD 931-08426C

Upper Dash (3 pc w/ Amm. & RMC)

$45.99

$

Usually ships in 3-6 days

0

22

MTD 783-06823

Speed Latch

$17.99

$

In Stock, only 2 left!

0

23

MTD 747-05398

Speed Selector Control Rod

$11.99

$

In Stock, only 1 left!

0

24

MTD 750-04465C

Flange Spacer

$4.49

$

Usually ships in 3-6 days

0

25

MTD 683-04766-0637

Speed Latch Bracket (w/RMC)

$12.99

$

Usually ships in 3-6 days

0

26

MTD 710-1652

Tap Screw 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Screw 5/16-18 x .675

$4.49

$

In Stock, Qty 20+

0

29

MTD 741-0587

Bearing .628 ID x 1.36

$4.49

$

In Stock, Qty 10

0

30

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

Usually ships in 3-6 days

0

31

MTD 783-06785A-0606

Steering Support Bracket
(Superseded to 783-06785C-0606)

$8.99

$

Usually ships in 3-6 days

0

32

MTD 783-07083-0637

Gas Tank Support Bracket
(Superseded to 783-07083A-0637)

$28.99

$

Usually ships in 3-6 days

0

33

MTD 783-06811B-0606

Dash, Lower
(Superseded to 783-06811E-0606)

$61.99

$

Usually ships in 3-6 days

0

34

MTD 925-06119

3 Position Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

36

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

37

MTD 951-04304

Fuel Tank 1.36 gal.
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

38

MTD 951-12179B

Cap-Fuel
(Superseded to 951-12179C)

$38.99

$

In Stock, only 2 left!

0

39

MTD 751-12089-28

Hose Vent

$8.99

$

In Stock, only 1 left!

0

40

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

41

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

42

MTD 731-05078C

Collar

$18.99

$

In Stock, only 2 left!

0

43

MTD 710-0895

Hi-Lo Screw 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

44

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

45

MTD 710-0778

Hex Washer Scr. 1/4-20 x 1.50

$4.49

$

In Stock, only 1 left!

0

46

MTD 731-07885B

Shift Lever

$11.99

$

In Stock, only 3 left!

0

47

MTD 731-07895A

Index Control

$6.49

$

In Stock, Qty 7

0

48

MTD 732-04877

Compression Spring .685 OD x .63

$4.49

$

In Stock, only 2 left!

0

50

MTD 731-06194B

Hood Scoop - Troy

$56.99

$

Usually ships in 3-6 days

0

51

MTD 710-04187

Hex Hi Lo Scr. 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

52

MTD 710-0604A

Hex TT Scr. 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

53

MTD 731-05232

Ammeter Plug

$8.49

$

In Stock, only 2 left!

0

MTD 725-04432G

Harness
(Superseded to 925-04432M)

Note: (not shown)

$143.99

$

Usually ships in 3-6 days

0
