LT 3812 (13BC77KF897) - Columbia 38" Lawn Tractor (2014) Frame Parts Diagram

38" Lawn Tractor

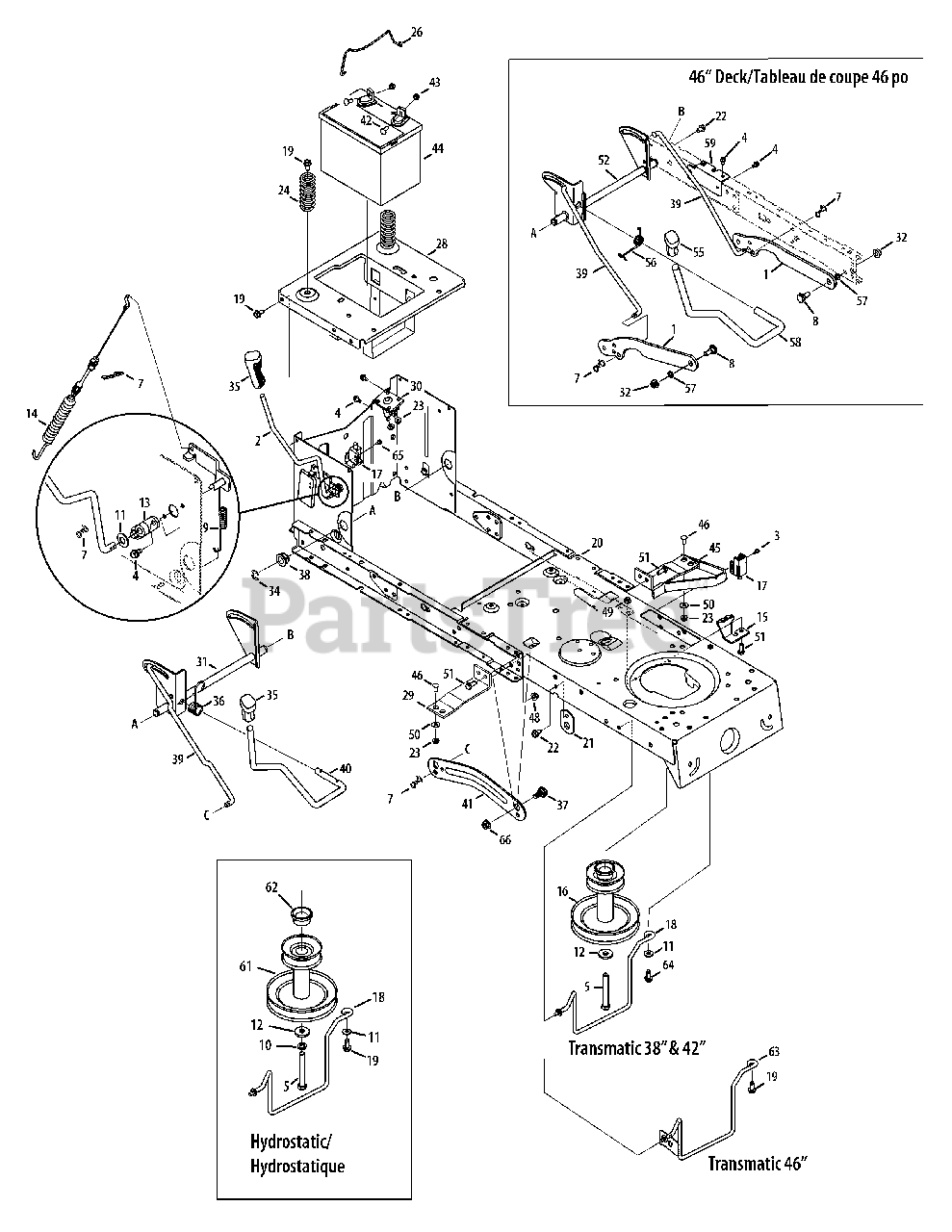

Frame Parts Diagram

  • Title

1

MTD n/a

Deck Lift Link (46")

Note: Not used on this model

$

$

Currently unavailable

2

MTD 647-05041-0637

PTO Handle

$11.99

$

In Stock, only 1 left!

0

3

MTD 738-04237A

Shoulder Scr #10-16 x .50" Lg.

$6.49

$

In Stock, Qty 7

0

4

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3157A

Hex Hd. Cap Scr. 7/16-20 x 3.25 Gr. 5 (38/42")

$10.99

$

In Stock, Qty 20+

0

7

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

8

MTD 938-0380

Shoulder Screw .5 x .270 : 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

9

MTD 732-04276A

Extension Spring

$9.99

$

In Stock, only 1 left!

0

10

MTD 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

11

MTD 936-0300

Flat Washer .385 ID x .87 OD x .06 (38/42")
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

13

MTD 741-04119A

PTO Bearing

$4.99

$

In Stock, Qty 10

0

14

MTD 946-05140

Deck Engagement Cable
(Superseded to 946-05140A)

$31.99

$

In Stock, Qty 20+

0

15

MTD 783-04753-0606

Frame Support Bracket
(Superseded to 783-04753)

$69.99

$

Usually ships in 3-6 days

0

16

MTD 756-04196A

Engine Pulley 3.39 x 6.12 dia. (38/42")

$90.99

$

In Stock, only 1 left!

0

17

MTD 925-04039

Interlock Switch

$24.99

$

In Stock, Qty 8

0

18

MTD 747-04332A

Belt Keeper Rod (38" Deck)

$48.99

$

In Stock, Qty 8

0

19

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

20

MTD 683-04649A-0606

Frame
(Superseded to 683-04649B)

$159.99

$

Usually ships in 3-6 days

0

21

MTD 783-04536B-0606

Pedal Support Bracket

$6.49

$

Usually ships in 3-6 days

0

22

MTD 710-0604A

Hex Wash HD TT Scr 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-04035

Compression Spring 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

26

MTD 683-04448-0637

Battery Hold Down Rod

$10.99

$

In Stock, Qty 14

0

28

MTD 783-04548D-0637

Seat Frame Bracket

$58.99

$

Usually ships in 3-6 days

0

29

MTD 783-04637-0606

Running Board Bracket
(Superseded to 783-04637-0637)

$16.99

$

Usually ships in 3-6 days

0

30

MTD 725-04439A

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

31

MTD 683-04155A-0637

Lift Shaft (38" & 42")

$55.99

$

Usually ships in 3-6 days

0

32

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

34

MTD 716-0106A

"E" Ring .625 Dia.

$5.49

$

In Stock, only 2 left!

0

35

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

36

MTD 732-04225

Torsion Spring (38" & 42")

$12.99

$

Usually ships in 3-6 days

0

37

MTD 738-04130A

Shoulder Screw .625 x .175, 3/8-16

$9.49

$

In Stock, Qty 10

0

38

MTD 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 20+

0

39

MTD 747-04393

Lift Rod

$23.99

$

In Stock, Qty 9

0

40

MTD 747-04282

Deck Lift Handle(38"")

$35.99

$

Usually ships in 3-6 days

0

41

MTD 783-04494C-0606

Deck Lift Arm RH
(Superseded to 783-04494C-0637)

$21.99

$

In Stock, Qty 12

0

41

MTD 783-04711C-0606

Deck Lift Arm LH
(Superseded to 783-04711C-0637)

$24.99

$

In Stock, Qty 13

0

42

MTD 710-04666

Hex Flg. Scr. 1/4-20 x .75 Gr. 5

$6.99

$

In Stock, only 3 left!

0

43

MTD 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

44

MTD 925-1707D

Battery 245 CCA (Dry)

$

$

Not available

45

MTD 683-04195-0606

Support Bracket Ass’y

$39.99

$

Usually ships in 3-6 days

0

46

MTD 710-0703

Carriage Bolt 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

48

MTD 712-04063

Hex L-Flg Nut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

49

MTD 912-0429

Hex L-Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0173

Flat Washer .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

51

MTD 710-3008

Hex Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

52

MTD n/a

Lift Shaft (46" only)

Note: Not used on this model

$

$

Currently unavailable

55

MTD 720-0298

Grip

$43.99

$

Usually ships in 3-6 days

0

56

MTD n/a

Torsion Spring (46")

Note: Not used on this model

$

$

Currently unavailable

57

MTD 936-0140

Flat Washer .395 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

58

MTD n/a

Deck Lift Handle (46")

Note: Not used on this model

$

$

Currently unavailable

59

MTD 783-05389-0637

Brace Bracket
(Superseded to 783-05389A-0637)

$8.49

$

Usually ships in 3-6 days

0

61

MTD 956-04067A

Engine Pulley 3.39 x 6.12 dia. (38/42")
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

62

MTD 750-0956

Spacer 1.0 x 1.4 x .825

$19.99

$

In Stock, only 2 left!

0

63

MTD n/a

Belt Keeper Rod (46" Deck)

Note: Not used on this model

$

$

Currently unavailable

64

MTD 710-1260A

Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

65

MTD 738-04425

Shoulder Scr. .342 x .335: 1/4-28

$4.49

$

In Stock, Qty 20+

0

66

MTD 912-0431

Flg. L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0
