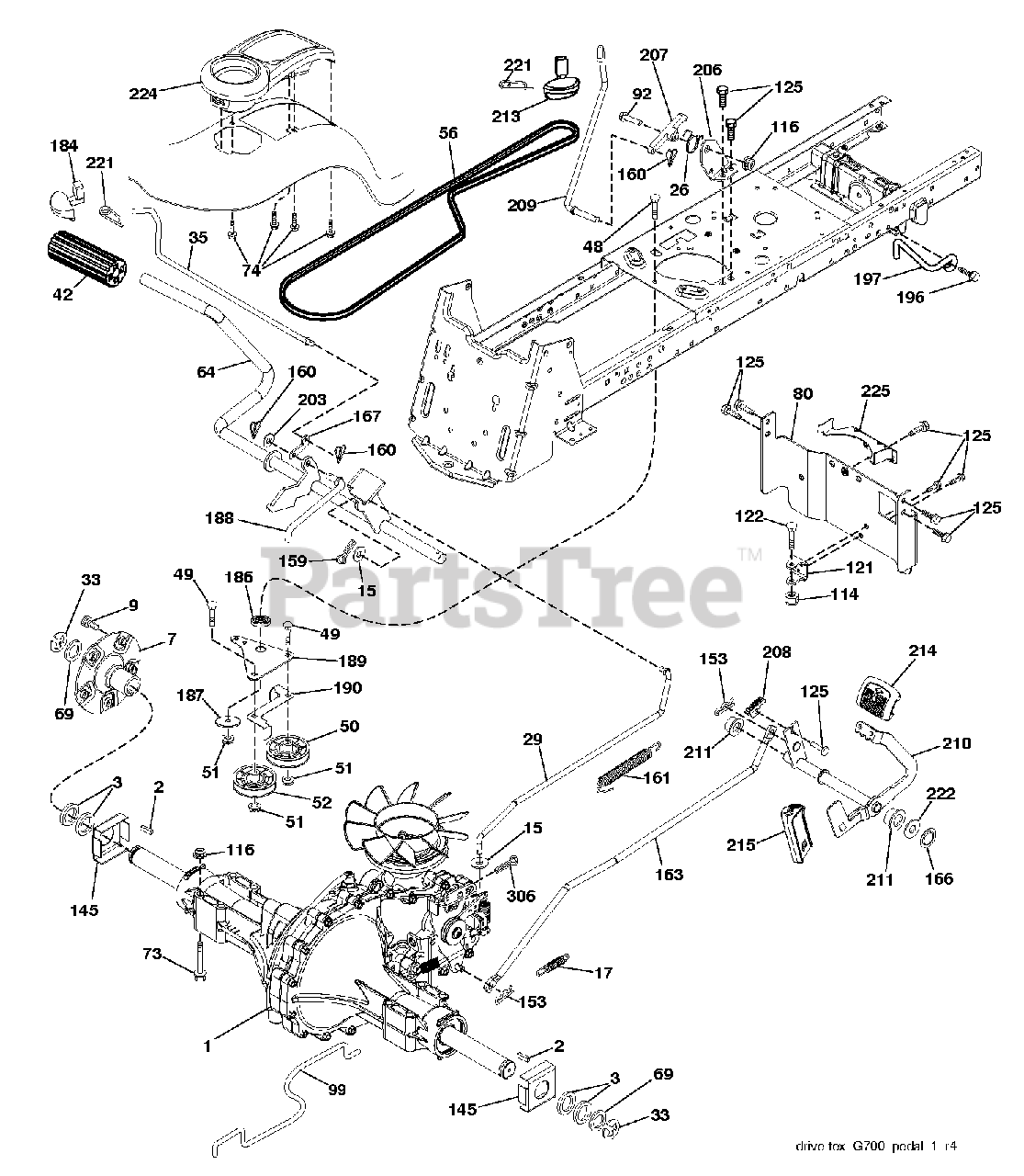

LT 2742 A2 (960410252-00) - Jonsered Lawn Tractor (2013-08) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: TRANSAXLE HYDRO G7BCBB-1XDCIECX (418183)

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

3

$8.99

$

Usually ships in 3-10 days

0

7

Jonsered 532199837

HUB.ASM.WHEEL.REAR.23"TEX

$78.99

$

In Stock, Qty 6

0

9

$3.99

$

Usually ships in 3-10 days

0

15

$4.99

$

In Stock, Qty 5

0

17

Jonsered 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, only 1 left!

0

26

Jonsered 532199679

SPRING.RETURN.CRUISE

$6.49

$

In Stock, only 1 left!

0

29

Jonsered 532418186

ROD BRAKE

$34.99

$

Usually ships in 3-10 days

0

33

Jonsered 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

35

Jonsered 583864501

Parking Brake Rod, GT Husq

$7.49

$

Usually ships in 3-10 days

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

48

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Jonsered 532140294

DRIVE BELT, LTH & YTH TRACTORS

$39.99

$

Usually ships in 3-10 days

0

64

Jonsered 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

69

$7.49

$

Usually ships in 3-10 days

0

73

Jonsered 874490548

No Description Available

$6.49

$

In Stock, only 1 left!

0

74

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Jonsered 532418184

STRAP.TORQUE.YT.G700

$34.99

$

Usually ships in 3-10 days

0

92

Jonsered 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Jonsered 532418188

SPRING.BYPASS.YT.G700

$14.99

$

Usually ships in 3-10 days

0

114

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

121

Jonsered 532175611

BRACKET STRAP TORQUE

$7.99

$

Usually ships in 3-10 days

0

122

Jonsered 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

145

Jonsered 532163168

No Description Available

$15.99

$

In Stock, only 3 left!

0

153

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Jonsered 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Jonsered 532418185

ROD PEDAL CONTROL

$34.99

$

Usually ships in 3-10 days

0

166

Jonsered 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

184

Jonsered 532441636

HANDLE.PRKG.BRAKE.STLTH.TX.RED
(Superseded to 532411716)

$

$

Not available

186

Jonsered 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Jonsered 532407504

BELLCRANK.GROUND.DRIVE.TRAPPED

$15.99

$

Usually ships in 3-10 days

0

190

Jonsered 532407505

KEEPER BELLCRANK ROUND DRIVE

$10.99

$

In Stock, only 1 left!

0

196

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Jonsered 532195804

LINK.CLUTCH.ANIT-ROTAT

$8.99

$

In Stock, only 4 left!

0

203

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

206

Jonsered 532448596

No Description Available

$5.99

$

Usually ships in 3-10 days

0

207

Jonsered 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Jonsered 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Jonsered 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Jonsered 532197860

ROCKER.ASM.PEDAL.CONTR

$51.99

$

Usually ships in 3-10 days

0

211

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

213

Jonsered 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

214

Jonsered 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, only 1 left!

0

215

Jonsered 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

Jonsered 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

224

Jonsered 532412298

CONSOLE.TOOLBOX.PCH.ERGO.BLACK

$15.99

$

Usually ships in 3-10 days

0

225

Jonsered 532418187

No Description Available
(Superseded to 583369301)

$

$

Not available

306

Jonsered 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0
