LT 24520 (7800317) - Snapper LT100 Series 52" Lawn Tractor, 24hp 52" Deck Housing Suspension Assembly Parts Diagram

LT100 Series 52" Lawn Tractor, 24hp

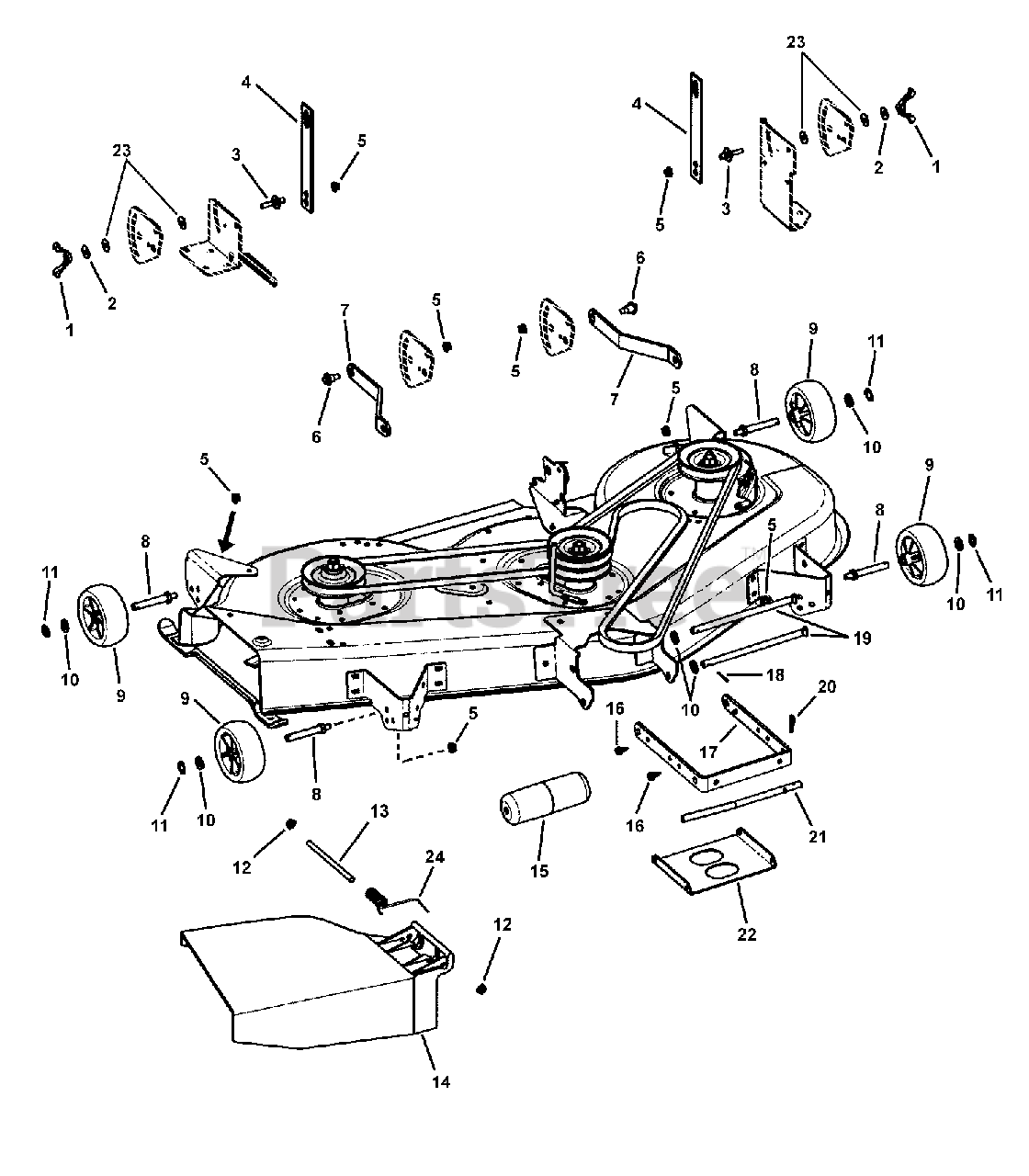

52" Deck Housing Suspension Assembly Parts Diagram

  • Title

1

Snapper 721380

WINGNUT (5/16-18 thread)
(Superseded to 095004MA)

$7.49

$

In Stock, only 2 left!

0

2

Snapper 720161

WASHER, Flat, 1.0 x .328 x 16 GA
(Superseded to 017X45MA)

$

$

Not available

3

Snapper 721402

PIN, Hanger 3/8-16 x 1-1/4"
(Superseded to 095194MA)

$20.99

$

In Stock, only 1 left!

0

4

Snapper 7300921D

LINK, Lift
(Superseded to 7300921DYP)

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 720142

NUT, 3/8-16 Hex Flange Lock, NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Snapper 720098

SHOULDER BOLT, 3/8-16 x .600 OD x .95 L
(Superseded to 009X52MA)

$6.49

$

In Stock, only 2 left!

0

7

Snapper 7300826D

BRACKET, Rear Suspension
(Superseded to 7300826DYP)

$14.99

$

Usually ships in 2-12 days

0

8

Snapper 721197

BOLT, Axle, 3/8-16 x 3"
(Superseded to 094025MA)

$11.99

$

In Stock, only 1 left!

0

9

Snapper 721118

WHEEL, Gage
(Superseded to 092683MA)

$15.99

$

In Stock, only 3 left!

0

10

Snapper 722579

WASHER, Flat, 1.0OD x 0.550"
(Superseded to 17X103MA)

$4.99

$

In Stock, only 2 left!

0

11

Snapper 720392

CLIP, Hair Pin
(Superseded to 031X11MA)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 720360

CAP, Push On (for .375 dia. Stud)
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 721017

ROD, Deflector
(Superseded to 092159ZMA)

$

$

Not available

14

Snapper 720982

DEFLECTOR, Chute
(Superseded to 092100MA)

$93.99

$

Usually ships in 2-12 days

0

15

Snapper 721453

ROLLER
(Superseded to 1001252MA)

$20.99

$

Usually ships in 2-12 days

0

16

Snapper 722858

SCREW, 5/16-18 Hex Washer Self-Tap
(Superseded to 26X249MA)

$

$

Not available

17

Snapper 7300767D

BRACKET, Suspension, Front

$

$

Currently unavailable

18

Snapper 720390

COTTER PIN, 1/8 x 1-1/4"
(Superseded to 030X49MA)

$4.49

$

In Stock, Qty 11

0

19

Snapper 721376

ROD, Deck Suspension
(Superseded to 094996MA)

$

$

Not available

20

Snapper 720069

HAIR PIN, .092 Dia.
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 721263

ROD, Hanger
(Superseded to 094158ZMA)

$28.99

$

Usually ships in 2-12 days

0

22

Snapper 7300871D

STIFFENER
(Superseded to 7300871DYP)

$27.99

$

Usually ships in 2-12 days

0

23

Snapper 720185

NUT, 5/16-18 Hex Flange Lock, NC
(Superseded to 019X44MA)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 722504

SPRING, Torsion
(Superseded to 166X34MA)

$9.49

$

Usually ships in 2-12 days

0
