LT 24520 (7800212) - Snapper LT100 Series 52" Lawn Tractor, 24hp Steering Group Parts Diagram

LT100 Series 52" Lawn Tractor, 24hp

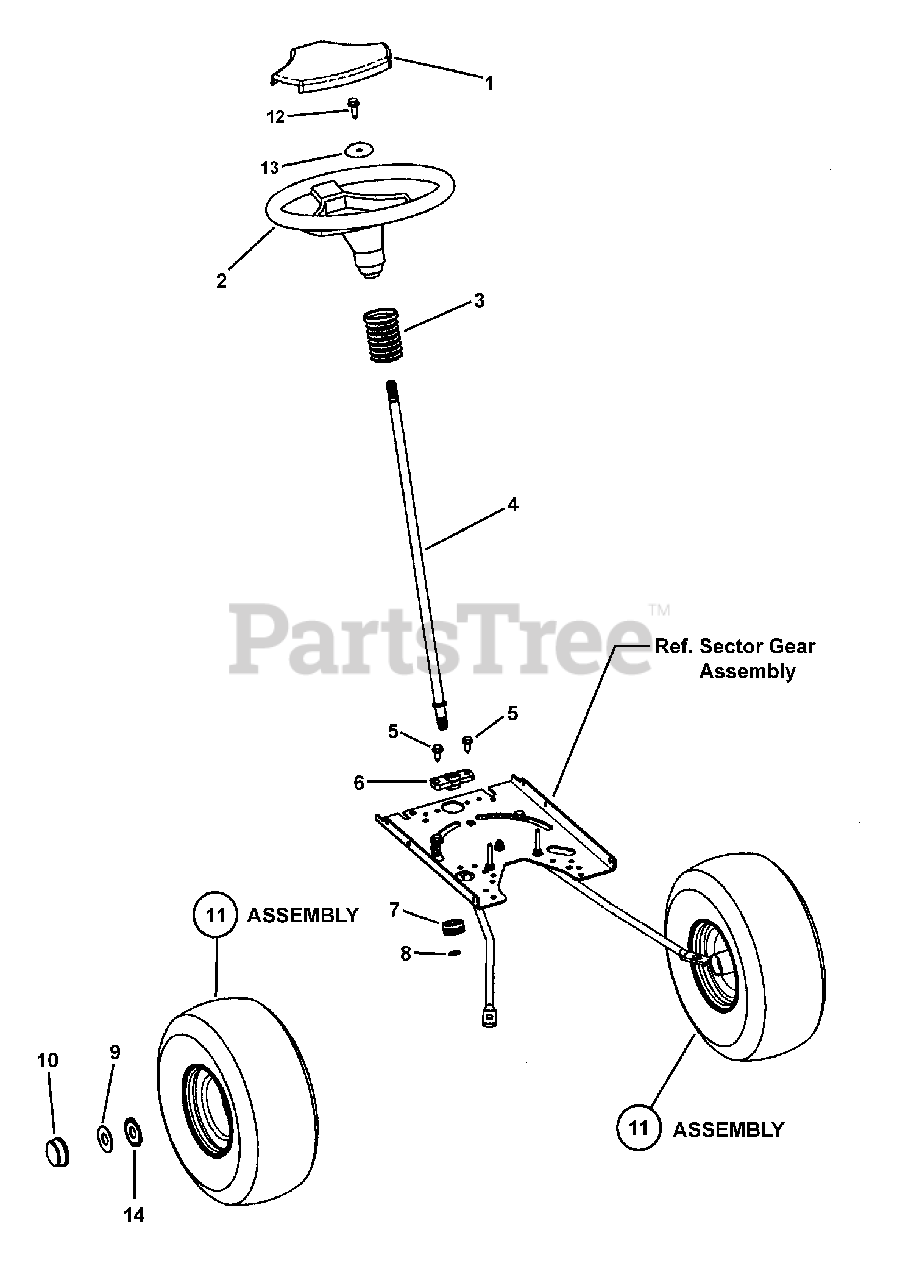

Steering Group Parts Diagram

  • Title

1

Snapper 729275

COVER, Integra
(Superseded to 1001982MA)

$24.99

$

In Stock, only 1 left!

0

2

Snapper 727628

STEERING WHEEL, (Soft Rim)
(Superseded to 1001981MA)

$146.99

$

Usually ships in 2-12 days

0

3

Snapper 720973

BELLOWS, Steering Post
(Superseded to 092059MA)

$9.49

$

Usually ships in 2-12 days

0

4

Snapper 7101525

STEERING POST, 24.56 Long
(Superseded to 7101525YP)

$97.99

$

Usually ships in 2-12 days

0

5

Snapper 722867

CAPSCREW, 5/16-18 Hex Washer Face
(Superseded to 26X267MA)

$4.99

$

In Stock, Qty 20+

0

6

Snapper 721242

BEARING, Lower
(Superseded to 094124MA)

$14.99

$

In Stock, only 1 left!

0

7

Snapper 725138

GEAR PINION
(Superseded to 690183MA)

$

$

Not available

8

Snapper 720119

SNAP RING, 0.543 ID
(Superseded to 011X25MA)

$4.49

$

In Stock, Qty 5

0

9

Snapper 722620

FLAT WASHER, 1.862 x .765 x 16 GA
(Superseded to 17X195MA)

$4.99

$

In Stock, Qty 5

0

10

Snapper 721318

HUB CAP
(Superseded to 094618MA)

$5.99

$

In Stock, only 4 left!

0

11

Snapper 7101557

WHEEL & TIRE ASSY, 15 x 6.00-6 (includes bushings #7014483)
(Superseded to 7101557YP)

Note: used on 46" Deck (Calif.)

$182.99

$

Usually ships in 2-12 days

0

11

Snapper 7101566

WHEEL & TIRE ASSY, 18 x 6.50-8 (includes bushings #7014483)
(Superseded to 7101566YP)

Note: used on 52" Deck (Domestic 49-State & Calif.)

$239.99

$

In Stock, only 1 left!

0

12

Snapper 720042

SCREW, 1/4-20 x 1" Hex Washer Self-Tap
(Superseded to 0025X3MA)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 722593

WASHER, .34 - 1.2 Flat
(Superseded to 17X146MA)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 722598

WASHER, Flat, 3/4 x 1-1/4 x 16GA
(Superseded to 17X160MA)

$4.99

$

In Stock, Qty 20+

0
