LT 23460 AWS (7800478) - Snapper LT130 Series 46" Lawn Tractor, 23hp Decal Group Parts Diagram

LT130 Series 46" Lawn Tractor, 23hp

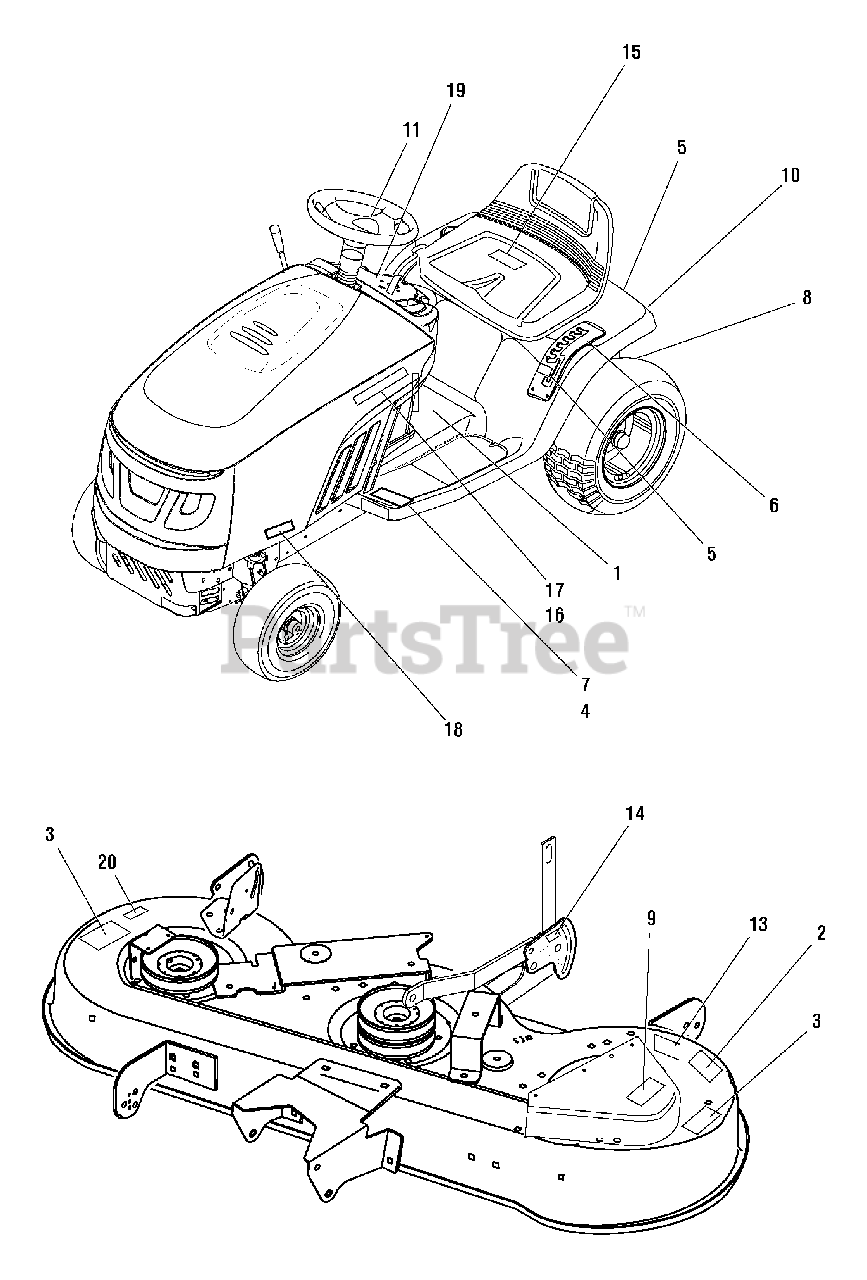

Decal Group Parts Diagram

  • Title

1

Snapper 7101663

DECAL, Umber
(Superseded to 7101663YP)

Note: (Used on Domestic Models)

$11.99

$

Usually ships in 2-12 days

0

1

Snapper 7102734

DECAL, Umber
(Superseded to 7102734YP)

Note: (Used on Export Models)

$18.99

$

Usually ships in 2-12 days

0

2

Snapper 7101664

DECAL, No Step
(Superseded to 7101664YP)

Note: (Used on Domestic Models)

$10.99

$

Usually ships in 2-12 days

0

2

Snapper 7102741

DECAL, No Step
(Superseded to 7102741YP)

Note: (Used on Export Models)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 7101665

DECAL, Danger do not Operate w/o Deflector
(Superseded to 7101665YP)

Note: (Used on Domestic Models)

$14.99

$

In Stock, Qty 5

0

3

Snapper 5102420

DECAL, Danger, Mower Deck

Note: (Used on Export Models)

$

$

Currently unavailable

4

Snapper 7101936

DECAL, Drive Pedal
(Superseded to 7101936YP)

Note: (Located on Right Side)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 7101937

DECAL, Deck Level
(Superseded to 7101937YP)

Note: (Used on Domestic Models)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 724023

DECAL, Deck Level
(Superseded to 44X7027MA)

Note: (Used on Export Models)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7101938

DECAL, Height of Cut
(Superseded to 7101938YP)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 7101939

DECAL, Belt, Clutch
(Superseded to 7101939YP)

Note: (Located on Left Side)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7101940

DECAL, Weight Limitation
(Superseded to 7101940YP)

$10.99

$

Usually ships in 2-12 days

0

9

Snapper 7102193

DECAL, Deck, 46
(Superseded to 7102193YP)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7102196

DECAL, Snapper Logo, Rear
(Superseded to 7104148YP)

$33.99

$

In Stock, only 1 left!

0

11

Snapper 7102211

DECAL, Logo, Steering Wheel
(Superseded to 7102211YP)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 724017

DECAL, Gage Wheel Instruction
(Superseded to 44X6600MA)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 724026

DECAL, Gage Wheel Leveling
(Superseded to 44X7228MA)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 729682

DECAL, Hydro Release
(Superseded to 48X5624MA)

Note: (Located under Seat) (Used on Domestic Models)

$42.99

$

Usually ships in 2-12 days

0

15

Snapper 724021

DECAL, Hydro Release
(Superseded to 44X6962MA)

Note: (Located under Seat) (Used on Export Models)

$9.49

$

Usually ships in 2-12 days

0

16

Snapper 7103130

DECAL, Logo, Hood, Right
(Superseded to 7103130YP)

$24.99

$

Usually ships in 2-12 days

0

17

Snapper 7103131

DECAL, Logo, Hood, Left
(Superseded to 7103131YP)

$24.99

$

Usually ships in 2-12 days

0

18

Snapper 7103140

DECAL, LT130/23 HP
(Superseded to 7103140YP)

$19.99

$

Usually ships in 2-12 days

0

19

Snapper 7102248

DECAL, Dash, Electric PTO
(Superseded to 7102248YP)

$19.99

$

Usually ships in 2-12 days

0

20

Snapper 726492

DECAL, Pinch Point
(Superseded to 44X6828MA)

Note: (Used on Export Models)

$9.49

$

Usually ships in 2-12 days

0
