LT 2323 CMA2 (960510048-00) - Jonsered Lawn Tractor (2012-03) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

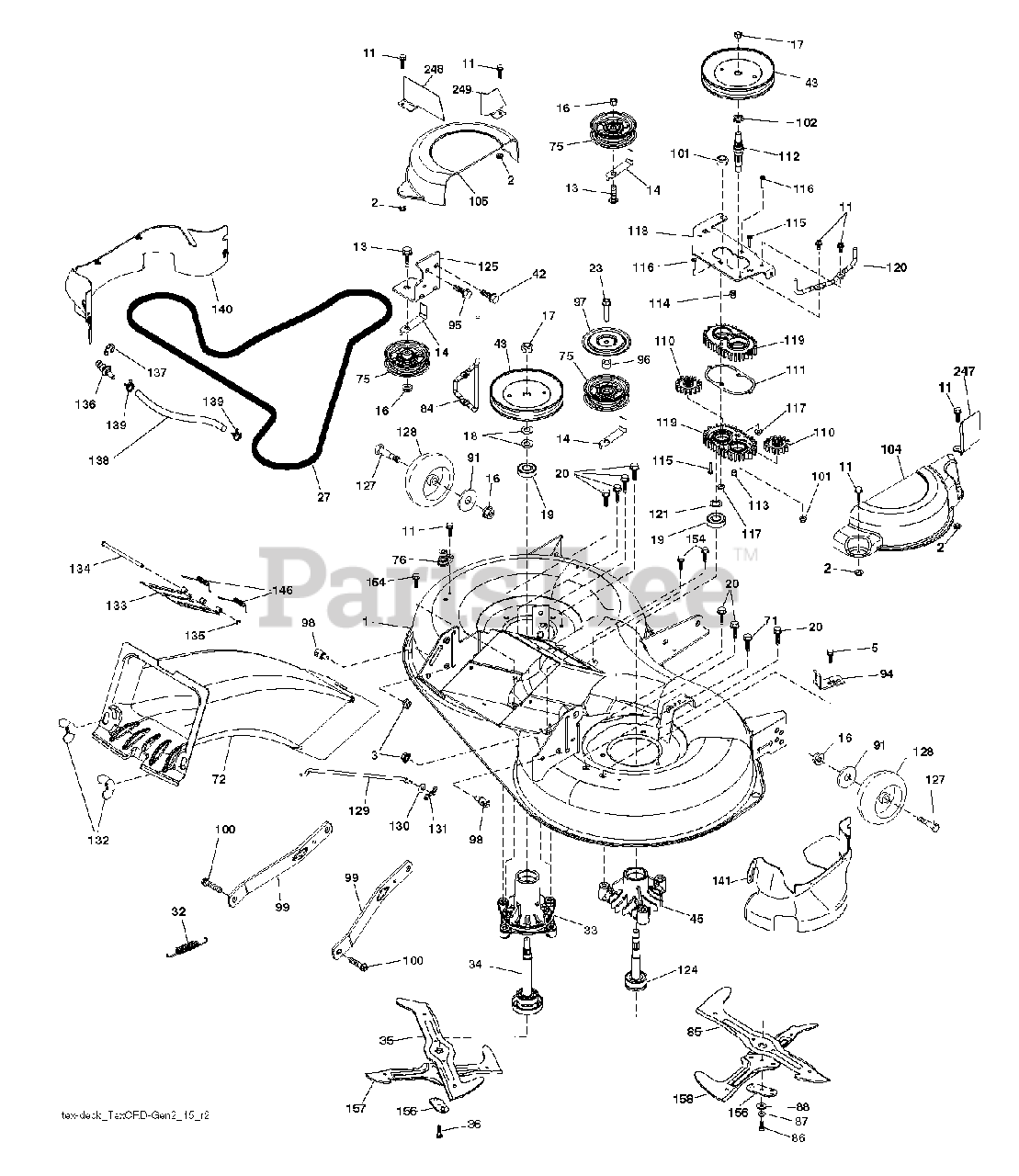

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532447738

No Description Available

$

$

Not available

2

Jonsered 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

3

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

5

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

11

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

13

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

18

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

19

$13.99

$

In Stock, Qty 14

0

20

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

23

Jonsered 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Jonsered 532445886

No Description Available
(Superseded to 583581901)

$103.99

$

Usually ships in 3-10 days

0

32

Jonsered 532446205

No Description Available
(Superseded to 583584001)

$11.99

$

Usually ships in 3-10 days

0

33

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

34

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

35

Jonsered 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

36

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

42

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

43

Jonsered 532443239

No Description Available
(Superseded to 583568201)

$53.99

$

Usually ships in 3-10 days

0

45

Jonsered 532137152

HOUSING.MANDREL

$40.99

$

In Stock, only 1 left!

0

72

Jonsered 532443903

No Description Available
(Superseded to 581454103)

$91.99

$

Usually ships in 3-10 days

0

75

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

76

Jonsered 532439640

No Description Available
(Superseded to 583544301)

$8.99

$

Usually ships in 3-10 days

0

84

Jonsered 532443235

No Description Available
(Superseded to 583567901)

$11.99

$

Usually ships in 3-10 days

0

85

Jonsered 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

86

Jonsered 532181713

No Description Available
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

87

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

88

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

91

$1.99

$

Usually ships in 3-10 days

0

94

Jonsered 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

95

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

96

Jonsered 532400271

No Description Available
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Jonsered 532182061

No Description Available
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Jonsered 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

100

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Jonsered 873680900

No Description Available
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Jonsered 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

104

Jonsered 532447916

No Description Available

$

$

Not available

105

Jonsered 532447917

No Description Available

$

$

Not available

110

Jonsered 532415356

No Description Available
(Superseded to 583354601)

$13.99

$

Usually ships in 3-10 days

0

111

Jonsered 532436979

No Description Available
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Jonsered 532443852

No Description Available
(Superseded to 583571601)

$17.99

$

In Stock, only 1 left!

0

113

Jonsered 532438533

No Description Available
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

114

Jonsered 532438534

No Description Available
(Superseded to 583533101)

$12.99

$

Usually ships in 3-10 days

0

115

Jonsered 818031016

No Description Available
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Jonsered 872110414

No Description Available
(Superseded to 583611101)

$

$

Not available

117

Jonsered 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

118

Jonsered 532443232

No Description Available
(Superseded to 583567701)

$20.99

$

Usually ships in 3-10 days

0

119

Jonsered 532438166

No Description Available
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Jonsered 532443236

No Description Available
(Superseded to 583568001)

$15.99

$

Usually ships in 3-10 days

0

121

Jonsered 532436985

No Description Available
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Jonsered 532436986

No Description Available
(Superseded to 583514201)

$43.99

$

In Stock, only 4 left!

0

125

Jonsered 532436994

No Description Available
(Superseded to 583514801)

$10.99

$

Usually ships in 3-10 days

0

127

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

128

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

129

Jonsered 532443237

No Description Available
(Superseded to 583568101)

$26.99

$

In Stock, only 1 left!

0

130

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

131

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

132

Jonsered 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

133

Jonsered 532438197

No Description Available

$

$

Not available

134

Jonsered 532435861

No Description Available

$

$

Not available

135

Jonsered 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

136

Jonsered 532439639

No Description Available
(Superseded to 583544201)

$6.49

$

Usually ships in 3-10 days

0

137

Jonsered 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

138

Jonsered 532447667

No Description Available
(Superseded to 583591801)

$3.99

$

Usually ships in 3-10 days

0

139

Jonsered 532440742

No Description Available

$

$

Not available

140

Jonsered 580369901

No Description Available

$

$

Not available

141

Jonsered 532447703

No Description Available
(Superseded to 583592201)

$18.99

$

Usually ships in 3-10 days

0

146

Jonsered 532445896

No Description Available
(Superseded to 583582001)

$3.49

$

Usually ships in 3-10 days

0

154

Jonsered 532199855

No Description Available
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

156

Jonsered 532446995

No Description Available
(Superseded to 583588901)

$6.99

$

Usually ships in 3-10 days

0

157

Jonsered 532446993

No Description Available

$

$

Not available

158

Jonsered 532180425

No Description Available
(Superseded to 583101701)

$66.99

$

Usually ships in 3-10 days

0

247

Jonsered 581263402

No Description Available

$22.99

$

Usually ships in 3-10 days

0

248

Jonsered 532447879

No Description Available

$

$

Not available

249

Jonsered 532447878

No Description Available

$

$

Not available

--

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

--

Jonsered 580678901

No Description Available

$

$

Not available
