LT 2323 CMA2 (960510047-00) - Jonsered Lawn Tractor (2012-02) STEERING Parts Diagram

Lawn Tractor

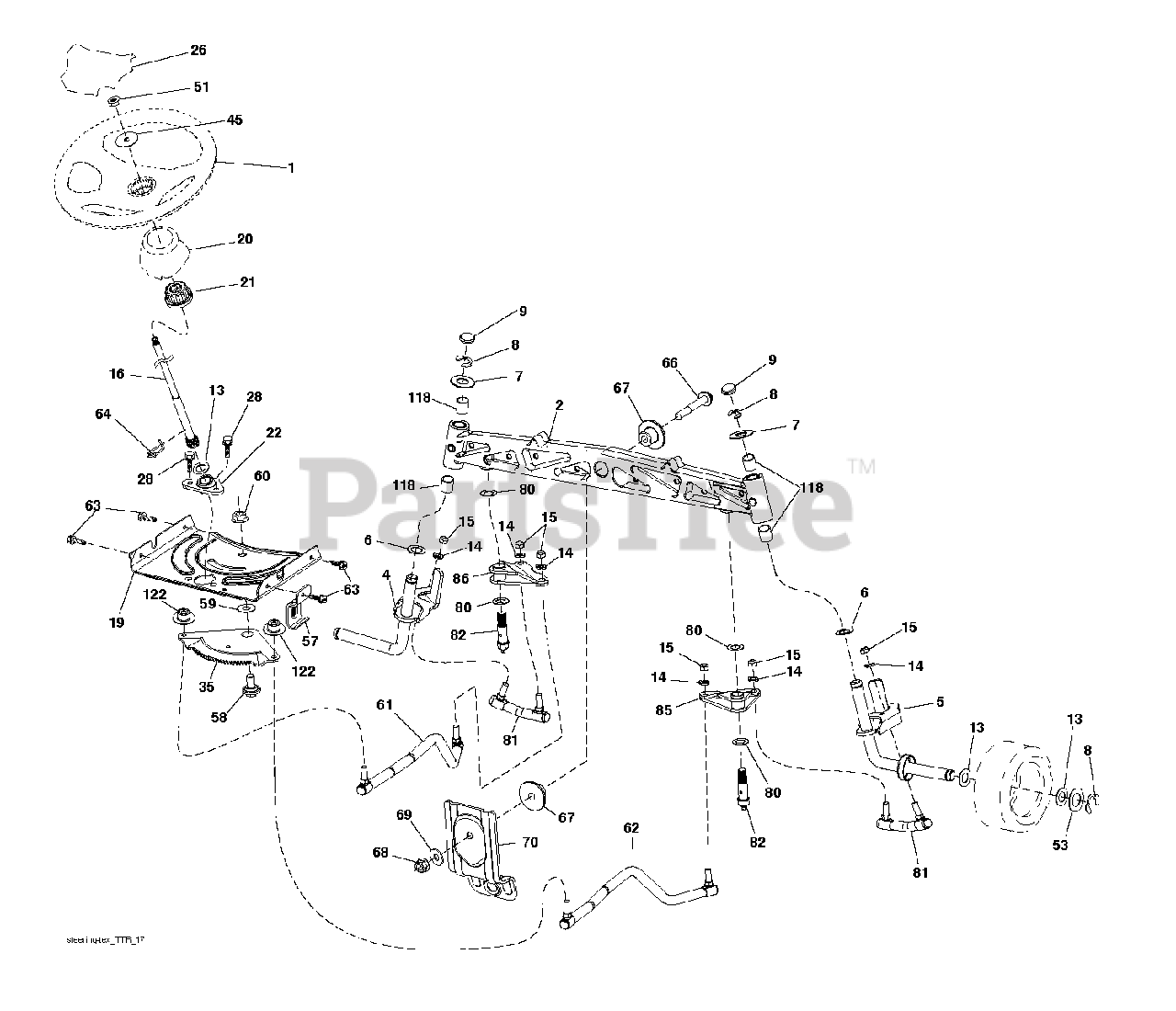

STEERING Parts Diagram

  • Title

1

Jonsered 532424146

WHEEL.STEERING.STDSRR.BLK/OV

$93.99

$

In Stock, only 1 left!

0

2

Jonsered 532436870

No Description Available
(Superseded to 583512701)

$206.99

$

Usually ships in 3-10 days

0

4

Jonsered 532436873

No Description Available
(Superseded to 583512801)

Note: LH

$50.99

$

In Stock, only 1 left!

0

5

Jonsered 532436874

No Description Available
(Superseded to 583512901)

Note: RH

$50.99

$

Usually ships in 3-10 days

0

6

Jonsered 532124931

No Description Available
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Jonsered 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Jonsered 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 532121232

CAP.SPINDLE

$4.99

$

In Stock, Qty 9

0

13

Jonsered 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Jonsered 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

15

Jonsered 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 532444212

No Description Available
(Superseded to 583573701)

$40.99

$

In Stock, Qty 14

0

19

Jonsered 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Jonsered 532424740

No Description Available

$6.99

$

In Stock, only 1 left!

0

21

Jonsered 532437747

STEERING.WHEEL.ADAPTER
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Jonsered 532194845

BUSHING.ASM.STEERING.A
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Jonsered 532424147

CAP.WHL.STRNG.STDSRRD.SRS.BLK

$8.99

$

Usually ships in 3-10 days

0

28

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 532440770

No Description Available
(Superseded to 583551401)

$45.99

$

In Stock, only 1 left!

0

45

Jonsered 819183812

WASHER 9/16"ID, 2 3/8"OD

$9.49

$

Usually ships in 3-10 days

0

51

Jonsered 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

53

Jonsered 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Jonsered 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

58

Jonsered 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

Jonsered 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

Jonsered 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Jonsered 532436884

No Description Available
(Superseded to 583513301)

Note: LH

$34.99

$

In Stock, only 2 left!

0

62

Jonsered 532436885

No Description Available
(Superseded to 583513401)

Note: RH

$

$

Not available

63

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Jonsered 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

66

Jonsered 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Jonsered 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Jonsered 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

69

Jonsered 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

Jonsered 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0

80

Jonsered 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

81

Jonsered 532436887

No Description Available
(Superseded to 583513501)

$

$

Not available

82

Jonsered 532436877

No Description Available

$

$

Not available

85

Jonsered 532441873

No Description Available
(Superseded to 583561101)

$

$

Not available

86

Jonsered 532441872

No Description Available
(Superseded to 583561001)

$40.99

$

In Stock, only 1 left!

0

118

Jonsered 532406013

BUSHING, AXLE CAST

$5.99

$

In Stock, Qty 12

0

122

Jonsered 532444962

No Description Available
(Superseded to 583576601)

$6.49

$

In Stock, only 3 left!

0
