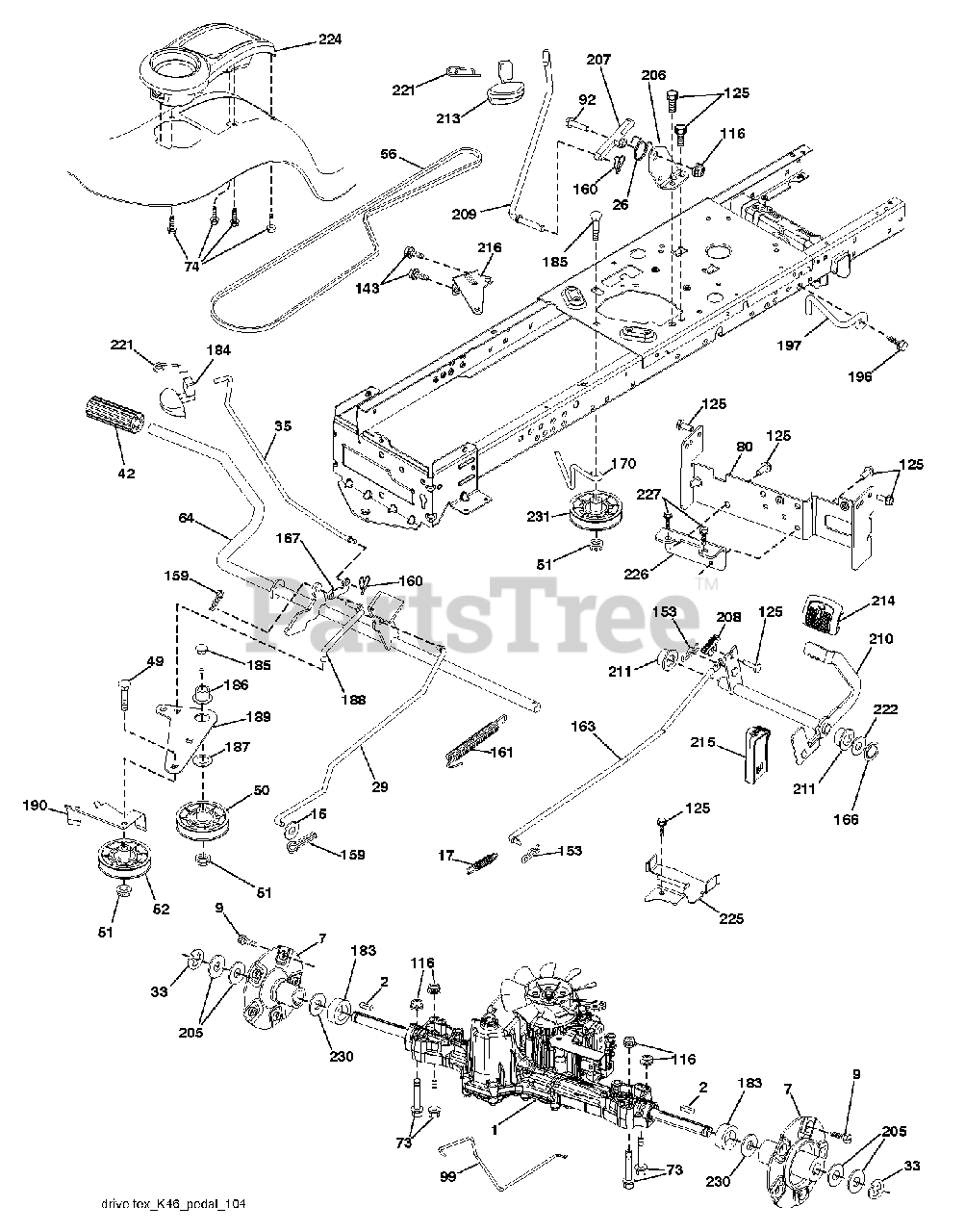

LT 2323 A2 (960410263-00) - Husqvarna Lawn Tractor (2012-01) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: TRANSAXLE TUFFTORQ K46BT (426119)

$

$

Not available

2

Electrolux/AYP 532186211

KEY.SQUARE.187X2.500

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532199844

HUB.ASM.WHEEL.REAR.22"

$56.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

Electrolux/AYP 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532435486

ROD.BRAKE.PARTK.HUSQ.TEX
(Superseded to 583864501)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 13

0

51

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532130969

V-BELT

$30.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Electrolux/AYP 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 532440619

STRAP.TORQUE.K46.K57R.TT

$24.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 532415742

ROD.SPRING.BYPASS.K46.LT.Z

$10.99

$

In Stock, only 2 left!

0

116

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

143

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

153

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Electrolux/AYP 532401034

ROD.CONTROL.PEDAL.K46

$

$

Not available

166

Electrolux/AYP 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Electrolux/AYP 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 532400424

SPACER.SPLIT.800X.350

$8.99

$

In Stock, only 2 left!

0

184

Electrolux/AYP 532441455

HANDLE.PARKG.BRK.HUSQ/PRED.667
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Electrolux/AYP 872110622

BOLT

$4.99

$

In Stock, Qty 9

0

186

Electrolux/AYP 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Electrolux/AYP 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

188

Electrolux/AYP 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$7.99

$

In Stock, Qty 5

0

190

Electrolux/AYP 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

196

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Electrolux/AYP 532199769

BRKT.ANIT-ROTATION.CLU

$8.99

$

In Stock, only 4 left!

0

205

Electrolux/AYP 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

206

Electrolux/AYP 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$5.99

$

Usually ships in 3-10 days

0

207

Electrolux/AYP 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Electrolux/AYP 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Electrolux/AYP 532197860

ROCKER.ASM.PEDAL.CONTR

$51.99

$

Usually ships in 3-10 days

0

211

Electrolux/AYP 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

213

Electrolux/AYP 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

214

Electrolux/AYP 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, only 1 left!

0

215

Electrolux/AYP 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

216

Electrolux/AYP 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

Electrolux/AYP 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

222

Electrolux/AYP 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

224

Electrolux/AYP 532412298

CONSOLE.TOOLBOX.PCH.ERGO.BLACK

$15.99

$

Usually ships in 3-10 days

0

225

Electrolux/AYP 532403319

KEEPER.BELT.TRANSAXLE.K46

$6.99

$

Usually ships in 3-10 days

0

226

Electrolux/AYP 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Electrolux/AYP 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

230

Electrolux/AYP 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

231

Electrolux/AYP 532407287

IDLER.V-GROOVE.1.688.OFFSET

$22.99

$

In Stock, only 2 left!

0
