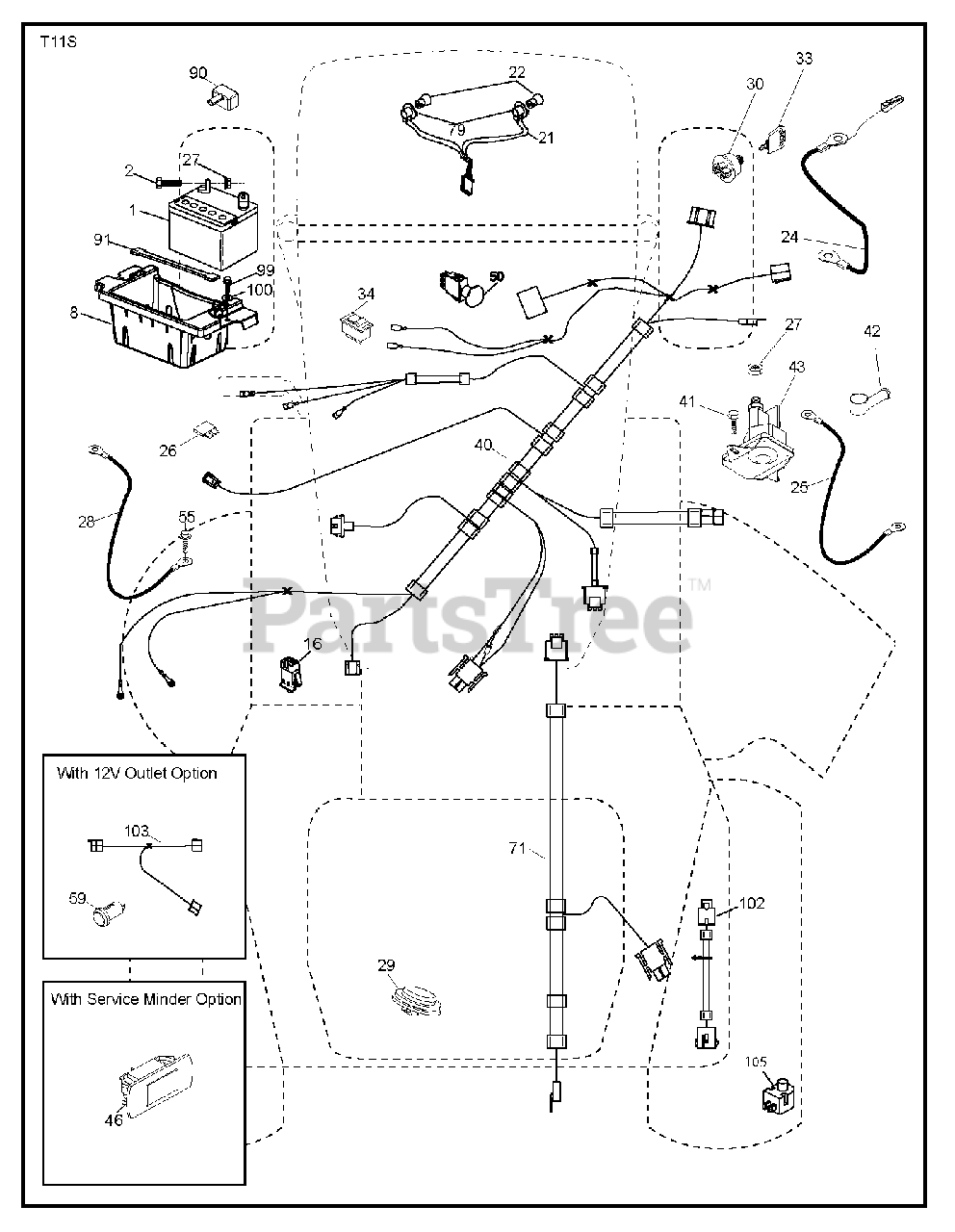

LT 2323 A2 (960410262-00) - Jonsered Lawn Tractor (2012-01) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

$7.49

$

In Stock, only 1 left!

0

8

Jonsered 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Jonsered 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 532400253

CABLE.BATT.POS.WIRE.TG.DA SOL
(Superseded to 585555601)

$9.49

$

In Stock, only 3 left!

0

25

Jonsered 532412895

CABLE.STARTER.6G.BL/RED.17.5
(Superseded to 585555501)

$9.49

$

In Stock, only 2 left!

0

26

Jonsered 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

Jonsered 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

In Stock, only 1 left!

0

33

Jonsered 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

40

Jonsered 532401098

HARNESS IGN. DASH

$120.99

$

Usually ships in 3-10 days

0

41

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

42

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Jonsered 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

46

Jonsered 532401763

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

50

Jonsered 532174651

PTO SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 5

0

55

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

Jonsered 532194276

HARNESS-CHASSIS SUB

$40.99

$

Usually ships in 3-10 days

0

79

Jonsered 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

90

Jonsered 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

91

Jonsered 532190270

STRAP, BATTERY MOUNT

$9.99

$

In Stock, Qty 13

0

99

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

100

$6.49

$

Usually ships in 3-10 days

0

102

Jonsered 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

105

Jonsered 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0
