LT 2320 CMA2 (960510084-02) - Jonsered Lawn Tractor (2015-12) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

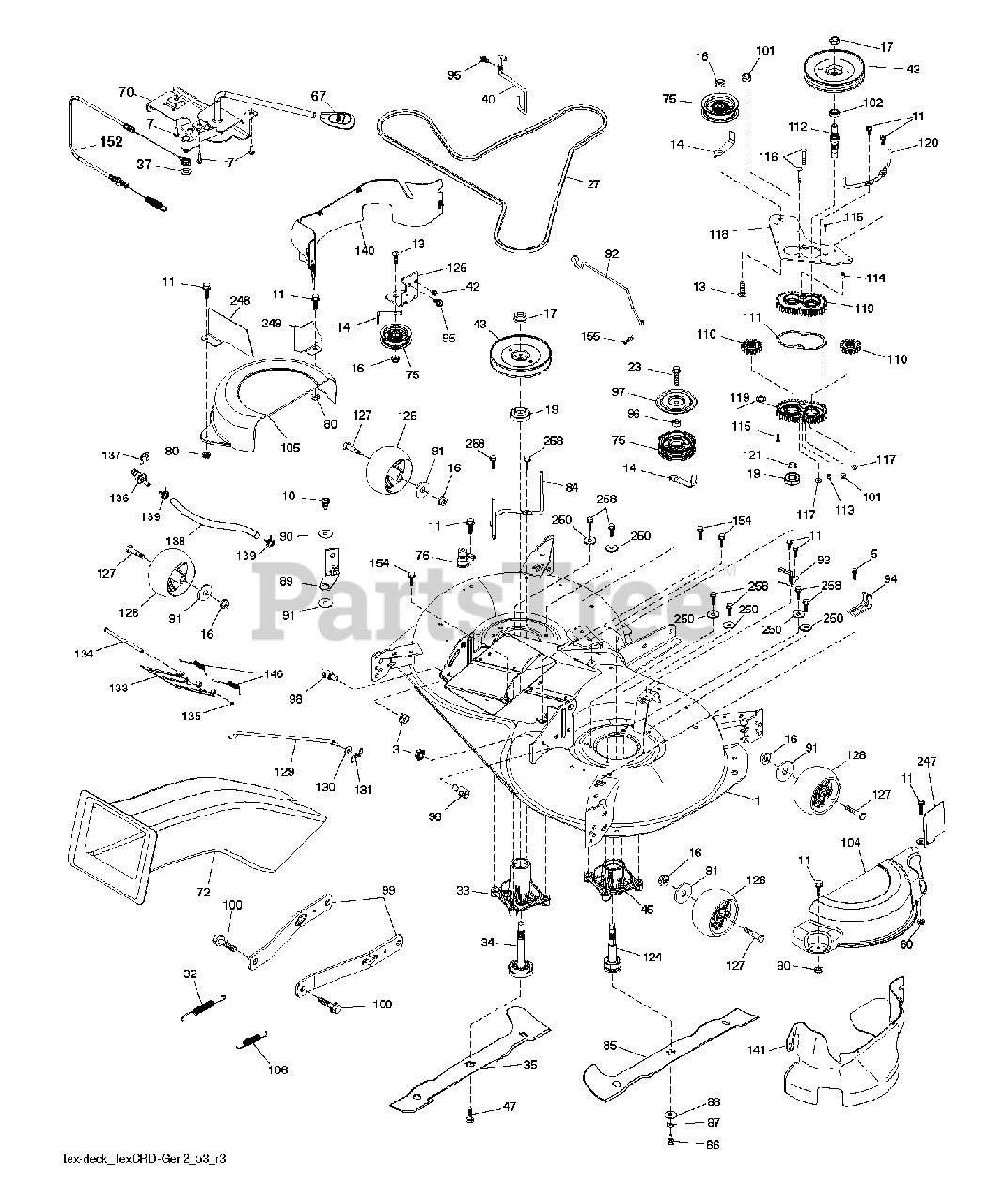

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 532447736

No Description Available
(Superseded to 583767101)

$363.99

$

Usually ships in 3-10 days

0

3

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

5

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

7

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

10

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 1 left!

0

11

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

13

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

19

Jonsered 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

23

Jonsered 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Jonsered 532445880

No Description Available
(Superseded to 583581601)

$91.99

$

Usually ships in 3-10 days

0

32

Jonsered 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 8

0

33

Jonsered 580796101

No Description Available
(Superseded to 587126105)

$53.99

$

In Stock, Qty 18

0

34

Jonsered 580854701

No Description Available
(Superseded to 587126105)

$53.99

$

In Stock, Qty 18

0

35

Jonsered 581517901

No Description Available

$109.99

$

Usually ships in 3-10 days

0

37

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

40

Jonsered 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 7

0

42

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

43

Jonsered 532443239

No Description Available
(Superseded to 583568201)

$53.99

$

Usually ships in 3-10 days

0

45

Jonsered 581650801

No Description Available
(Superseded to 581650501)

$74.99

$

In Stock, only 1 left!

0

47

Jonsered 584309301

Screw, 7/16 X 20 X 1"

$3.99

$

In Stock, only 3 left!

0

67

Jonsered 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

70

Jonsered 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$87.99

$

In Stock, Qty 9

0

72

Jonsered 581454102

CHUTE 10797 TEX GEN
(Superseded to 581454103)

$91.99

$

Usually ships in 3-10 days

0

75

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

76

Jonsered 532439640

No Description Available
(Superseded to 583544301)

$8.99

$

Usually ships in 3-10 days

0

80

Jonsered 532423062

PALNUT 1/4

$4.99

$

In Stock, only 4 left!

0

84

Jonsered 532443235

No Description Available
(Superseded to 583567901)

$11.99

$

Usually ships in 3-10 days

0

85

Jonsered 581518001

No Description Available

$109.99

$

Usually ships in 3-10 days

0

86

Jonsered 532181713

No Description Available
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

87

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

88

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 1 left!

0

89

Jonsered 532197261

ARM BRAKE MOWER
(Superseded to 597074201)

$14.99

$

In Stock, only 2 left!

0

90

Jonsered 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

91

Jonsered 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

92

Jonsered 532443233

No Description Available
(Superseded to 583567801)

$24.99

$

Usually ships in 3-10 days

0

93

Jonsered 532438125

No Description Available
(Superseded to 583527101)

$26.99

$

Usually ships in 3-10 days

0

94

Jonsered 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

95

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

96

Jonsered 532400271

No Description Available
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Jonsered 532182061

No Description Available
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Jonsered 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

100

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Jonsered 873680900

No Description Available
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Jonsered 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

104

Jonsered 581714001

No Description Available

$24.99

$

Usually ships in 3-10 days

0

105

Jonsered 532444755

No Description Available

$20.99

$

Usually ships in 3-10 days

0

106

Jonsered 532193216

SPRING.BRAKE.RETURN.38"

$7.49

$

In Stock, only 1 left!

0

110

Jonsered 587934801

CRD.GEAR.OUTPUT (3 2) (2 2)

$13.99

$

Usually ships in 3-10 days

0

111

Jonsered 532436979

No Description Available
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Jonsered 532443852

No Description Available
(Superseded to 583571601)

$17.99

$

In Stock, only 1 left!

0

113

Jonsered 532438533

No Description Available
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

114

Jonsered 588170501

VENT.BREATHER.1/8 NPT

$10.99

$

Usually ships in 3-10 days

0

115

Jonsered 818031016

No Description Available
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Jonsered 872110414

No Description Available
(Superseded to 583611101)

$

$

Not available

117

Jonsered 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

118

Jonsered 532443232

No Description Available
(Superseded to 583567701)

$20.99

$

Usually ships in 3-10 days

0

119

Jonsered 532438166

No Description Available
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Jonsered 532443236

No Description Available
(Superseded to 583568001)

$15.99

$

Usually ships in 3-10 days

0

121

Jonsered 532436985

No Description Available
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Jonsered 581650701

No Description Available
(Superseded to 581650501)

$74.99

$

In Stock, only 1 left!

0

125

Jonsered 532440420

No Description Available
(Superseded to 583548001)

$40.99

$

Usually ships in 3-10 days

0

127

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

128

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

129

Jonsered 532443237

No Description Available
(Superseded to 583568101)

$26.99

$

In Stock, only 1 left!

0

130

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

131

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

133

Jonsered 532438197

No Description Available

$

$

Not available

134

Jonsered 532435861

No Description Available

$

$

Not available

135

Jonsered 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

136

Jonsered 532439639

No Description Available
(Superseded to 583544201)

$6.49

$

Usually ships in 3-10 days

0

137

Jonsered 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

138

Jonsered 532447667

No Description Available
(Superseded to 583591801)

$3.99

$

Usually ships in 3-10 days

0

139

Jonsered 532440742

No Description Available

$

$

Not available

140

Jonsered 501580001

GUARD.ASSEMBLY.107.LH.FRENCH

$37.99

$

Usually ships in 3-10 days

0

141

Jonsered 501579602

GUARD.ASSEMBLY.107.RH.FRENCH

$40.99

$

Usually ships in 3-10 days

0

146

Jonsered 532445896

No Description Available
(Superseded to 583582001)

$3.49

$

Usually ships in 3-10 days

0

152

Jonsered 532447666

(Superseded to 583591701)

$40.99

$

Usually ships in 3-10 days

0

154

Jonsered 532199855

No Description Available
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

155

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

247

Jonsered 581263402

No Description Available

$22.99

$

Usually ships in 3-10 days

0

248

Jonsered 581263602

GUARD.STEEL.CRD.MANDR

$

$

Not available

249

Jonsered 581263502

GUARD.STEEL.CRD.MANDR

$

$

Not available

250

Jonsered 819111212

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

258

Jonsered 584953901

Hex Washer Head Bolt, .313-18 X 1.19

$4.99

$

In Stock, Qty 20+

0

--

Jonsered 581975701

No Description Available

$

$

Not available

--

Jonsered 587126105

Mandrel, Internal Spacer Non-Grease Rev

Note: MANDREL ASSEMBLY TALL (Includes Housing (key 33) (Shaft key 34) and (Bearing key 19) only- Pulley /Nut /Washer and Blade Bolt /Washers Not Included)

$53.99

$

In Stock, Qty 18

0

--

Jonsered 581650501

No Description Available

Note: MANDREL ASSEMBLY SHORT (Includes Housing (key 45) Shaft Assembly (key 124) and Bearing (key 19) only- Pulley /Nut /Washer and Blade Bolt /Washers Not Included)

$74.99

$

In Stock, only 1 left!

0

--

Jonsered 532448132

KIT.CRD.GEABOX.SVC

Note: Gear Case Kit Use 75 oz Shell 460 Oil (Include Gear Output (key 110) Gasket Gearcase (key 111) Shaft Gearcase (key 112) Plug Oil (key 113) Vent Breather 1 /8 NPT (key 114) Screw Torx (key 115) Gearcase Subasm (key 119)

$

$

Not available
