LT 2320 CMA2 (960510084-02) - Jonsered Lawn Tractor (2015-12) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

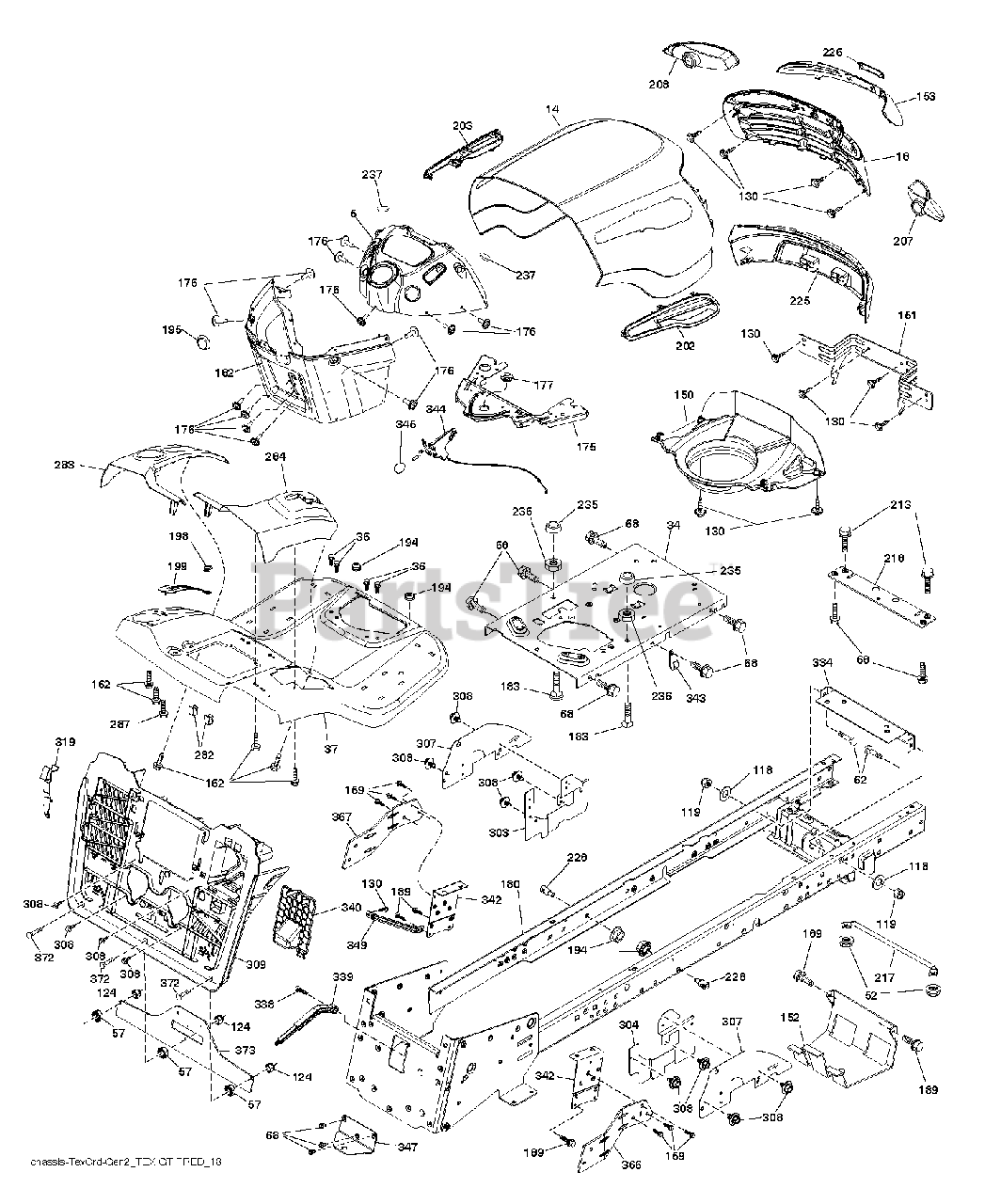

CHASSIS ENCLOSURES Parts Diagram

  • Title
5

Jonsered 532441882

No Description Available

$

$

Not available

14

Jonsered 532443824

No Description Available

$91.99

$

Usually ships in 3-10 days

0

18

Jonsered 532427333

No Description Available

$

$

Not available

34

Jonsered 580910901

No Description Available
(Superseded to 593944402)

$85.99

$

Usually ships in 3-10 days

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532442231

No Description Available

$157.99

$

Usually ships in 3-10 days

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

57

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

$6.49

$

Usually ships in 3-10 days

0

68

$6.49

$

Usually ships in 3-10 days

0

118

$4.99

$

In Stock, Qty 5

0

119

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

124

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

150

Jonsered 584862901

PREDATOR.YT.GT.HOOD.A

$34.99

$

Usually ships in 3-10 days

0

151

Jonsered 532445494

No Description Available

$34.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

153

Jonsered 532424717

No Description Available

$26.99

$

Usually ships in 3-10 days

0

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Jonsered 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Jonsered 583902701

WELDMENT.CHASSIS.TEX.

$159.99

$

Usually ships in 3-10 days

0

182

Jonsered 532438967

No Description Available
(Superseded to 583536501)

$79.99

$

Usually ships in 3-10 days

0

183

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

195

Jonsered 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

198

Jonsered 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

199

Jonsered 532418739

No Description Available
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

202

Jonsered 532445426

No Description Available

$

$

Not available

203

Jonsered 532445583

No Description Available

$

$

Not available

207

Jonsered 532198963

No Description Available
(Superseded to 583248801)

$26.99

$

In Stock, only 1 left!

0

208

Jonsered 532198964

No Description Available
(Superseded to 583248901)

$39.99

$

In Stock, only 1 left!

0

213

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Jonsered 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

In Stock, only 1 left!

0

225

Jonsered 532443825

No Description Available

$36.99

$

Usually ships in 3-10 days

0

226

Jonsered 532424716

No Description Available

$7.49

$

Usually ships in 3-10 days

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Jonsered 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

282

Jonsered 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

283

Jonsered 532447671

No Description Available

$62.99

$

Usually ships in 3-10 days

0

284

Jonsered 532447211

No Description Available

$56.99

$

Usually ships in 3-10 days

0

287

$6.49

$

Usually ships in 3-10 days

0

303

587493102

$

$

Not available

304

Jonsered 587492702

SHIELD.LWR.RH.LT30DECK.PNT.BLK

$

$

Not available

308

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

307

587494501

$

$

Not available

309

Jonsered 581328911

(Superseded to 581328909)

$94.99

$

Usually ships in 3-10 days

0

$14.99

$

Usually ships in 3-10 days

0

334

Jonsered 532442537

No Description Available
(Superseded to 583564401)

$12.99

$

Usually ships in 3-10 days

0

338

Jonsered 532436640

No Description Available
(Superseded to 583510201)

$6.49

$

Usually ships in 3-10 days

0

339

Jonsered 532436641

No Description Available
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

340

Jonsered 581329001

No Description Available
(Superseded to 581328906)

$125.99

$

Usually ships in 3-10 days

0

342

Jonsered 532435938

No Description Available
(Superseded to 583507901)

$8.99

$

Usually ships in 3-10 days

0

343

Jonsered 532440749

No Description Available

$

$

Not available

344

Jonsered 532438970

No Description Available
(Superseded to 583536701)

$133.99

$

Usually ships in 3-10 days

0

345

Jonsered 532440639

No Description Available
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0

347

Jonsered 532442887

(Superseded to 583566701)

$14.99

$

Usually ships in 3-10 days

0

349

Jonsered 532436606

No Description Available
(Superseded to 583509701)

$6.99

$

Usually ships in 3-10 days

0

366

Jonsered 581314602

No Description Available

$34.99

$

Usually ships in 3-10 days

0

367

Jonsered 581314502

No Description Available

$34.99

$

Usually ships in 3-10 days

0

372

Jonsered 539109800

RHSNB, 1/4-20 X 1, GR5

$4.99

$

Usually ships in 3-10 days

0

373

Jonsered 586299803

REINFORCEMENT BACKPLATE. CRD B

$68.99

$

Usually ships in 3-10 days

0

----

Jonsered 532400944

No Description Available
(Superseded to 531307007)

$83.99

$

Usually ships in 3-10 days

0
