LT 2320 CMA2 (960510072-00) - Jonsered Lawn Tractor (2012-11) DRIVE Parts Diagram

Lawn Tractor

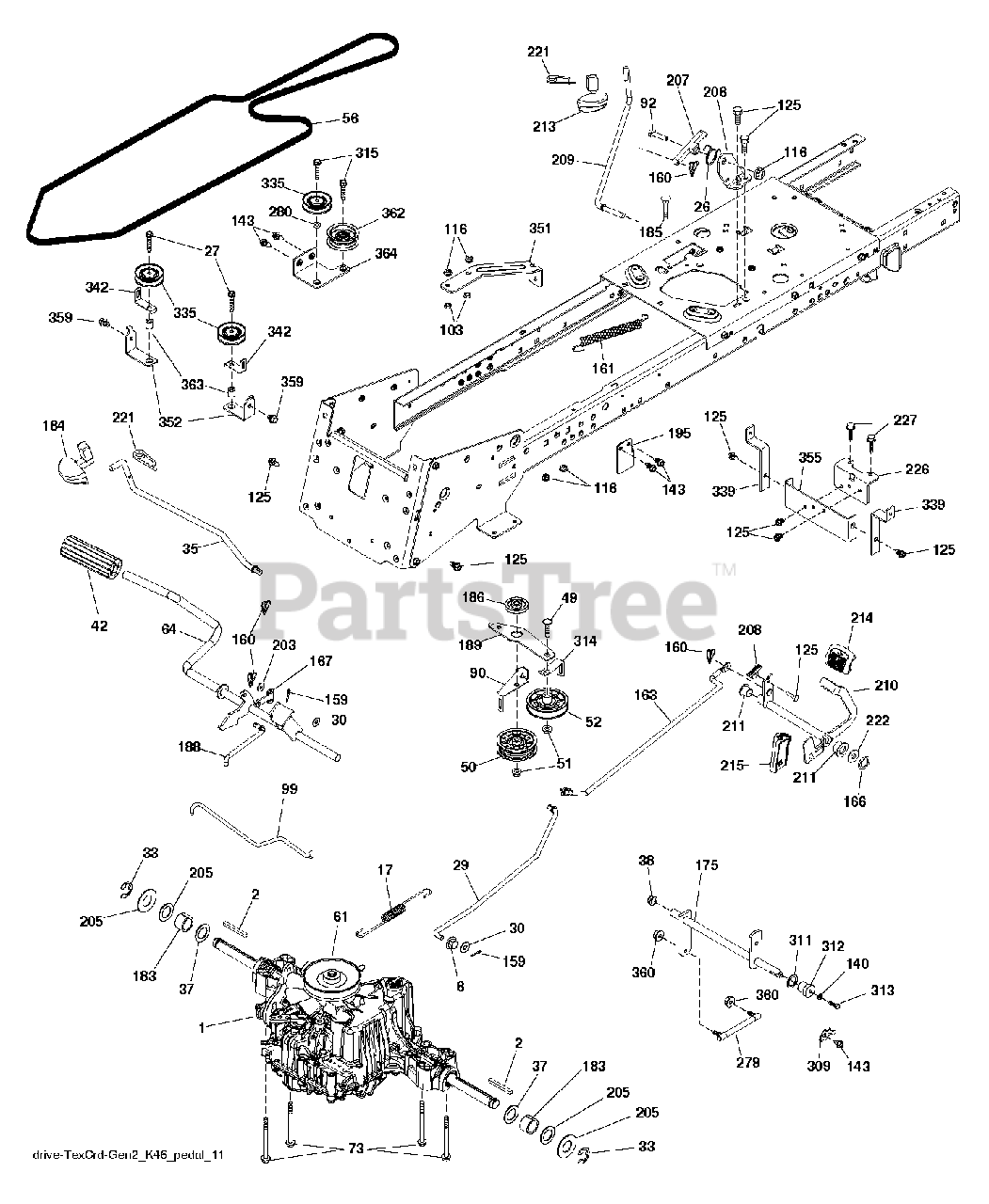

DRIVE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: Transaxle Tufftorq K46DF (446488)

$

$

Not available

2

Jonsered 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

6

Jonsered 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

17

Jonsered 532436227

No Description Available
(Superseded to 583508701)

$7.99

$

Usually ships in 3-10 days

0

26

Jonsered 532199679

SPRING.RETURN.CRUISE

$6.49

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

29

Jonsered 532442795

No Description Available

$

$

Not available

30

Jonsered 819131616

No Description Available
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

33

Jonsered 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 532435486

ROD.BRAKE.PARTK.HUSQ.TEX
(Superseded to 583864501)

$7.49

$

Usually ships in 3-10 days

0

37

Jonsered 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

38

Jonsered 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Jonsered 532442781

No Description Available
(Superseded to 583566401)

$51.99

$

In Stock, Qty 9

0

61

Jonsered 532445151

No Description Available
(Superseded to 583577801)

$48.99

$

Usually ships in 3-10 days

0

64

Jonsered 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Jonsered 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

90

Jonsered 532443605

No Description Available
(Superseded to 583570001)

$5.99

$

Usually ships in 3-10 days

0

92

Jonsered 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Jonsered 532443947

No Description Available

$

$

Not available

103

Jonsered 873350500

JAM NUT TI

$8.99

$

Usually ships in 3-10 days

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

140

Jonsered 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

143

$6.49

$

Usually ships in 3-10 days

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Jonsered 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Jonsered 532442793

No Description Available
(Superseded to 583566501)

$40.99

$

Usually ships in 3-10 days

0

166

Jonsered 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

175

Jonsered 532429359

No Description Available
(Superseded to 583450901)

$21.99

$

Usually ships in 3-10 days

0

183

Jonsered 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Jonsered 532441455

HANDLE.PARKG.BRK.HUSQ/PRED.667
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 10

0

186

Jonsered 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Jonsered 532433611

No Description Available
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

195

Jonsered 532435865

No Description Available

$

$

Not available

203

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

$4.99

$

In Stock, Qty 20+

0

206

Jonsered 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$5.99

$

Usually ships in 3-10 days

0

207

Jonsered 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Jonsered 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Jonsered 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Jonsered 532400980

ROCKER.ASM.PEDAL.CONTR

$37.99

$

In Stock, only 1 left!

0

211

Jonsered 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

213

Jonsered 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

214

Jonsered 532421263

PAD PEDAL FORWARD

$8.99

$

In Stock, only 1 left!

0

215

Jonsered 532419482

No Description Available
(Superseded to 583376501)

$10.99

$

Usually ships in 3-10 days

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

Jonsered 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

226

Jonsered 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Jonsered 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

279

Jonsered 532444283

No Description Available

$

$

Not available

280

$6.49

$

Usually ships in 3-10 days

0

309

Jonsered 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

311

Jonsered 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

314

Jonsered 532444713

No Description Available
(Superseded to 583575801)

$4.99

$

Usually ships in 3-10 days

0

315

Jonsered 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

335

Jonsered 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

339

Jonsered 532436867

No Description Available
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

342

Jonsered 532182682

No Description Available
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

351

Jonsered 532436998

No Description Available
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

352

Jonsered 532435645

No Description Available
(Superseded to 583506401)

$5.99

$

Usually ships in 3-10 days

0

355

Jonsered 532435669

No Description Available
(Superseded to 583506501)

$8.99

$

Usually ships in 3-10 days

0

359

$6.49

$

Usually ships in 3-10 days

0

360

Jonsered 532444714

No Description Available
(Superseded to 583575901)

$3.99

$

Usually ships in 3-10 days

0

362

Jonsered 532436812

No Description Available
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

363

Jonsered 532442780

No Description Available
(Superseded to 583566301)

$4.99

$

Usually ships in 3-10 days

0

364

Jonsered 532443032

No Description Available
(Superseded to 583567401)

$9.49

$

Usually ships in 3-10 days

0
