LT 2320 A2 (960410347-00) - Jonsered Lawn Tractor (2013-06) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

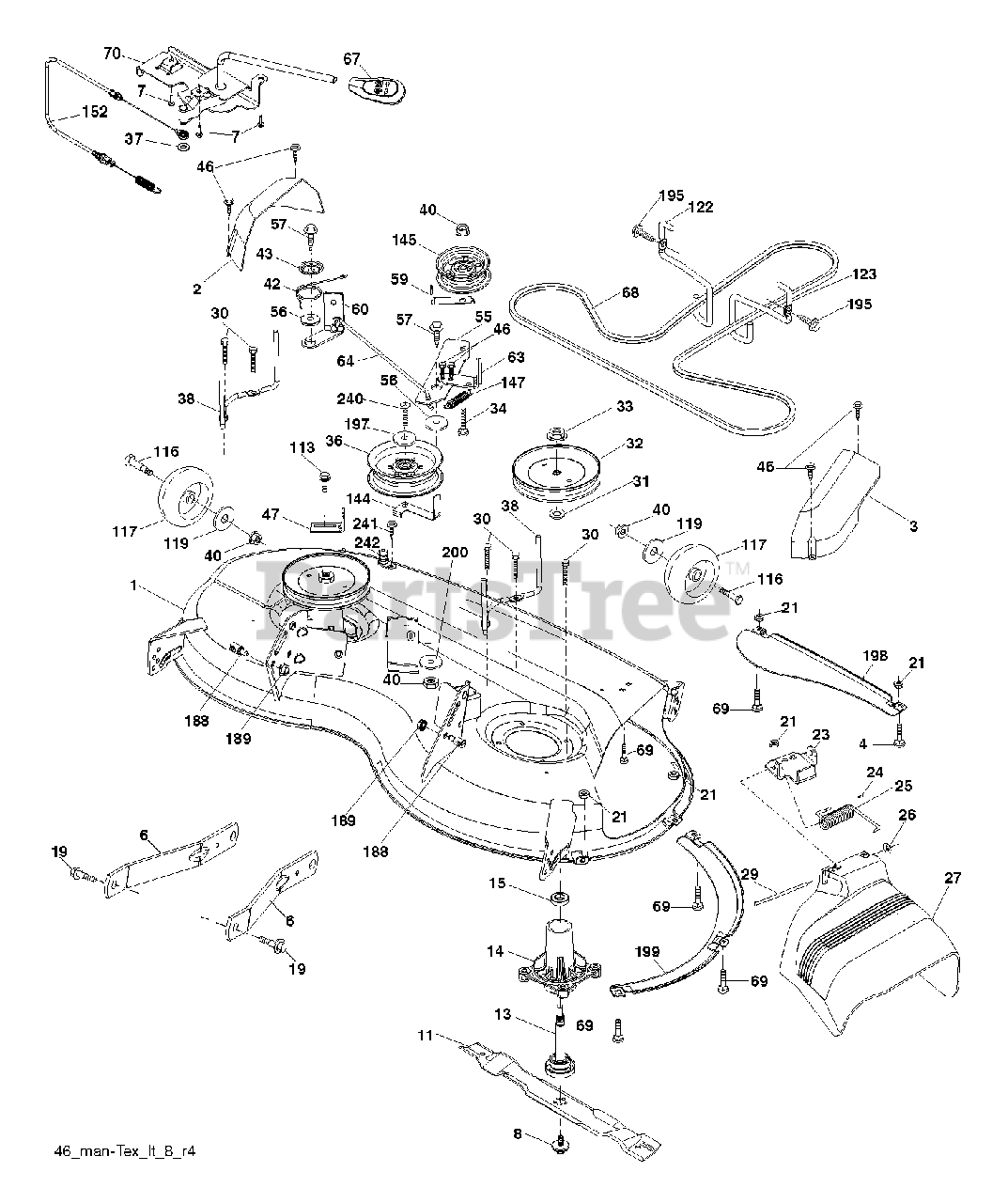

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532441611

No Description Available
(Superseded to 532409781)

$460.99

$

Usually ships in 3-10 days

0

2

Jonsered 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, only 2 left!

0

3

Jonsered 532405506

COVER MANDREL RH

$47.99

$

In Stock, only 4 left!

0

4

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

7

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

8

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Jonsered 532405380

BLADE 46" HI LIFT

$18.99

$

Usually ships in 3-10 days

0

13

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

14

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

$13.99

$

In Stock, Qty 11

0

19

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

21

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Jonsered 192557

No Description Available
(Superseded to 532192557)

$9.49

$

In Stock, Qty 8

0

24

Jonsered 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Jonsered 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

26

Jonsered 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 5

0

29

Jonsered 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 16

0

33

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Jonsered 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 13

0

37

$4.99

$

In Stock, Qty 5

0

38

Jonsered 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

40

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Jonsered 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 7

0

43

Jonsered 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 6

0

46

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Jonsered 532197242

BELT.DRIVE.DECK
(Superseded to 593773401)

$62.99

$

In Stock, Qty 7

0

55

Jonsered 532197249

IDLER.ARM

$

$

Not available

56

Jonsered 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

59

Jonsered 532141043

GUARD, BELT

$

$

Not available

60

Jonsered 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532199471)

$17.99

$

In Stock, only 3 left!

0

63

Jonsered 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$17.99

$

In Stock, Qty 16

0

64

Jonsered 532405138

LINKAGE BRAKE
(Superseded to 532405139)

$37.99

$

In Stock, Qty 19

0

67

Jonsered 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

68

Jonsered 532405143

V BELT
(Superseded to 584453101)

$56.99

$

In Stock, Qty 20+

0

69

Jonsered 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Jonsered 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$87.99

$

In Stock, Qty 8

0

113

$4.99

$

Usually ships in 3-10 days

0

116

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

119

$1.99

$

Usually ships in 3-10 days

0

122

Jonsered 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, only 4 left!

0

123

Jonsered 532197259

KEEPER BELT RH

$

$

Not available

144

Jonsered 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

145

Jonsered 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

147

Jonsered 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

152

Jonsered 532435111

CABLE.CLUTCH.MANUAL.

$34.99

$

In Stock, only 2 left!

0

188

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

195

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

197

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

198

Jonsered 532403149

BAFFLE CENTER FRONT

$

$

Not available

199

Jonsered 532403150

BAFFLE FRONT RH

$

$

Not available

200

Jonsered 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

240

Jonsered 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, only 2 left!

0

241

$7.49

$

In Stock, only 2 left!

0

242

Jonsered 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

--

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

--

Jonsered 581865701

No Description Available

$

$

Not available
