LT 2320 A2 (960410301-00) - Jonsered Lawn Tractor (2012-11) ENGINE Parts Diagram

Lawn Tractor

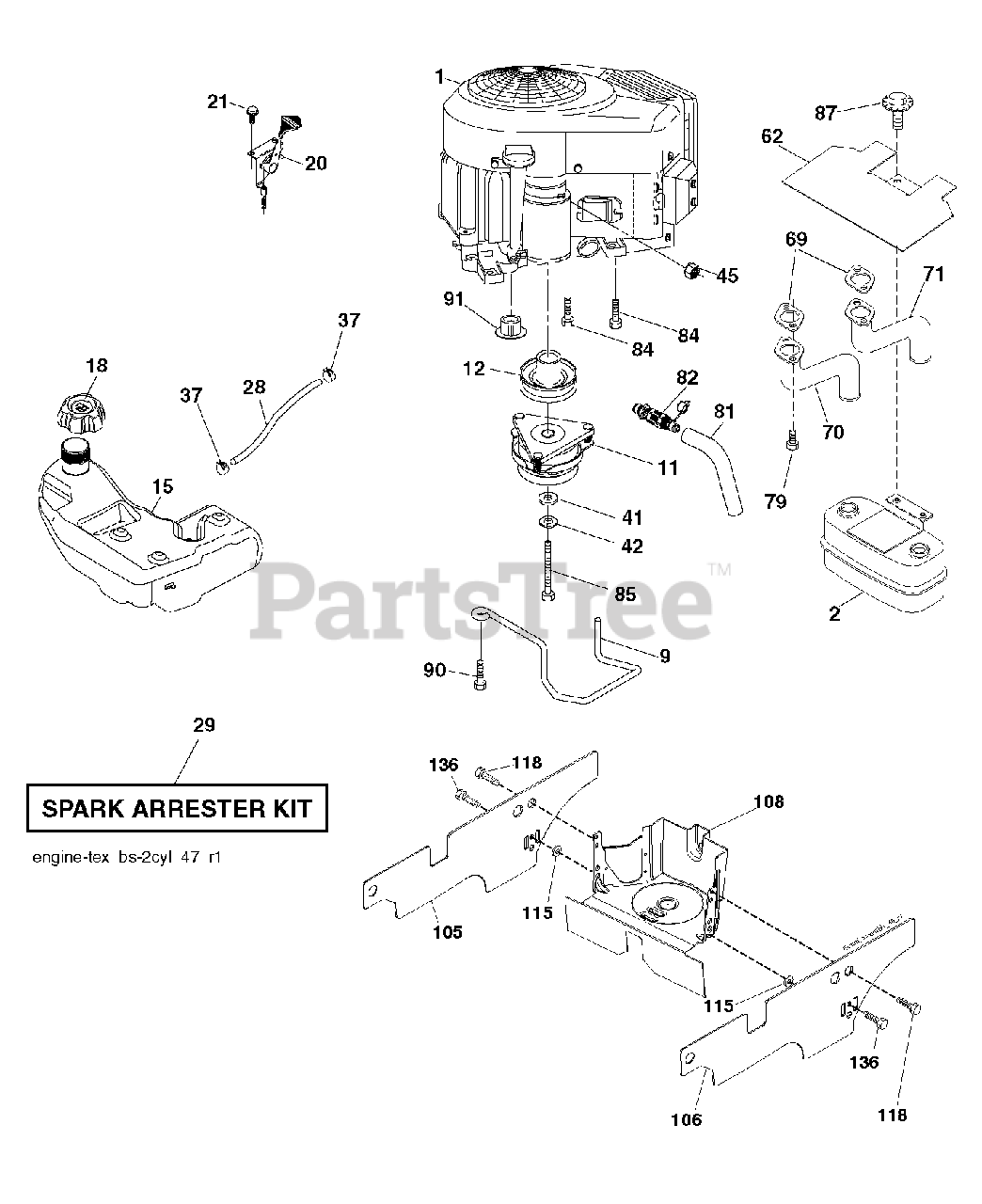

ENGINE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: ENGINE BRIGGS MODEL NO 406777-0177-B1 (581583801)

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Jonsered 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

11

Jonsered 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

12

Jonsered 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Jonsered 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

18

Jonsered 532430218

CAP.ASM.FUEL.TANK.3"BLACK
(Superseded to 584248701)

$17.99

$

Usually ships in 3-10 days

0

20

Jonsered 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$30.99

$

In Stock, only 1 left!

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

Jonsered 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

Note: LH

$44.99

$

In Stock, only 1 left!

0

71

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

Note: RH

$27.99

$

In Stock, only 1 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

82

Jonsered 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Jonsered 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Jonsered 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

105

Jonsered 532415606

No Description Available

$

$

Not available

106

Jonsered 532415611

No Description Available

$

$

Not available

108

Jonsered 532426803

No Description Available
(Superseded to 583437601)

$121.99

$

Usually ships in 3-10 days

0

115

Jonsered 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

118

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

136

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0
