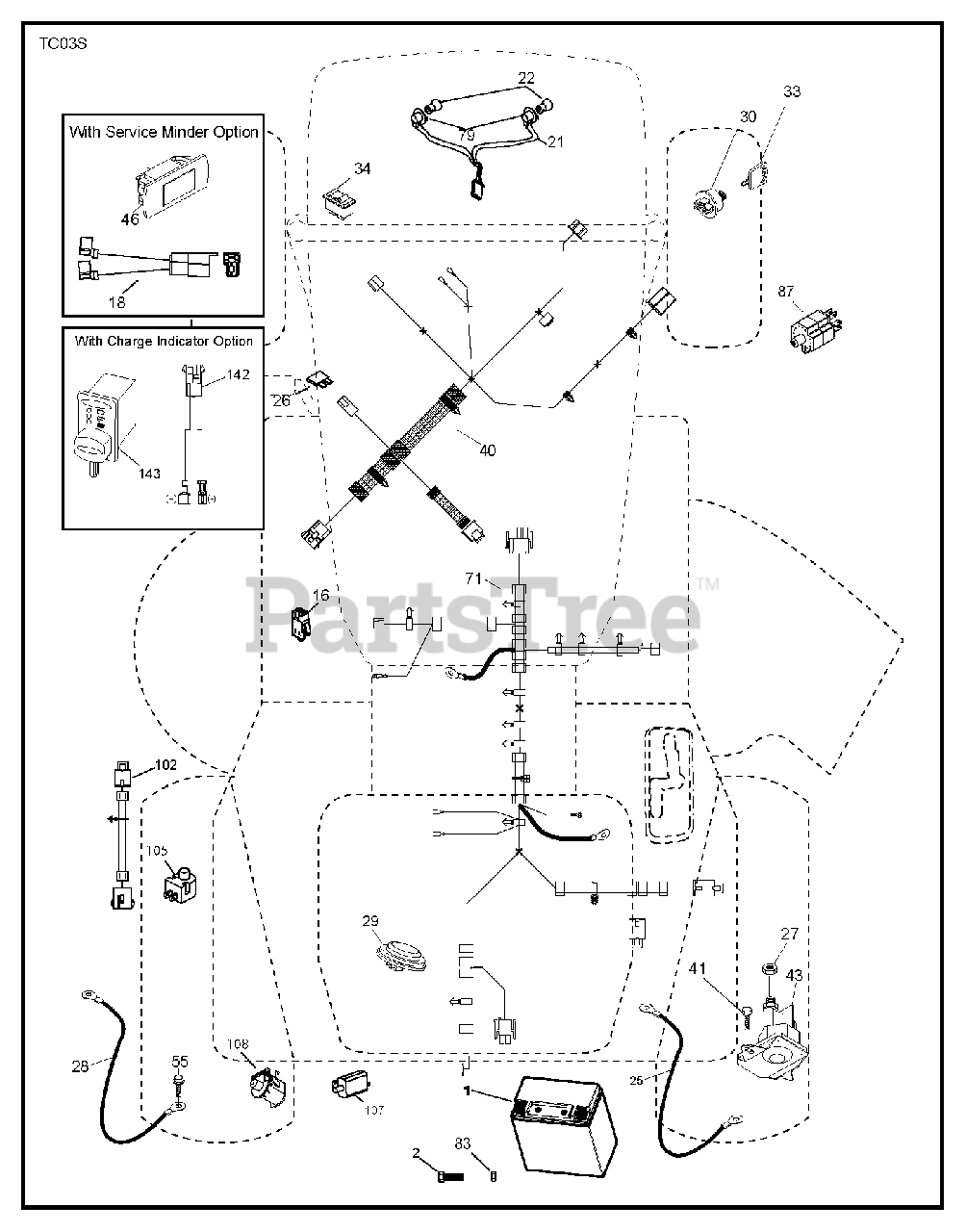

LT 2317 CMA2 (960510111-00) - Jonsered Lawn Tractor (2013-06) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Jonsered 532437157

No Description Available
(Superseded to 583516701)

$206.99

$

Usually ships in 3-10 days

0

2

Jonsered 532440923

No Description Available
(Superseded to 596320101)

$2.49

$

Usually ships in 3-10 days

0

16

Jonsered 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

21

Jonsered 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

Jonsered 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

25

Jonsered 581489801

No Description Available
(Superseded to 583516901)

$6.99

$

Usually ships in 3-10 days

0

26

Jonsered 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Jonsered 581489802

No Description Available

$10.99

$

Usually ships in 3-10 days

0

29

Jonsered 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

Jonsered 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

Jonsered 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

34

Jonsered 532110712

SWITCH LT

$9.49

$

In Stock, only 2 left!

0

40

Jonsered 532421002

No Description Available
(Superseded to 583384801)

$121.99

$

Usually ships in 3-10 days

0

41

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

43

Jonsered 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 15

0

46

Jonsered 532401763

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

55

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

71

Jonsered 532440820

No Description Available
(Superseded to 583552001)

$72.99

$

Usually ships in 3-10 days

0

79

Jonsered 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

83

Jonsered 532436774

No Description Available
(Superseded to 583511701)

$2.49

$

Usually ships in 3-10 days

0

87

Jonsered 532421060

No Description Available

$

$

Not available

102

Jonsered 532441262

No Description Available
(Superseded to 583555601)

$15.99

$

Usually ships in 3-10 days

0

105

Jonsered 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

107

Jonsered 532180379

No Description Available
(Superseded to 583100701)

$15.99

$

In Stock, only 1 left!

0

108

Jonsered 532421062

SWITCH.SNAPMOUNT.NC

$14.99

$

In Stock, only 1 left!

0
