LT 2317 CMA2 (960510081-01) - Jonsered Lawn Tractor (2013-01) ENGINE Parts Diagram

Lawn Tractor

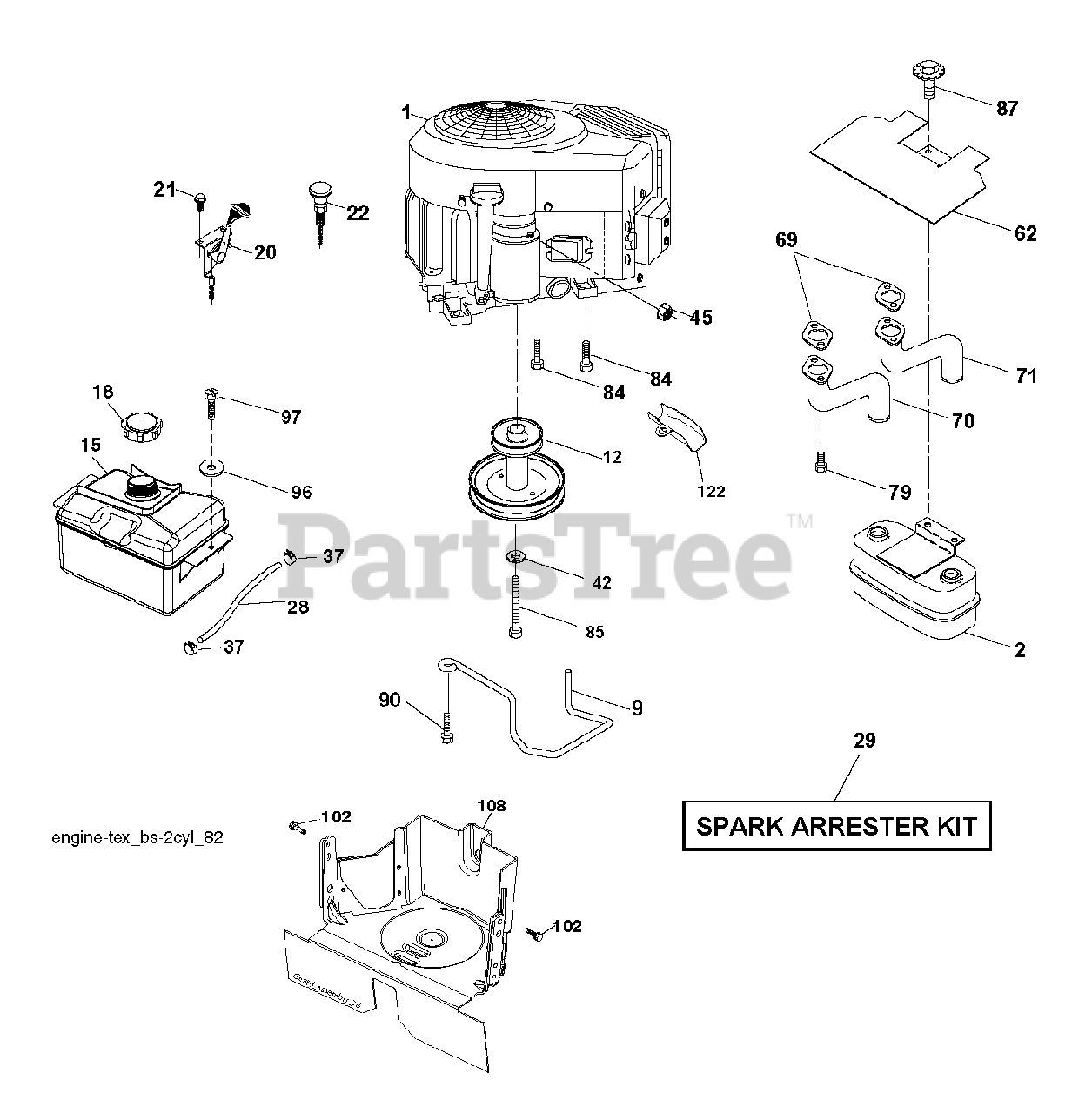

ENGINE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: ENGINE B S MODEL NO 405577-2220-B1 (438697)

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Jonsered 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

12

Jonsered 532405471

PULLY ENGINE
(Superseded to 586478501)

$40.99

$

In Stock, only 2 left!

0

15

Jonsered 581289901

No Description Available

$87.99

$

In Stock, only 1 left!

0

18

Jonsered 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Jonsered 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

22

Jonsered 532191592

No Description Available

$

$

Not available

28

Jonsered 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

70

Jonsered 532159955

TUBE MANIFOLD LH
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

71

Jonsered 532160589

EXHAUST TUBE RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Jonsered 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 6

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

96

$6.49

$

Usually ships in 3-10 days

0

97

Jonsered 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

102

Jonsered 817060516

SCREW 5/16-18X1

$6.49

$

Usually ships in 3-10 days

0

108

Jonsered 532423041

No Description Available
(Superseded to 583400501)

$

$

Not available

122

Jonsered 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
