LT 2317 CMA (960510021-01) - Jonsered Lawn Tractor (2011-07) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

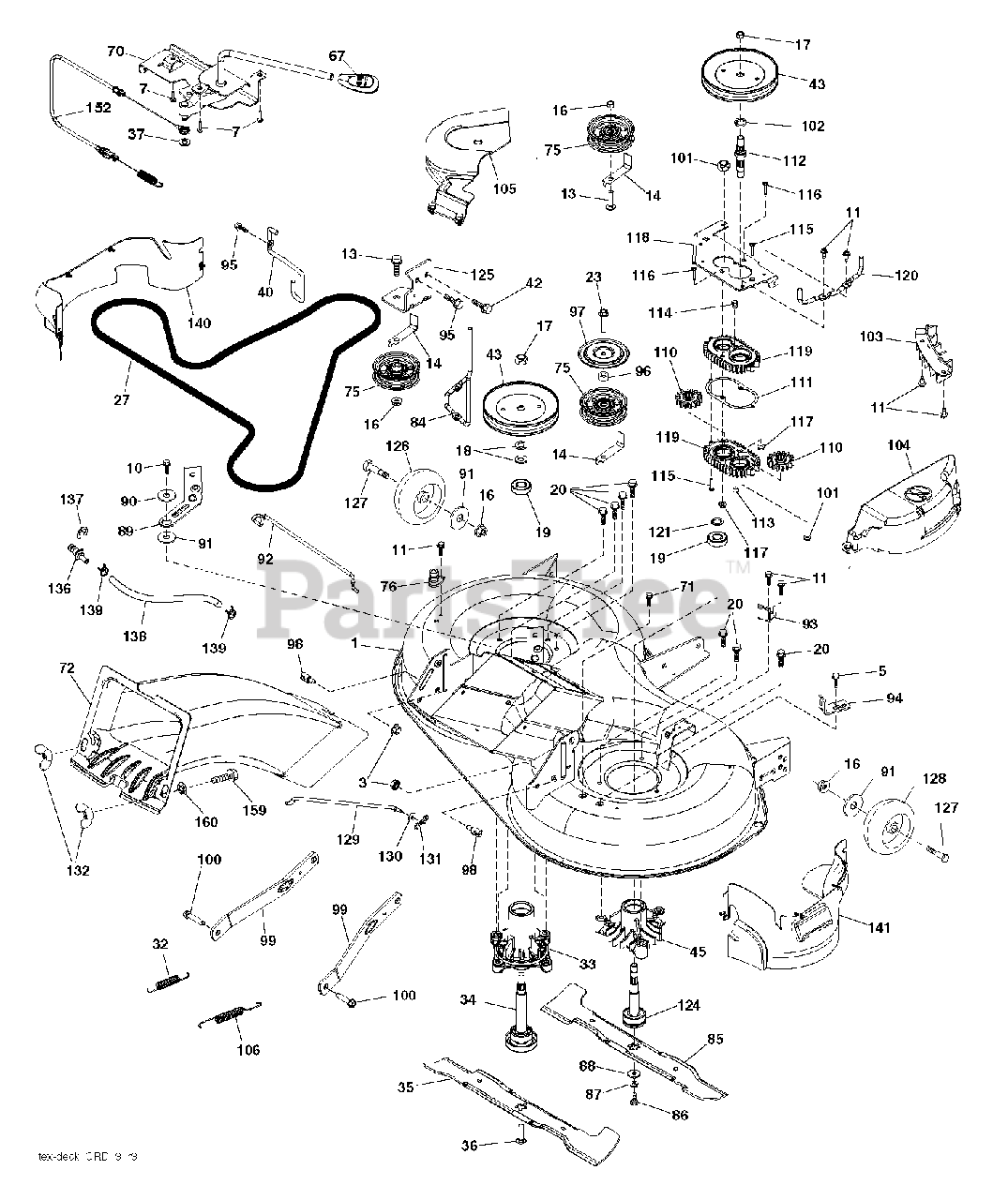

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Jonsered 532436970

No Description Available

$

$

Not available

3

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

5

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

7

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

10

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

11

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

13

Jonsered 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

18

Jonsered 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

19

$13.99

$

In Stock, Qty 11

0

20

Jonsered 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

23

Jonsered 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Jonsered 532439726

No Description Available
(Superseded to 583544901)

$103.99

$

Usually ships in 3-10 days

0

32

Jonsered 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 7

0

33

Jonsered 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

34

Jonsered 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

35

Jonsered 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

36

Jonsered 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

37

$4.99

$

In Stock, Qty 5

0

40

Jonsered 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, only 4 left!

0

42

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

43

Jonsered 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 16

0

45

Jonsered 532137152

HOUSING.MANDREL

$40.99

$

In Stock, only 1 left!

0

67

Jonsered 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

70

Jonsered 532401246

CLUTCH.ASM.MANUAL.LT.PRED

$80.99

$

In Stock, only 1 left!

0

71

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

72

Jonsered 532446810

No Description Available
(Superseded to 583588301)

$84.99

$

Usually ships in 3-10 days

0

75

Jonsered 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

76

Jonsered 532439640

No Description Available
(Superseded to 583544301)

$8.99

$

Usually ships in 3-10 days

0

84

Jonsered 532199189

KEEPER.BELT.LH.MANDREL
(Superseded to 532432520)

$7.99

$

In Stock, Qty 12

0

85

Jonsered 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

86

Jonsered 532181713

No Description Available
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

87

Jonsered 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

88

Jonsered 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

89

Jonsered 532438124

No Description Available
(Superseded to 583527001)

$24.99

$

Usually ships in 3-10 days

0

90

Jonsered 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

91

$1.99

$

Usually ships in 3-10 days

0

92

Jonsered 532436993

No Description Available
(Superseded to 583514701)

$12.99

$

Usually ships in 3-10 days

0

93

Jonsered 532438125

No Description Available
(Superseded to 583527101)

$26.99

$

Usually ships in 3-10 days

0

94

Jonsered 532197250

BRKT.CLUTCH.CABLE

$6.49

$

In Stock, only 2 left!

0

95

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

96

Jonsered 532400271

No Description Available
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Jonsered 532182061

No Description Available
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Jonsered 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

100

Jonsered 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Jonsered 873680900

No Description Available
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Jonsered 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

103

Jonsered 532436992

No Description Available
(Superseded to 583514601)

$8.99

$

Usually ships in 3-10 days

0

104

Jonsered 532441479

No Description Available

$

$

Not available

105

Jonsered 532441478

No Description Available

$

$

Not available

106

Jonsered 532193216

SPRING.BRAKE.RETURN.38"

$7.49

$

In Stock, only 1 left!

0

110

Jonsered 532415356

No Description Available
(Superseded to 583354601)

$13.99

$

Usually ships in 3-10 days

0

111

Jonsered 532436979

No Description Available
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Jonsered 532443852

No Description Available
(Superseded to 583571601)

$17.99

$

In Stock, only 1 left!

0

113

Jonsered 532438533

No Description Available
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

114

Jonsered 532438534

No Description Available
(Superseded to 583533101)

$12.99

$

Usually ships in 3-10 days

0

115

Jonsered 818031016

No Description Available
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Jonsered 872110414

No Description Available
(Superseded to 583611101)

$

$

Not available

117

Jonsered 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

118

Jonsered 532436989

No Description Available
(Superseded to 583514401)

$20.99

$

Usually ships in 3-10 days

0

119

Jonsered 532438166

No Description Available
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Jonsered 532436991

No Description Available
(Superseded to 583514501)

$9.99

$

In Stock, only 1 left!

0

121

Jonsered 532436985

No Description Available
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Jonsered 532436986

No Description Available
(Superseded to 583514201)

$43.99

$

In Stock, only 4 left!

0

125

Jonsered 532436994

No Description Available
(Superseded to 583514801)

$10.99

$

Usually ships in 3-10 days

0

127

Jonsered 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

128

Jonsered 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

129

Jonsered 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, only 2 left!

0

130

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

131

Jonsered 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

132

Jonsered 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

136

Jonsered 532439639

No Description Available
(Superseded to 583544201)

$6.49

$

Usually ships in 3-10 days

0

137

Jonsered 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

138

Jonsered 532440743

No Description Available

$4.99

$

Usually ships in 3-10 days

0

139

Jonsered 532440742

No Description Available

$

$

Not available

140

Jonsered 532448632

No Description Available

$

$

Not available

141

Jonsered 532448530

No Description Available

$

$

Not available

152

Jonsered 532440488

No Description Available
(Superseded to 583548401)

$37.99

$

Usually ships in 3-10 days

0

159

Jonsered 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

$4.99

$

Usually ships in 3-10 days

0

--

Jonsered 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

--

Jonsered 532441131

No Description Available
(Superseded to 583555301)

$1577.99

$

Usually ships in 3-10 days

0
