LT 2317 CM A2 (960510043-00) - Husqvarna Lawn Tractor (2012-01) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

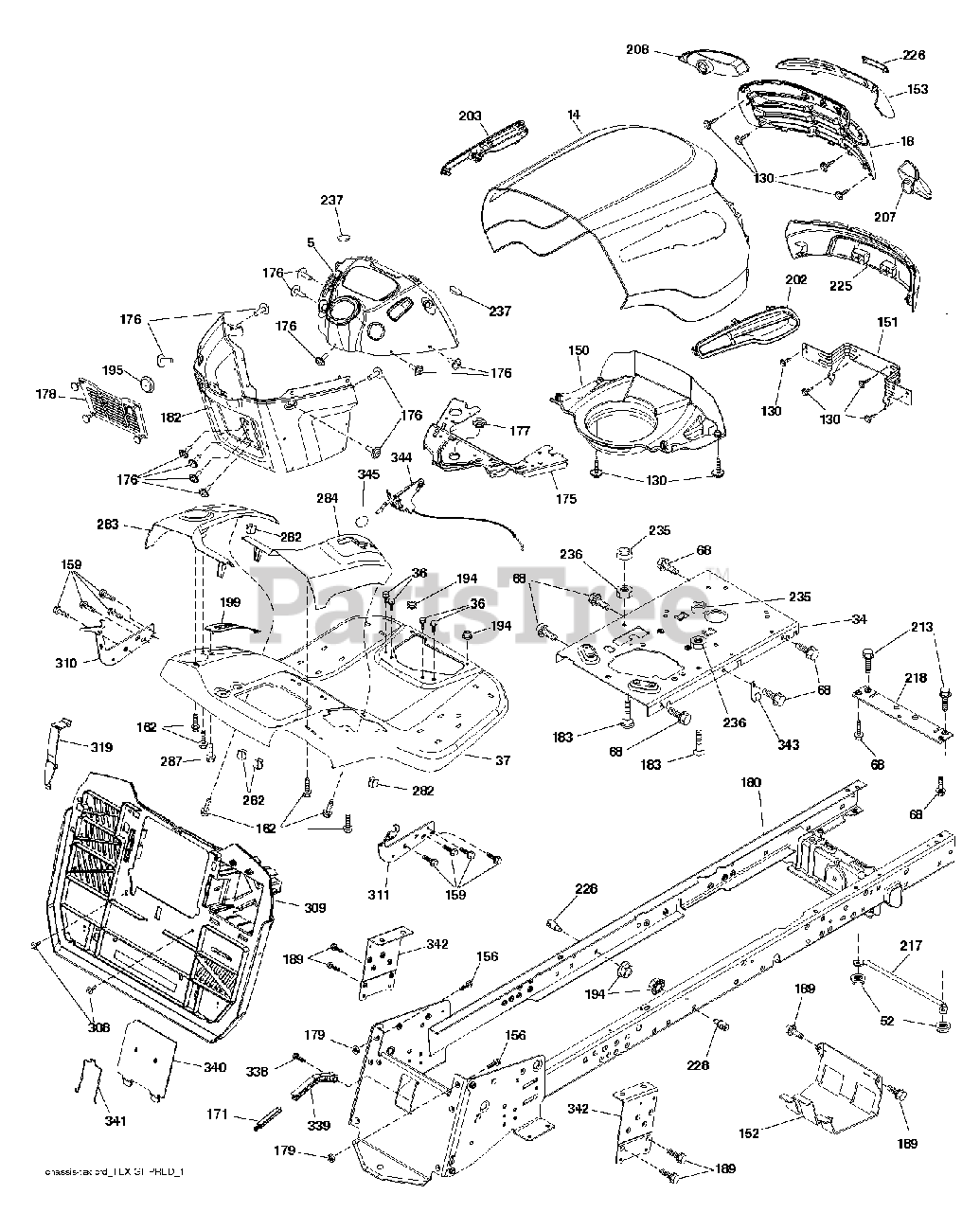

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Electrolux/AYP 532446639

No Description Available
(Superseded to 583752401)

$72.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532443824

HOOD.PNT.PREDATOR.YT/GT.667

$91.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532427333

GRILLE.SVC.PREDATOR.YT.TEX

$

$

Not available

34

Electrolux/AYP 532447253

NO LONGER AVAILABLE
(Superseded to 583590301)

$68.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532441339

FENDER.TEX.SRD.CRD.BASE

$122.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

150

Electrolux/AYP 532199411

AIR.DUCT.HOOD.PREDATOR.NO.RING

$21.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 532199535

SHIELD BROWNING

$

$

Not available

153

Electrolux/AYP 532424717

LENS.BAR.PREDATOR.YT.CLEAR

$26.99

$

Usually ships in 3-10 days

0

156

Electrolux/AYP 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

159

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

171

Electrolux/AYP 532441289

EXTENSION.BAGGER.FULL.
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 532195227

BUSHING,STEERING

$6.99

$

In Stock, Qty 15

0

178

Electrolux/AYP 532199782

CARGO.ASM.NET.TXGT.W/C

$34.99

$

Usually ships in 3-10 days

0

179

Electrolux/AYP 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

180

Electrolux/AYP 532435472

No Description Available

$

$

Not available

182

Electrolux/AYP 532438967

DASH DASH LOWER
(Superseded to 583536501)

$79.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

194

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

195

Electrolux/AYP 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

199

Electrolux/AYP 532418739

NO LONGER AVAILABLE
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

202

Electrolux/AYP 532445426

No Description Available

$

$

Not available

203

Electrolux/AYP 532445583

No Description Available

$

$

Not available

207

Electrolux/AYP 532198963

No Description Available
(Superseded to 583248801)

$26.99

$

Usually ships in 3-10 days

0

208

Electrolux/AYP 532198964

No Description Available
(Superseded to 583248901)

$39.99

$

Usually ships in 3-10 days

0

213

Electrolux/AYP 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Electrolux/AYP 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

225

Electrolux/AYP 532443825

BUMPER.GRILLE.PREDATOR.YT.667

$36.99

$

Usually ships in 3-10 days

0

226

Electrolux/AYP 532424716

LOGO.PREDATOR GT.TEX.BLACK

$7.49

$

Usually ships in 3-10 days

0

228

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Electrolux/AYP 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Electrolux/AYP 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

282

Electrolux/AYP 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

283

Electrolux/AYP 532440361

CONSOLE.DECKLIFT.LH.SRD.TEXCRD

$125.99

$

Usually ships in 3-10 days

0

284

Electrolux/AYP 532440360

CONSL.SHFT.PEDAL.RH.SRD.TEXCRD

$48.99

$

Usually ships in 3-10 days

0

287

Electrolux/AYP 817600406

SCREW

$6.49

$

Usually ships in 3-10 days

0

308

Electrolux/AYP 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

309

Electrolux/AYP 532436626

No Description Available

$

$

Not available

310

Electrolux/AYP 532446636

LH.ADJUST.HANGER.BRACKET.ASM
(Superseded to 583586501)

$40.99

$

Usually ships in 3-10 days

0

311

Electrolux/AYP 532446637

RH.ADJUST.HANGER.BRACKET.ASM
(Superseded to 583586601)

$40.99

$

Usually ships in 3-10 days

0

319

Electrolux/AYP 532174662

BRACKET.ACTUATOR.BAGGER.SRD

$5.99

$

Usually ships in 3-10 days

0

338

Electrolux/AYP 532436640

BOLT BOLT SHOULDER
(Superseded to 583510201)

$6.49

$

Usually ships in 3-10 days

0

339

Electrolux/AYP 532441288

LEVER.BAGGER.FULL.TEX.
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

340

Electrolux/AYP 532440931

DOOR.PNT.BATTERY.TRY.TEX.CRD.

$9.49

$

Usually ships in 3-10 days

0

341

Electrolux/AYP 532436638

LATCH
(Superseded to 583510101)

$4.99

$

Usually ships in 3-10 days

0

342

Electrolux/AYP 532435938

SUPPORT SUPPORT FENDE
(Superseded to 583507901)

$8.99

$

Usually ships in 3-10 days

0

343

Electrolux/AYP 532440749

Clip
(Superseded to 582671501)

$2.99

$

Usually ships in 3-10 days

0

344

Electrolux/AYP 532438970

CONTROL.EZ.MULCH.TEX/CRD
(Superseded to 583536701)

$133.99

$

Usually ships in 3-10 days

0

345

Electrolux/AYP 532440639

Shift Knob
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0
