LT 2317 CM A (960510005-02) - Husqvarna Lawn Tractor (2012-08) DRIVE Parts Diagram

Lawn Tractor

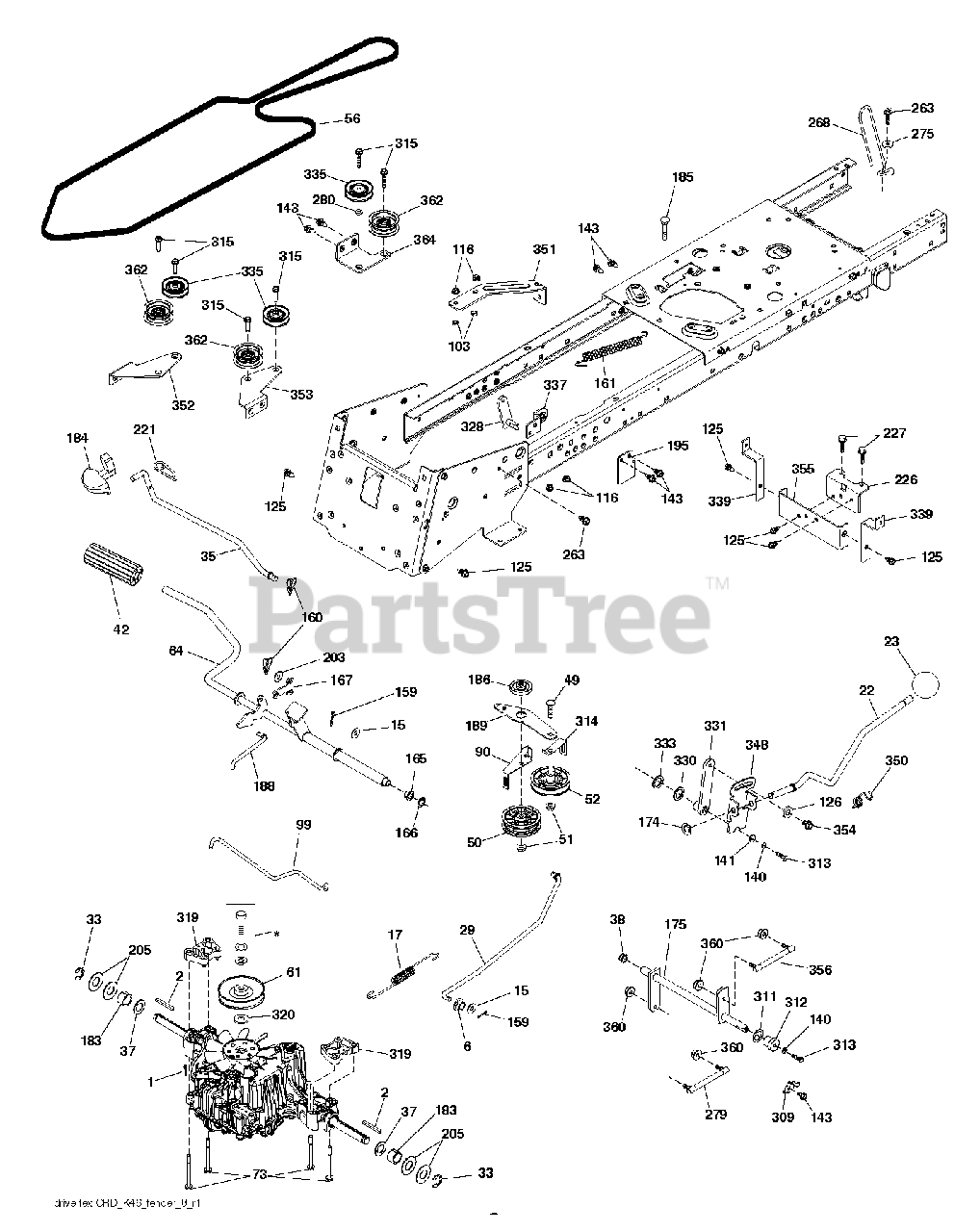

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: Transaxle Tufftorq K46DC (448355)

$

$

Not available

2

Electrolux/AYP 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

6

Electrolux/AYP 532124208

MANDREL ASS'Y

$193.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

17

Electrolux/AYP 532436227

Spring Brake
(Superseded to 583508701)

$7.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532443246

ROD ROD SHIFT FENDER
(Superseded to 583568701)

$28.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532130564

PISTOL KNOB

$14.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532435881

ROD
(Superseded to 583507601)

$37.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532401031

ROD, BRAKE, PARK

$18.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

42

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532441834

V BELT DELV 113 K46 C
(Superseded to 583560601)

$121.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 532437788

Transaxle Pulley
(Superseded to 583522801)

$42.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 532196200

SHAFT.ASM.PEDAL.BRAKE.

$56.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 874490556

No Description Available
(Superseded to 583613201)

$4.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 532443605

KEEPER KEEPER BELT CL
(Superseded to 583570001)

$5.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 532443947

ROD ROD BYPASS CRD TE
(Superseded to 583571801)

$9.99

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 873350500

JAM NUT TI

$8.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

125

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

126

Electrolux/AYP 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

140

Electrolux/AYP 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

141

Electrolux/AYP 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

143

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

161

Electrolux/AYP 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Electrolux/AYP 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 532441823

No Description Available

$

$

Not available

183

Electrolux/AYP 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Electrolux/AYP 532441407

HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532199996)

$66.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Electrolux/AYP 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

188

Electrolux/AYP 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Electrolux/AYP 532433611

BELLCRANK BELLCRANK G
(Superseded to 583492701)

$7.49

$

Usually ships in 3-10 days

0

195

Electrolux/AYP 532435865

No Description Available

$

$

Not available

203

Electrolux/AYP 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

205

Electrolux/AYP 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

221

Electrolux/AYP 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

226

Electrolux/AYP 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

227

Electrolux/AYP 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

263

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

268

Electrolux/AYP 532182402

NO LONGER AVAILABLE
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

275

Electrolux/AYP 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

279

Electrolux/AYP 532444283

LINK SUBASM. LINK AND STUD

$

$

Not available

280

Electrolux/AYP 819111012

WASHER T

$6.49

$

Usually ships in 3-10 days

0

309

Electrolux/AYP 532165581

PLATE FASTENING LT

$4.99

$

Usually ships in 3-10 days

0

311

Electrolux/AYP 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

312

Electrolux/AYP 532165614

HUB

$6.49

$

Usually ships in 3-10 days

0

313

Electrolux/AYP 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

314

Electrolux/AYP 532444713

RETAINER KEEPER BELT
(Superseded to 583575801)

$4.99

$

Usually ships in 3-10 days

0

315

Electrolux/AYP 817580520

BOLT.5/16-18X1.25

$4.99

$

In Stock, only 3 left!

0

319

Electrolux/AYP 532436794

SPACER SPACER TRANSAX
(Superseded to 583512001)

$28.99

$

Usually ships in 3-10 days

0

320

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

328

Electrolux/AYP 532435758

No Description Available

$

$

Not available

330

Electrolux/AYP 532169593

WASHER.NYL.7/8IDX.105"HYD CR

$11.99

$

Usually ships in 3-10 days

0

331

Electrolux/AYP 532443606

HUB HUB SHIFT FENDER
(Superseded to 583570101)

$20.99

$

Usually ships in 3-10 days

0

333

Electrolux/AYP 532170868

WAVE WASHER

$8.99

$

In Stock, only 4 left!

0

335

Electrolux/AYP 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

337

Electrolux/AYP 532435937

BRACKET BRACKET SUPT
(Superseded to 583507801)

$7.99

$

Usually ships in 3-10 days

0

339

Electrolux/AYP 532436867

STRAP STRAP TORQUE K4
(Superseded to 583512601)

$3.99

$

Usually ships in 3-10 days

0

348

Electrolux/AYP 532443607

ARM ARM CLEVIS ROD SH
(Superseded to 583570201)

$9.49

$

Usually ships in 3-10 days

0

350

Electrolux/AYP 532445020

TORSION SPRING SPRING
(Superseded to 583576901)

$2.99

$

Usually ships in 3-10 days

0

351

Electrolux/AYP 532436998

BRACKET BRACKET DECK
(Superseded to 583515101)

$9.99

$

Usually ships in 3-10 days

0

352

Electrolux/AYP 532435819

Idler Bracket
(Superseded to 583507301)

$6.49

$

Usually ships in 3-10 days

0

353

Electrolux/AYP 532436577

Bracket
(Superseded to 583509501)

$7.99

$

Usually ships in 3-10 days

0

354

Electrolux/AYP 817490510

SCREW

$4.99

$

Usually ships in 3-10 days

0

355

Electrolux/AYP 532435669

STRAP STRAP TORQUE K4
(Superseded to 583506501)

$8.99

$

Usually ships in 3-10 days

0

356

Electrolux/AYP 532446441

No Description Available

$

$

Not available

360

Electrolux/AYP 532444714

NUT NUT HEX CENTERLOC
(Superseded to 583575901)

$3.99

$

Usually ships in 3-10 days

0

362

Electrolux/AYP 532436812

IDLER.FLAT.2.25.INCH
(Superseded to 583512101)

$31.99

$

Usually ships in 3-10 days

0

364

Electrolux/AYP 532443032

BRACKET BRACKET IDLER
(Superseded to 583567401)

$9.49

$

Usually ships in 3-10 days

0
