LT 2316 CMA2 (960510006-00) - Jonsered Lawn Tractor (2011-03) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

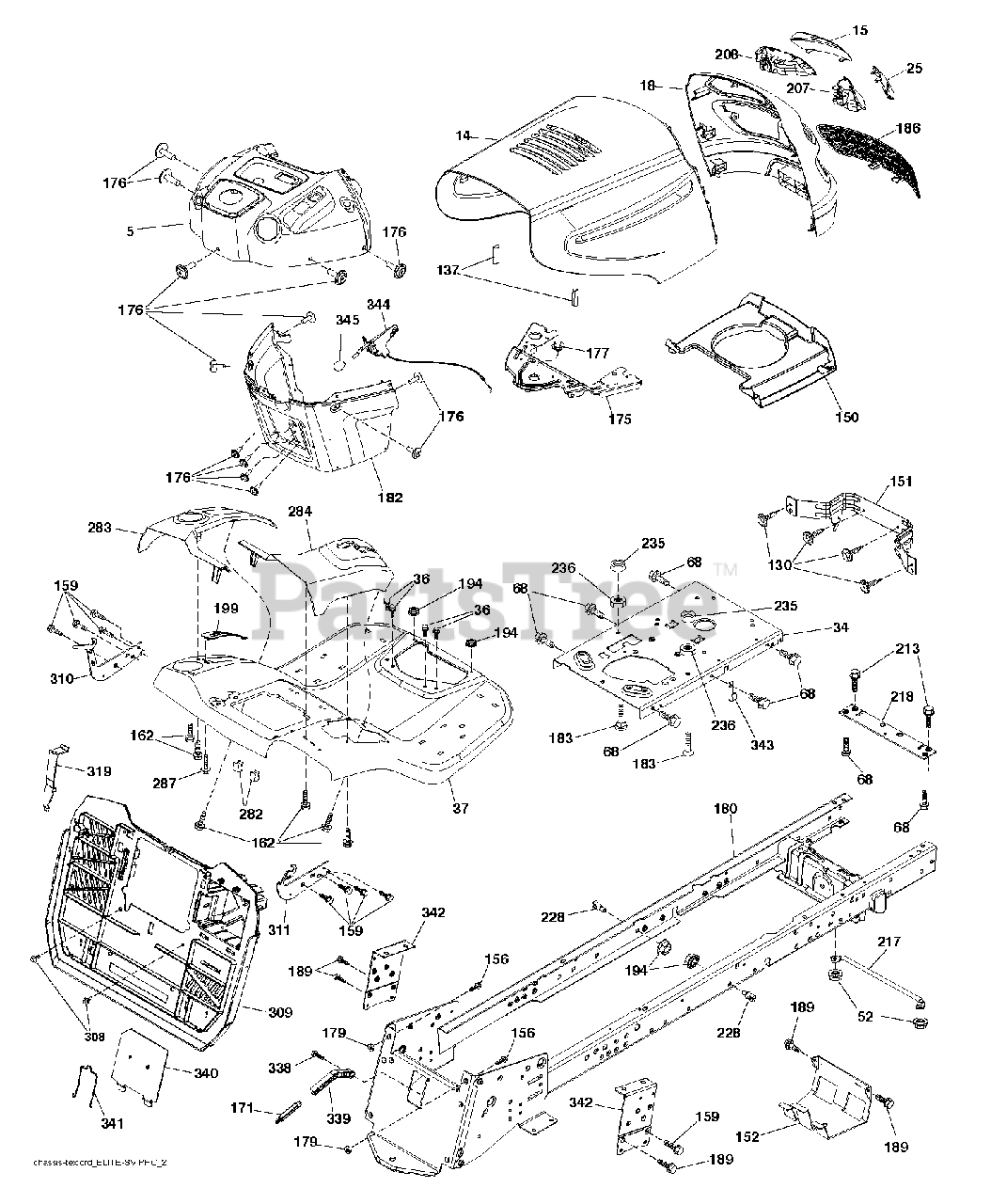

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Jonsered 532412069

No Description Available

$

$

Not available

14

Jonsered 532442882

No Description Available

$61.99

$

Usually ships in 3-10 days

0

15

Jonsered 532189754

No Description Available
(Superseded to 183834599)

$

$

Not available

18

Jonsered 532441945

No Description Available

$80.99

$

Usually ships in 3-10 days

0

25

Jonsered 532189755

No Description Available
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

34

Jonsered 532447253

No Description Available
(Superseded to 583590301)

$68.99

$

In Stock, only 1 left!

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532441339

No Description Available

$122.99

$

Usually ships in 3-10 days

0

52

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

137

Jonsered 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

150

Jonsered 532184322

No Description Available
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

151

Jonsered 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

156

Jonsered 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

159

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

171

Jonsered 532441289

No Description Available
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

175

Jonsered 532193243

CROSSMEMBER.LT

$27.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

179

Jonsered 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

180

Jonsered 532435472

No Description Available

$

$

Not available

182

Jonsered 532439326

No Description Available

$

$

Not available

183

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

186

Jonsered 532189753

No Description Available

$

$

Not available

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

199

Jonsered 532418739

No Description Available
(Superseded to 583371401)

$9.99

$

Usually ships in 3-10 days

0

207

Jonsered 532183833

BEZEL GRILL RH

$

$

Not available

208

Jonsered 532183832

BEZEL GRILL LH

$

$

Not available

213

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Jonsered 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Jonsered 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

282

Jonsered 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

283

Jonsered 532440361

No Description Available

$125.99

$

Usually ships in 3-10 days

0

284

Jonsered 532440360

No Description Available

$48.99

$

Usually ships in 3-10 days

0

287

Jonsered 817600406

SCREW

$6.49

$

Usually ships in 3-10 days

0

308

Jonsered 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

309

Jonsered 532436626

No Description Available

$

$

Not available

310

Jonsered 532446636

No Description Available
(Superseded to 583586501)

$40.99

$

Usually ships in 3-10 days

0

311

Jonsered 532446637

No Description Available
(Superseded to 583586601)

$40.99

$

Usually ships in 3-10 days

0

319

Jonsered 532174662

No Description Available

$5.99

$

Usually ships in 3-10 days

0

338

Jonsered 532436640

No Description Available
(Superseded to 583510201)

$6.49

$

Usually ships in 3-10 days

0

339

Jonsered 532441288

No Description Available
(Superseded to 583510301)

$8.99

$

Usually ships in 3-10 days

0

340

Jonsered 532440931

No Description Available

$9.49

$

Usually ships in 3-10 days

0

341

Jonsered 532436638

No Description Available
(Superseded to 583510101)

$4.99

$

Usually ships in 3-10 days

0

342

Jonsered 532435938

No Description Available
(Superseded to 583507901)

$8.99

$

Usually ships in 3-10 days

0

343

Jonsered 532440749

No Description Available

$

$

Not available

344

Jonsered 532438970

No Description Available
(Superseded to 583536701)

$133.99

$

Usually ships in 3-10 days

0

345

Jonsered 532440639

No Description Available
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0
