LT 2316 CM A2 (960510022-00) - Husqvarna Lawn Tractor (2011-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

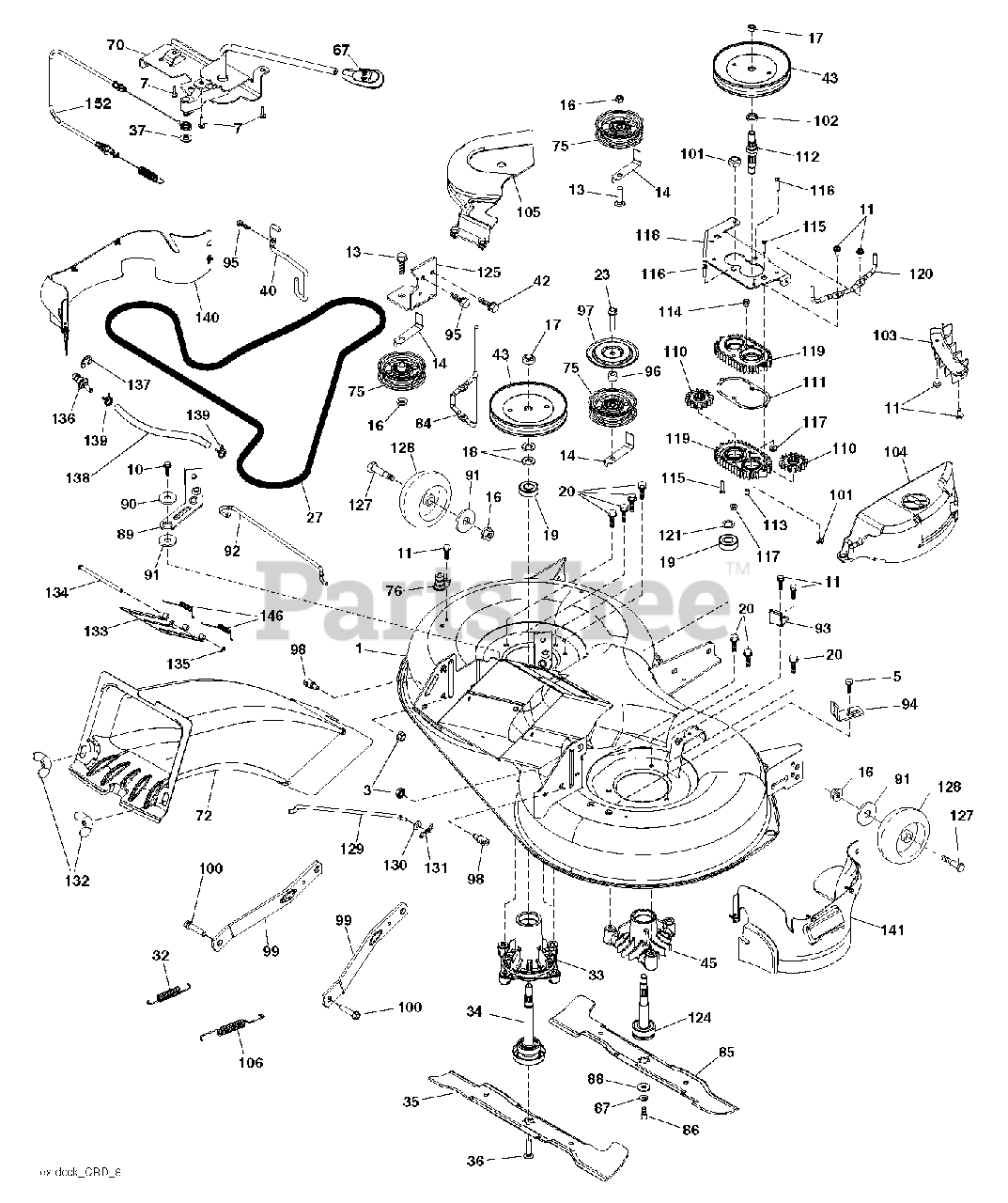

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Electrolux/AYP 532438052

No Description Available

$

$

Not available

3

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

5

Electrolux/AYP 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

7

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

10

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

18

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

20

Electrolux/AYP 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532439726

BELT VBELT DRIVE
(Superseded to 583544901)

$103.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 8

0

33

Electrolux/AYP 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

34

Electrolux/AYP 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

35

Electrolux/AYP 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

40

Electrolux/AYP 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 7

0

42

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

43

Electrolux/AYP 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 532137152

HOUSING.MANDREL

$40.99

$

In Stock, only 1 left!

0

67

Electrolux/AYP 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

70

Electrolux/AYP 532198332

CLUTCH.ASM.MANUAL.LT.TEX

$80.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 532436658

CHUTE UPPER *SUBS/2*

$

$

Not available

75

Electrolux/AYP 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

76

Electrolux/AYP 532439640

12 BARB.DECK.WASHOUT.
(Superseded to 583544301)

$8.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

$7.99

$

In Stock, Qty 14

0

85

Electrolux/AYP 532427985

BLADE.3N1.RH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

87

Electrolux/AYP 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 532140296

WASHER.BLADE

$6.99

$

In Stock, only 1 left!

0

89

Electrolux/AYP 532438124

ARM.BRAKE.97.LH
(Superseded to 583527001)

$24.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 12

0

91

Electrolux/AYP 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 532436993

ROD ROD BRAKE
(Superseded to 583514701)

$12.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 532438125

ARM.BRAKE.97.RH
(Superseded to 583527101)

$26.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

96

Electrolux/AYP 532400271

NO LONGER AVAILABLE
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 532182061

NO LONGER AVAILABLE
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Electrolux/AYP 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Electrolux/AYP 873680900

NUT.CROWNLOCK.9/16 -18.UNC
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

103

Electrolux/AYP 532436992

GUARD GUARD FRONT VEN
(Superseded to 583514601)

$8.99

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 532441479

NO LONGER AVAILABLE

$

$

Not available

105

Electrolux/AYP 532441478

No Description Available

$

$

Not available

106

Electrolux/AYP 532193216

SPRING.BRAKE.RETURN.38"

$7.49

$

In Stock, only 1 left!

0

110

Electrolux/AYP 532415356

RP.CRD.GEAR.OUTPUT
(Superseded to 583354601)

$13.99

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 532436979

GASKET GASKET GEARCAS
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 532436988

No Description Available

$

$

Not available

113

Electrolux/AYP 532438533

PLUG PLUG OIL
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 532438534

VALVE VALVE RELIEF
(Superseded to 583533101)

$12.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 818031016

Screw
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 872110414

BOLT.CARIGE.SS.1/4-20X1.75GR5
(Superseded to 583611101)

$

$

Not available

117

Electrolux/AYP 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

118

Electrolux/AYP 532436989

ARM ARM CLUTCHING
(Superseded to 583514401)

$20.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 532438166

GEARCASE GEARCASE SUB
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 532436991

BRACKET KEEPER BELT R
(Superseded to 583514501)

$9.99

$

In Stock, only 1 left!

0

121

Electrolux/AYP 532436985

Washer, .687ID X 1OD X 062 THK
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Electrolux/AYP 532436986

Mandrel Shaft, Non/Greaseable
(Superseded to 583514201)

$43.99

$

In Stock, only 4 left!

0

125

Electrolux/AYP 532440420

Bracket
(Superseded to 583548001)

$40.99

$

Usually ships in 3-10 days

0

127

Electrolux/AYP 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

128

Electrolux/AYP 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

129

Electrolux/AYP 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, Qty 6

0

130

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

131

Electrolux/AYP 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

132

Electrolux/AYP 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

133

Electrolux/AYP 532435538

DOOR
(Superseded to 583505301)

$13.99

$

Usually ships in 3-10 days

0

134

Electrolux/AYP 532435861

Hinge Pin
(Superseded to 583507401)

$8.99

$

Usually ships in 3-10 days

0

135

Electrolux/AYP 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

136

Electrolux/AYP 532439639

PLUG WASHOUT PORT HOO
(Superseded to 583544201)

$6.49

$

Usually ships in 3-10 days

0

137

Electrolux/AYP 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

138

Electrolux/AYP 532440743

HOSE.3/8ID.BULK.12"

$4.99

$

Usually ships in 3-10 days

0

139

Electrolux/AYP 532440742

HOSE.3/8.CLAMP (2 2)

$

$

Not available

140

Electrolux/AYP 532439473

No Description Available

$

$

Not available

141

Electrolux/AYP 532448529

No Description Available
(Superseded to 583596401)

$84.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 532439928

No Description Available

$

$

Not available

152

Electrolux/AYP 532440488

CABLE CABLE CLUTCH MA
(Superseded to 583548401)

$37.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 19

0

--

Electrolux/AYP 532442093

No Description Available

$

$

Not available
